Particle collection
The treatment section captures airborne dust from the passing airflow. Electronic collection uses charged collection surfaces to retain particles carried into the unit.
PRODUCT GALLERYST

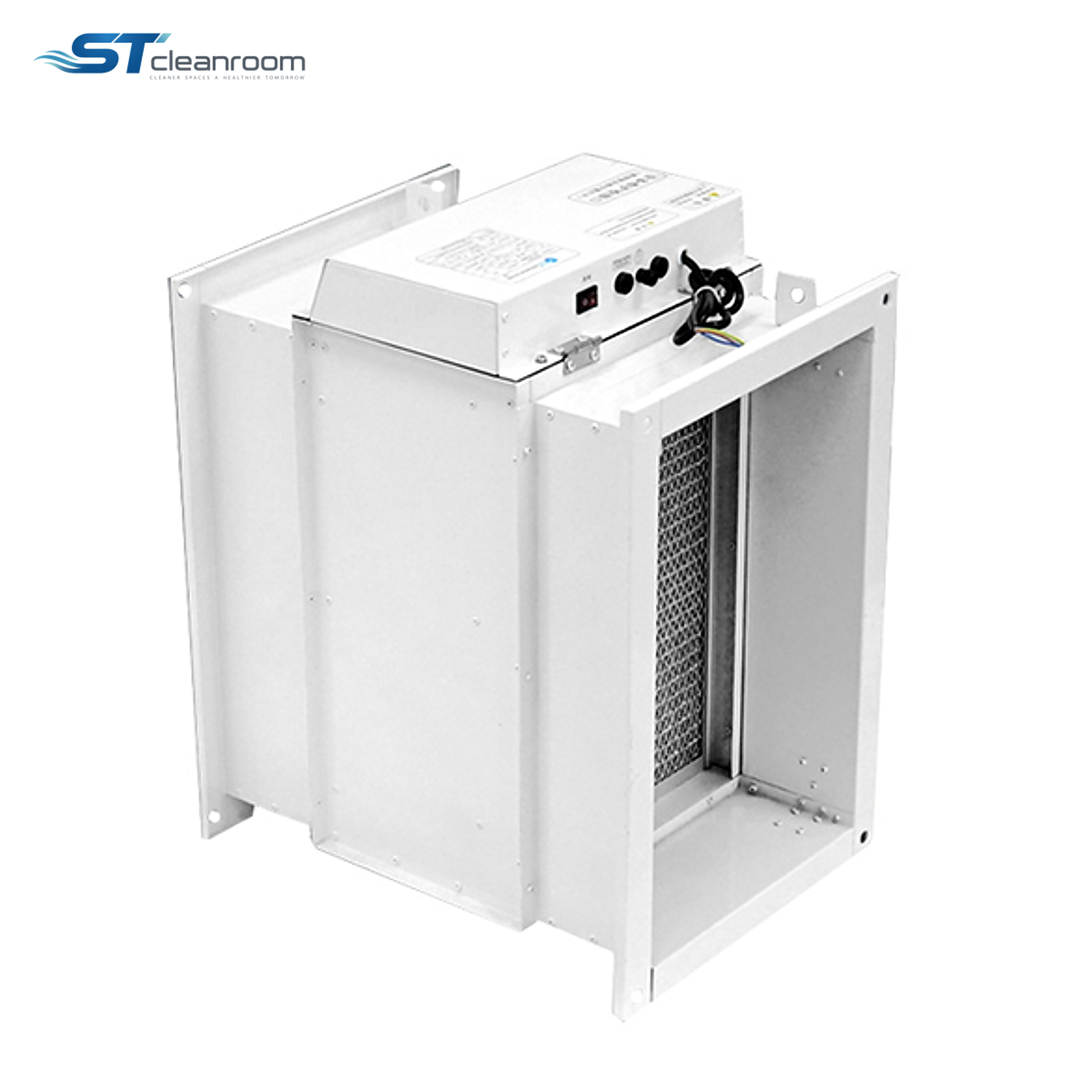

Product view
Air Purification Equipment
Duct Air Conditioning Purifier
Product specifications
| Brand | ST |
|---|---|
| Material | Spray-coated steel / Stainless steel |
| Dimensions | Custom |
| Air resistance | <20 Pa |
| PM2.5 purification rate | ≥98% |
| Bacterial removal rate | ≥99% |
| Ozone | ≤0.002 mg/m³ |
| Control method | Interlinked control |
| Installation | Suspended / Embedded installation |
| Expansion options | Activated carbon / Photocatalysis / Ionization |
| Power supply | 220 V / 50 Hz |
| Customization | Available |
Specifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Duct Air Conditioning Purifier removes fine airborne particles and reduces bacteria as air passes through the air-conditioning system. Installing the treatment section in the duct allows the system airflow to be cleaned before it reaches the served rooms, helping reduce dust carried into production and occupied areas.
The housing is sized to suit the duct connection and available installation space. Interlinked control coordinates operation with the air-conditioning system, while activated carbon, photocatalytic and ionization options allow the treatment configuration to address the project’s air-quality needs.
FEATURES
Air treatment integrated with the ventilation system
Antibacterial treatment
The air-treatment section reduces bacteria in the passing air, supporting routine air hygiene within the served areas.
Coordinated operation
Interlinked control allows the purifier and the air-conditioning system to operate together, keeping treatment coordinated with system use.
Custom-fit installation
Suspended and embedded mounting options accommodate the installation layout. Custom housing dimensions help match the duct interface and available space.
TREATMENT OPTIONS
Choose stages for particles and gaseous contaminants
Activated carbon
An activated-carbon stage adsorbs suitable gaseous contaminants and odors. Select the media for the target gas, including formaldehyde where that treatment is required.
Photocatalysis and ionization
Photocatalytic or ionization stages can be included to extend the treatment arrangement according to the air-quality task.
Filtration stages
Pre-filtration and HEPA filtration can be incorporated into the selected configuration to collect different particle sizes. Match the complete arrangement to the available fan pressure and design airflow.

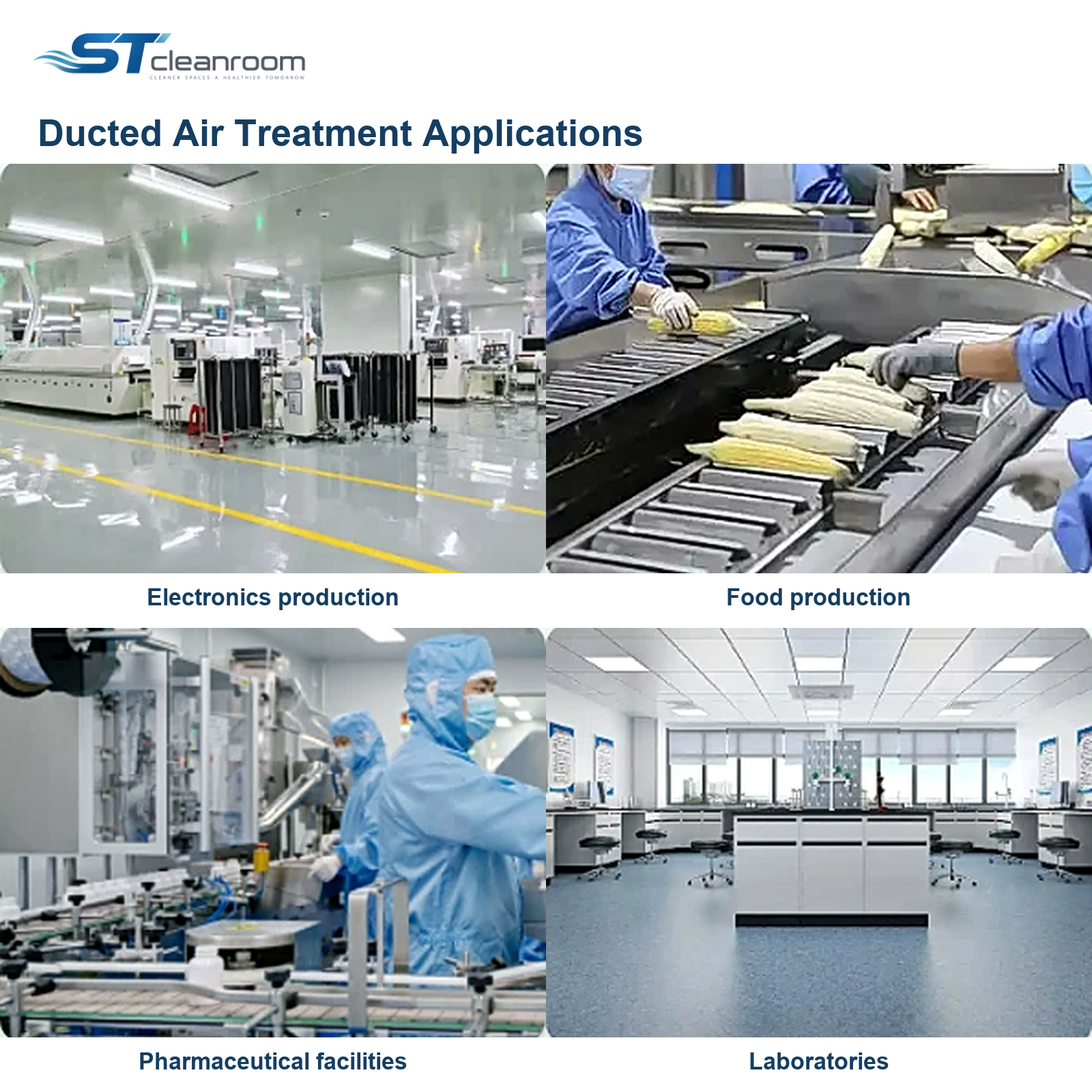

APPLICATIONS
Air-conditioning systems serving working areas
Electronics factories
Treat ducted air serving assembly and production areas to reduce airborne dust carried toward exposed components and work surfaces.
Food factories
Add air treatment to ventilation serving processing and packing areas as part of the facility’s air-hygiene arrangements.
Pharmaceutical facilities
Use within the room’s designed air-handling arrangement to reduce particulate and bacterial loading in the air passing through the unit.
Laboratories
Treat general room supply or recirculation air where the ventilation design includes duct-mounted purification.
INSTALLATION AND UPKEEP
Allow for airflow and service access
Size the complete arrangement
Match the duct opening, design airflow and treatment stages to the fan system. Include the selected additional filters when assessing system resistance.
Provide maintenance access
Leave enough clearance to reach the collection and filter sections for cleaning or replacement without dismantling adjacent ductwork.
Coordinate the controls
Plan the interlinked connection with the air-conditioning controls and provide the specified electrical supply at the installation location.
