Treat the load before unpacking
Filtered air jets remove loose particles from accessible outer surfaces while the goods remain on their pallet.
PRODUCT GALLERYST

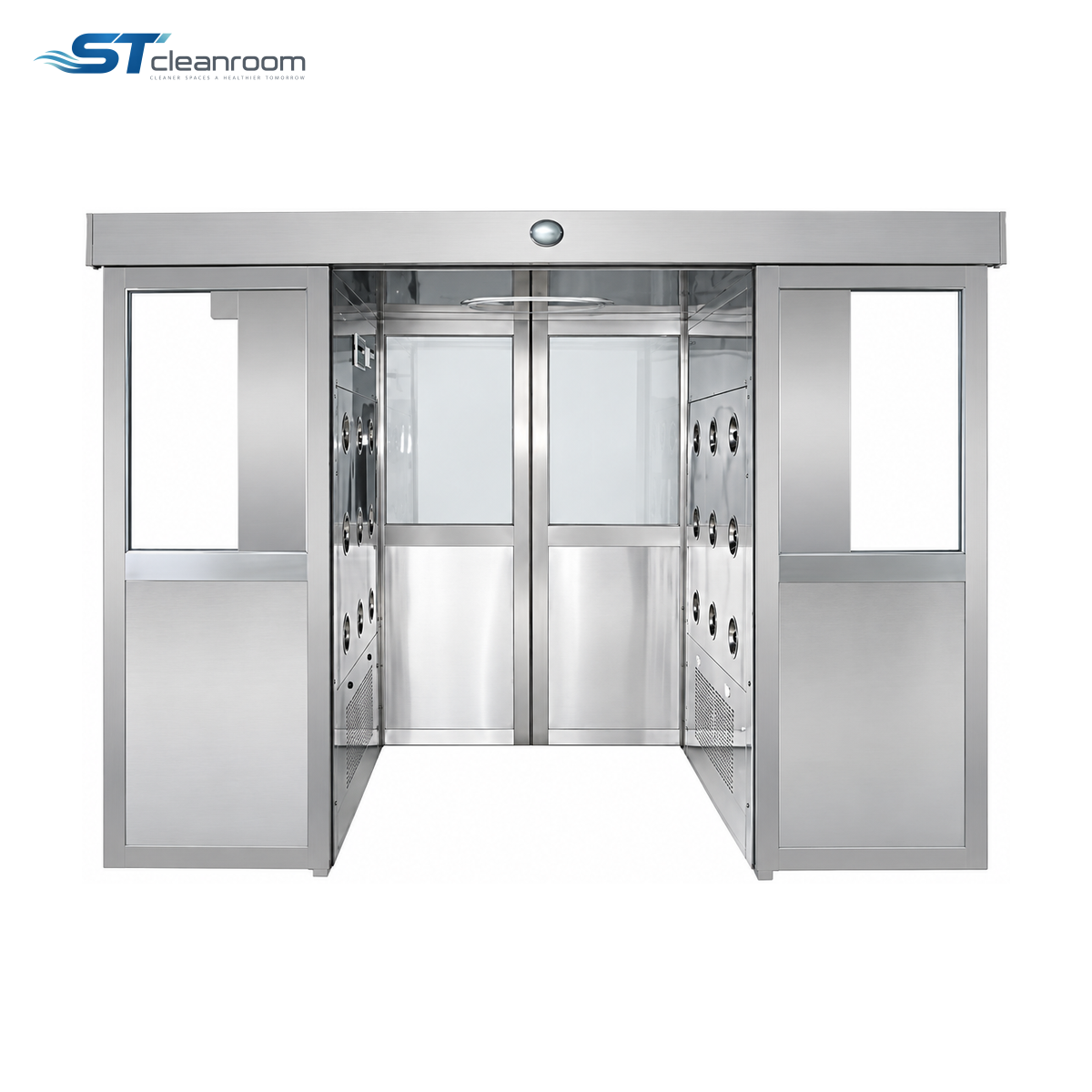

Product view
Cleanroom Equipment
Automatic Sliding Door Cargo Air Shower
Product specifications
| Brand | ST |
|---|---|
| Model | ST-PT4 |
| Material | Spray-coated steel / stainless steel |
| Pallet compatibility | 1200 × 1200 mm pallet |
| External size (W × D × H) | 2400 × 2000 × 2250 mm |
| Internal size (W × D × H) | 1800 × 2000 × 1960 mm |
| Filtration efficiency | 99.995% at 0.5 µm |
| Air velocity | 26 m/s ±10% |
| Standard functions | Electronic interlock; voice prompts; sensor-activated LED lighting |
| Cycle initiation | Sensor / manual / AGV |
| Power | 2.2 kW |
| Power supply | 380 V / 50 Hz or 220 V / 50 Hz |
| Weight | 250 kg/m |
| Size customization | Custom dimensions available |
Specifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Automatic Sliding Door Cargo Air Shower blows loose dust from the outside of palletized loads before they reach clean production. Treating exposed surfaces at the entrance helps keep particles collected during storage and handling away from open components and clean packing work.
Powered door leaves move sideways, so operators can guide loads through without opening heavy doors by hand. Electronic interlocking keeps the two ends from opening together, making dust removal a controlled step between the receiving area and production.
PRACTICAL BENEFITS
Prepare incoming loads for clean work
Keep hands available for handling
Automatic door movement lets the operator concentrate on guiding the load through the entrance.
Separate entry and exit
Interlocked doors avoid an open passage between the receiving and production sides during the transfer sequence.
APPLICATION ENVIRONMENTS
Entrances for palletized goods and equipment
Production receiving rooms
Remove exterior dust from incoming component containers before they are opened for clean assembly.
Equipment entry areas
Blow loose surface particles from compatible palletized equipment brought out of storage before it enters a clean work area.
AGV-served production entrances
Use AGV cycle initiation on a coordinated material route, with sufficient clearance for the vehicle and its load.
SELECTION GUIDE
Allow for the load and sliding-door movement
Passage and door travel
Account for load overhang, total height and handling equipment; keep the door travel and entrance approach clear.
Load orientation
Position the load so air jets can reach the surfaces requiring dust removal before the goods leave the chamber.
Material route and service access
Coordinate cycle initiation with the receiving process and retain access for filter maintenance and door servicing.
COMMON QUESTIONS
Door movement and surface treatment
How do the doors move?
The powered leaves slide sideways, keeping a swinging door leaf out of the loading approach; their travel area must remain clear.
What surfaces does the air shower treat?
It acts on exposed outer surfaces of the load. Dust inside closed packaging is not reached by the air jets.
