ISO Class 4–8 rooms with stainless interiors
Form food-preparation, pharmaceutical and other controlled-room partitions where the selected stainless finish suits regular cleaning.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels

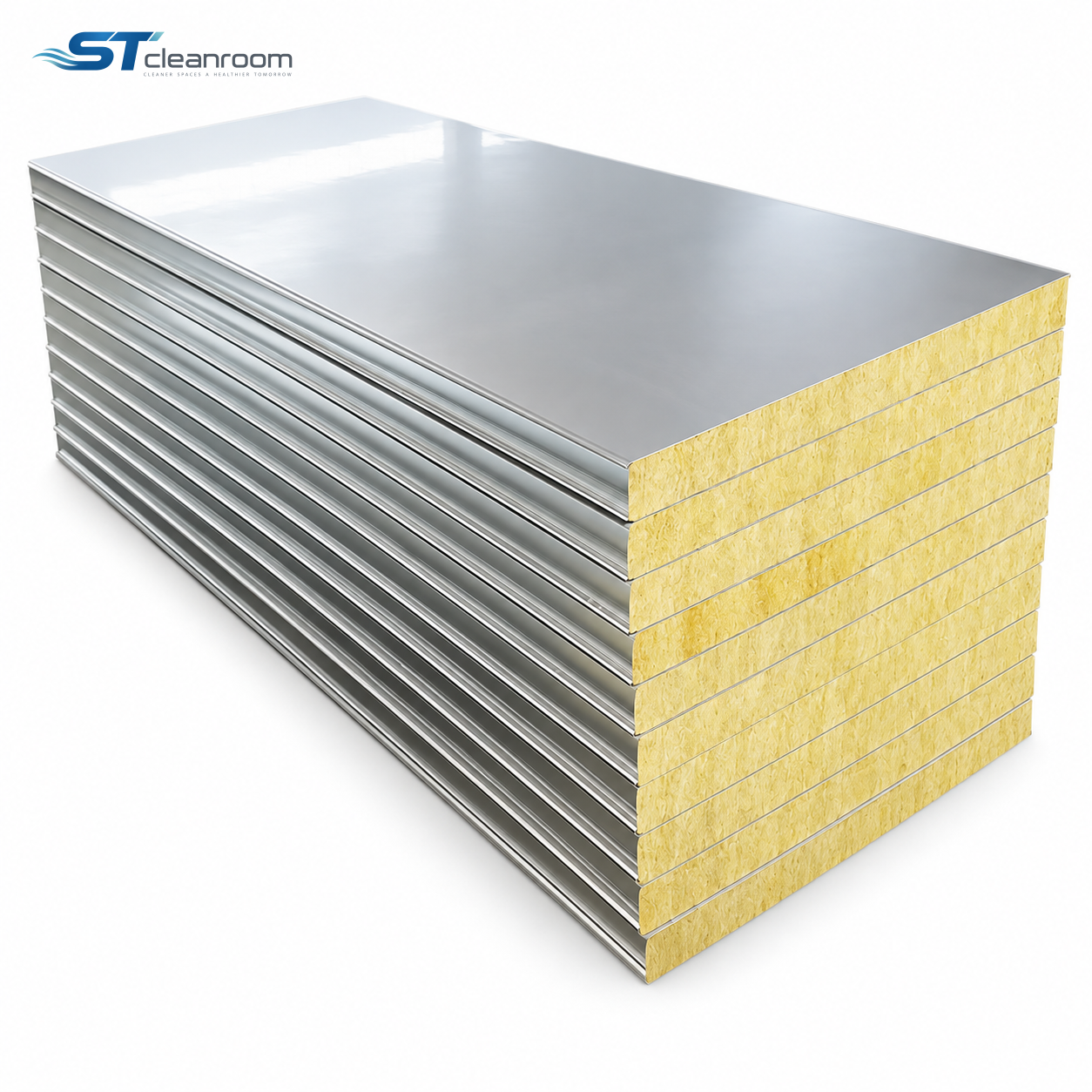

Machine-Made Stainless Steel Rock Wool Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Manufacturing method | Machine-made |
| Facing material | SS304 stainless steel |
| Core material | Rock wool |
| Effective panel width | 1,150 mm |
| Panel thickness | 75 / 100 / 150 mm |
| Joint type | Tongue-and-groove |
| Surface coating | PE / SMP / PVDF |
| Maximum panel length | 11,800 mm |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.

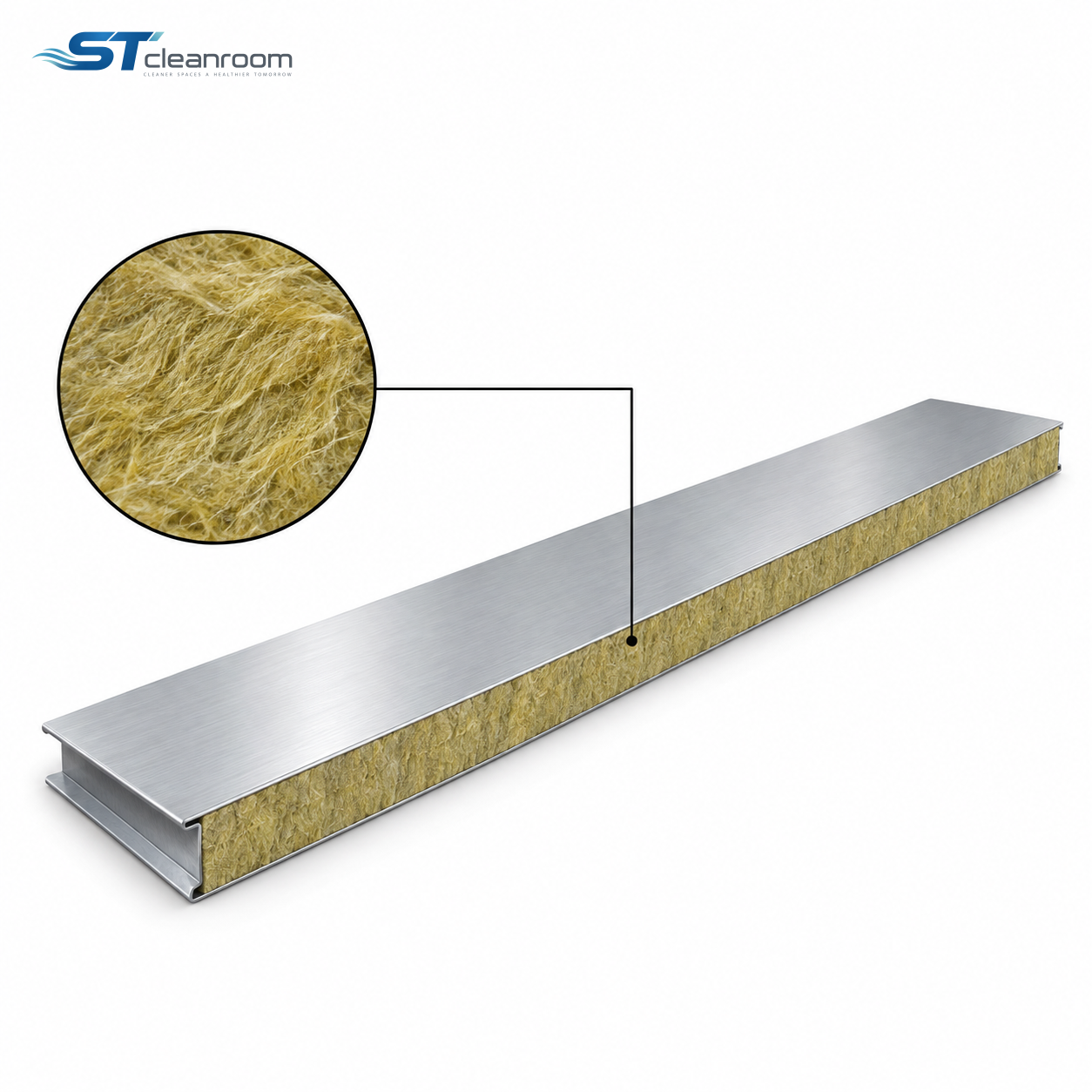

Machine-Made Stainless Steel Rock Wool Sandwich Panel covers a rock wool core with SS304 faces, providing an exposed stainless-steel room surface and insulation in one wall panel. The machine-made construction uses profiled joints to connect adjoining wall sections.
Use the panels where the room specification calls for a stainless interior and separation between temperature conditions. Matching trims carry the surface around doors, corners and service openings; supported ceiling infill completes the enclosure above.
APPLICATION ENVIRONMENTS
Where the panel fits
Insulated ceilings and production-room boundaries
Continue the stainless-faced enclosure across supported ceilings and boundaries between spaces with different temperature conditions.
PRACTICAL BENEFITS
What the construction helps solve
Cleaning surface and insulation combined
The stainless face supplies the exposed finish while the wool core limits heat transfer through the partition.
Joined wall runs
Profiled panel edges connect adjacent sections; compatible seals complete the junction.
Continuity around openings
Matching trims close cut edges and finish the stainless surface at corners and penetrations.
CHOOSING THE ASSEMBLY
Selection
Grade and cleaning method
Check the steel grade, finish and seal materials against the cleaning products.
Effective coverage
Use effective panel width to calculate coverage, including opening and end details.
PRODUCT QUESTIONS
Common questions
Does a stainless face remove the need to review cleaning chemicals?
No. Cleaning compatibility depends on the steel grade, finish and adjoining seals.
Why consider the core when the surface is stainless steel?
The stainless face provides the exposed surface; the rock wool core contributes insulation.
