ISO Class 4–8 production and preparation rooms
Create finished partitions around controlled workspaces with coatings and seals suited to their cleaning procedure.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels
Machine-Made Magnesium Oxysulfate Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Magnesium oxysulfate |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 100 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.

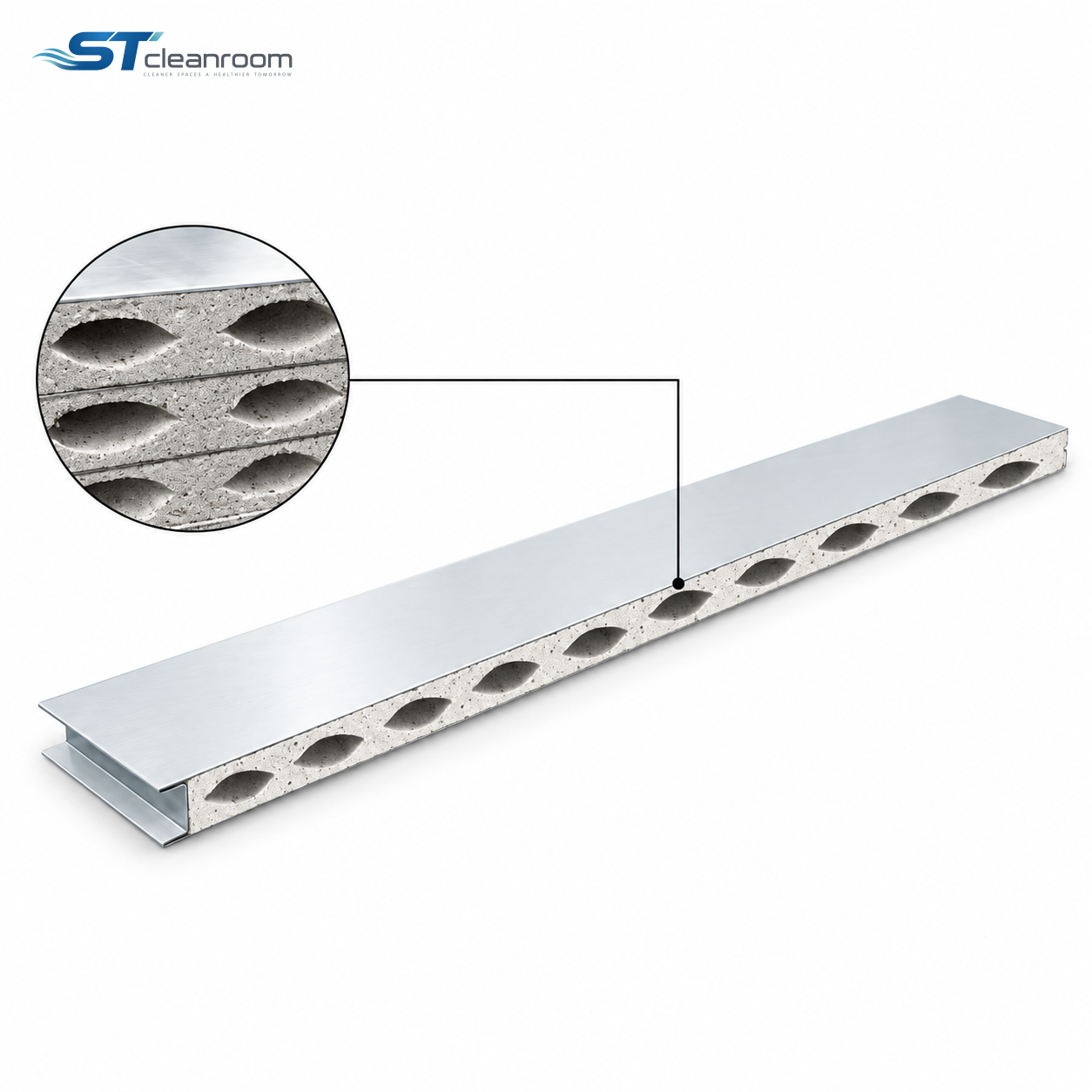

Machine-Made Magnesium Oxysulfate Sandwich Panel bonds a magnesium oxysulfate core between metal faces to form interior partitions and supported ceiling infill. The mineral core supports the faces, and the metal skins provide the room's exposed finish.
Cut-to-order lengths help the enclosure follow the production-room layout. Interlocking profiles, closed ends and sealed service openings keep the core covered during routine cleaning and make the wall connections part of the completed enclosure.
APPLICATION ENVIRONMENTS
Where the panel fits
Internal corridors and supported ceilings
Carry the same mineral-core construction through room boundaries and ceiling infill, with coordinated end closures.
PRACTICAL BENEFITS
What the construction helps solve
Supported room surfaces
The bonded core and faces form a finished partition component instead of separate lining layers.
Coordinated wall lengths
Scheduled panel lengths follow the room elevations and locations of doors and services.
Finished edges during cleaning
Matching closures cover core edges at the base, wall ends and service cuts.
CHOOSING THE ASSEMBLY
Selection
Panel joints and openings
Coordinate the interlocking profiles, corner trims and service openings with the wall and ceiling layout.
Exposure at the wall base
Choose wall-base finishes and seals for the cleaning and exposure conditions.
PRODUCT QUESTIONS
Common questions
Is this the same as hollow glass-magnesium panel?
No. These are different core constructions; specify the required material explicitly.
How are adjoining panels connected?
Interlocking edge profiles join adjacent panels; matching trims and seals close the perimeter and cut edges.
