Refrigeration dehumidification
The refrigeration circuit removes moisture when room humidity rises above the selected operating range.
PRODUCT GALLERYST

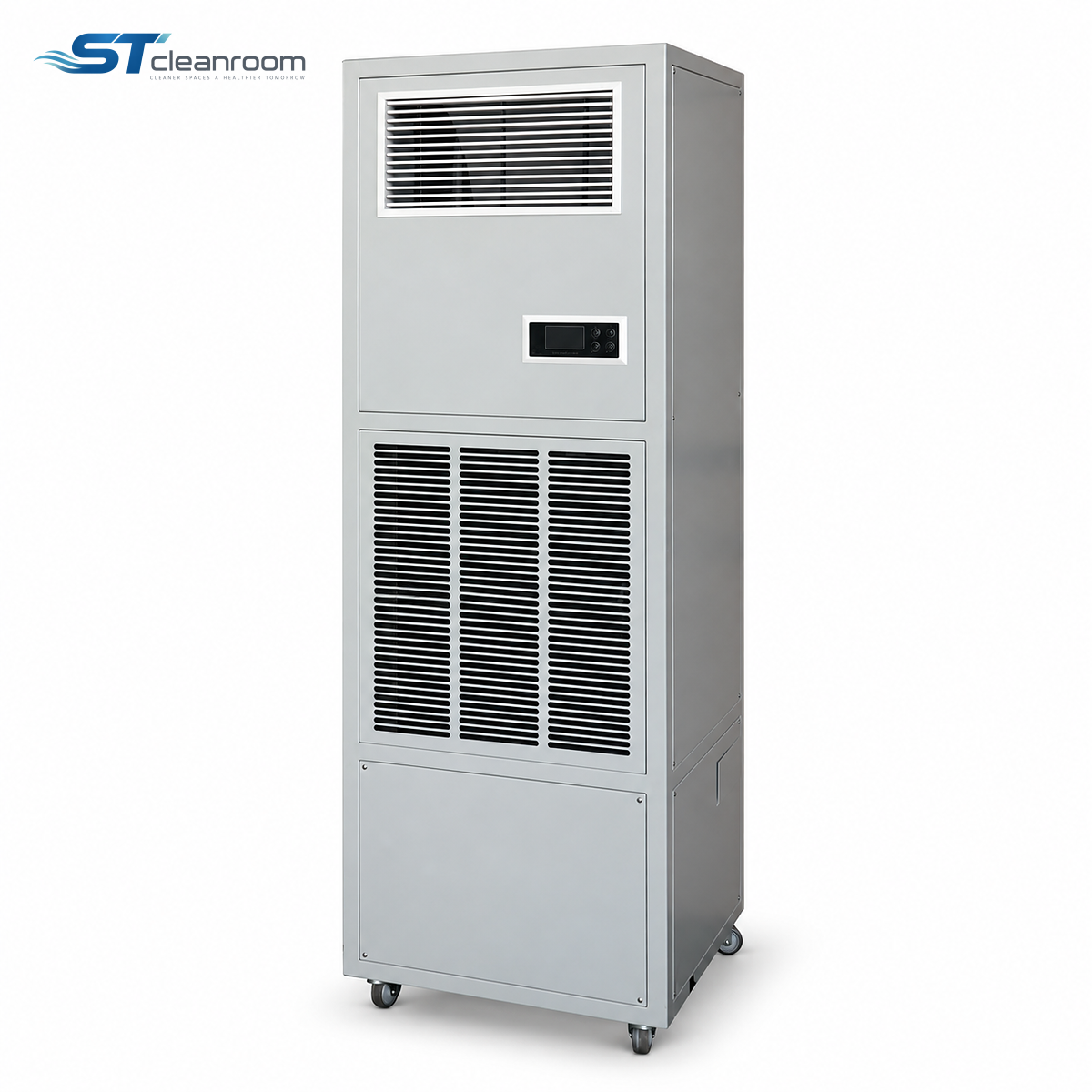

Product view
Humidifiers & Dehumidifiers
Medium Humidifier-Dehumidifier Unit
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-HCU-02 |
| Dehumidification capacity | 120 L/day |
| Humidification capacity | 120 L/day |
| Suggested area | 60–130 m² |
| Airflow | 1,200 m³/h |
| Rated power | 1.7 kW dehumidifying / 0.5 kW humidifying |
| Power supply | 220 V / 50 Hz |
| Water filling | Fixed water connection or manual fill |
| Low-water protection | Yes |
| RS485 communication | Available |
| Weight | 95 kg |
| Dimensions | 610 × 560 × 1,880 mm |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Medium Humidifier-Dehumidifier Unit provides both humidification and dehumidification for a room with more demand than the compact combined model. It keeps the two seasonal functions in one installed cabinet and reduces the need to reposition separate equipment.
Both nominal moisture capacities double to 120 L/day and airflow increases to 1,200 m³/h. The cabinet becomes substantially taller; its separate humidifying and dehumidifying power figures help plan the electrical supply for the active operating mode.
TWO-WAY HUMIDITY CONTROL
One cabinet for seasonal drying and dehumidification
Wet-media humidification
The humidification section adds moisture without a visible spray when the room becomes too dry.
Automatic changeover
The controller monitors room humidity and selects the required operating mode without moving portable units in and out.
APPLICATION ENVIRONMENTS
Year-round humidity adjustment in a taller cabinet
Records and storage rooms
Choose this version where seasonal moisture loads exceed the compact unit but one installed cabinet is preferred.
Controlled workrooms
Both functions remain at the same operating position as conditions change between dry and humid periods.
SELECTION
Allow for the increased cabinet height
Check the equipment route and standing space
The taller cabinet needs different installation clearance from the compact version, including access for water service.
Use the power figure for each active mode
Humidifying and dehumidifying have separate electrical demands; plan the circuit using the actual operating duties.
