Ultrasonic atomization
The atomizing module produces fine mist for rapid moisture addition in industrial and storage spaces.
PRODUCT GALLERYST

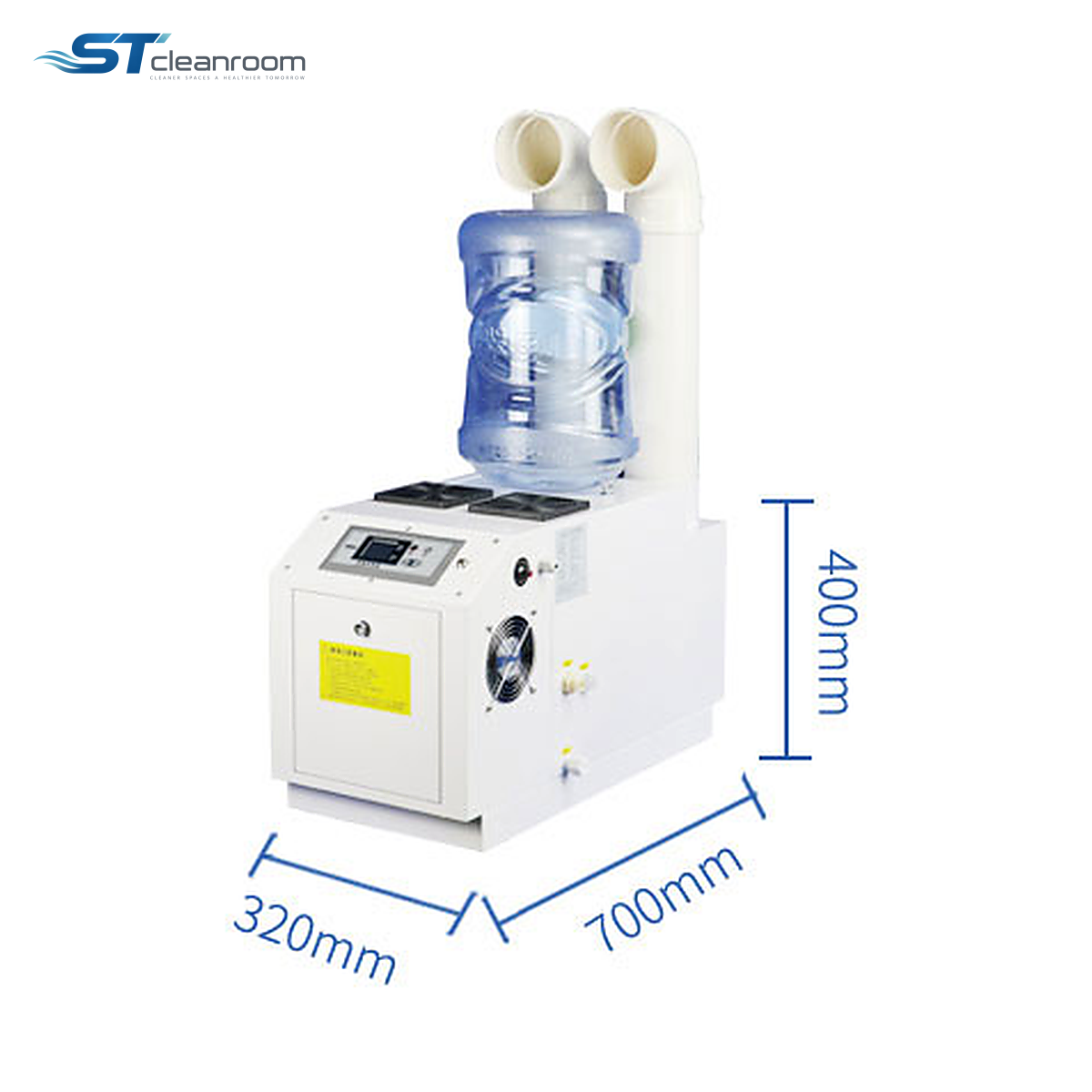

Product view
Humidifiers & Dehumidifiers
Industrial Ultrasonic Humidifier – 27 kg/h
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-UH-04 |
| Atomization capacity | 27 kg/h |
| Mist outlets | 2 × Ø110 mm |
| Rated power | 1,200 W |
| Power supply | 220 V / 50 Hz |
| Control | Manual or automatic |
| Water supply | Water pipe or external tank |
| Suggested area at 3 m height | 80–120 m² |
| Weight | 29 kg |
| Dimensions without castors | 700 × 400 × 320 mm |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Ultrasonic Humidifier – 27 kg/h provides the intermediate moisture output in the two-outlet ultrasonic range. It suits a distribution arrangement needing more mist than the 18 kg/h version without selecting the highest-output unit in the same housing.
Two Ø110 mm outlets serve the chosen pipe routes. Rated input rises to 1,200 W with the 27 kg/h output, so capacity and electrical provision must be considered together even though the cabinet dimensions stay the same.
DIRECT MIST HUMIDIFICATION
Fast moisture delivery with automatic control
Three control modes
Humidity, timed-cycle and manual modes support automatic setpoint control or process-based operation.
Protected airflow path
The delayed fan function clears residual mist from the cabinet after atomization stops.
APPLICATION ENVIRONMENTS
For rooms that can accept direct mist
Textile, printing and general workshops
The 27 kg/h atomization rate provides rapid humidification where dry air affects production materials.
Produce and cultivation rooms
Direct mist supports moisture-sensitive storage or growing rooms when water quality and condensation are controlled.
Dust-control processes
The unit can supply mist to compatible ducting or distribution points where airborne dust needs local moisture.
SELECTION
Confirm water quality and mist distribution
Match output to the room
The reference coverage is 80–120 m² at a 3 m room height; size from the actual moisture load and air-change rate.
Plan the distribution pipe
Select outlet quantity and pipe layout so mist disperses before contacting products, walls or equipment.
Control mineral carryover
Use suitable feed-water treatment and regular cleaning where mineral deposits or hygiene are critical.
