Refrigeration dehumidification
The refrigeration circuit removes moisture when room humidity rises above the selected operating range.
PRODUCT GALLERYST

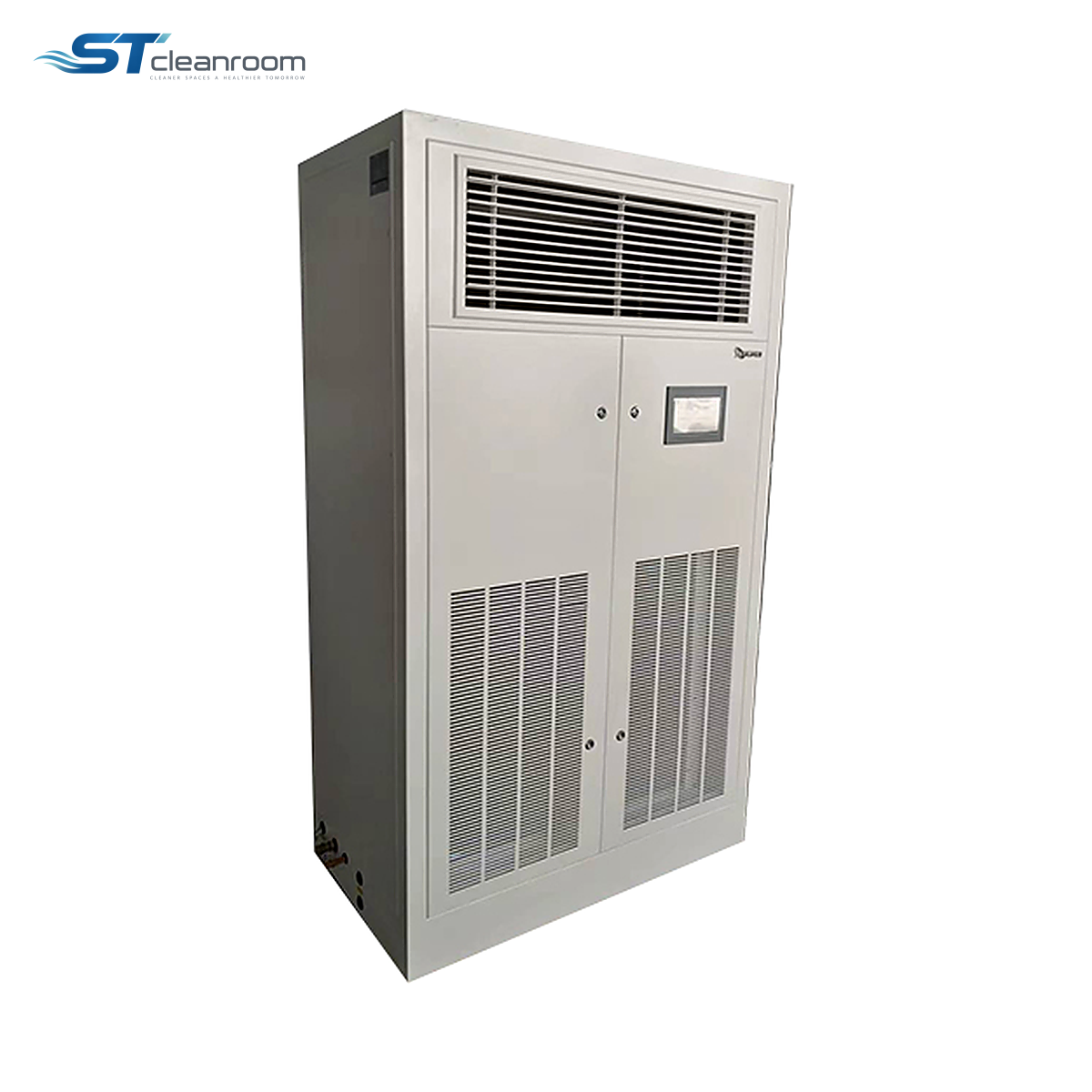

Product view
Humidifiers & Dehumidifiers
Industrial Humidifier-Dehumidifier Unit – 480 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-HCU-06 |
| Dehumidification capacity | 480 L/day |
| Humidification capacity | 25 L/h |
| Suggested area | 450–650 m² |
| Airflow | 6,000 m³/h |
| Rated power | 11 kW dehumidifying / 0.68 kW humidifying |
| Power supply | 380 V / 50 Hz |
| Water filling | Fixed water connection or manual fill |
| Low-water protection | Yes |
| RS485 communication | Available |
| Weight | 320 kg |
| Dimensions | 1,250 × 650 × 1,900 mm |
| Humidity control range | 45–65% RH, ±5% |
| Standard airflow arrangement | Front supply / front return |
| Humidification method | Wet-media, no visible mist |
| Operating temperature | 5–42°C |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Humidifier-Dehumidifier Unit – 480 L/day offers the highest moisture-removal capacity in this combined-unit group without enlarging the cabinet used by the 360 L/day model. It is a choice for a heavier moisture load where the installed floor position is already constrained.
The 480 L/day removal rating, 25 L/h addition rate and 6,000 m³/h airflow increase the room-treatment capacity together. The higher electrical input and weight also change the installation requirements, although the external dimensions remain the same.
TWO-WAY HUMIDITY CONTROL
One cabinet for seasonal drying and dehumidification
Wet-media humidification
The humidification section adds moisture without a visible spray when the room becomes too dry.
Automatic changeover
The controller monitors room humidity and selects the required operating mode without moving portable units in and out.
APPLICATION ENVIRONMENTS
Higher room-treatment duty in an unchanged cabinet size
High-load material stores
Choose this version when the required removal duty exceeds the smaller unit that shares its external dimensions.
Production rooms with changing moisture conditions
The increased circulation and moisture addition support a greater seasonal duty from the same planned equipment position.
SELECTION
Check the higher duty behind the same enclosure
Review electrical and handling provisions
The cabinet dimensions match the lower-output version, but rated input and weight are higher.
Maintain access for air and water service
Keep the front supply and return clear and provide access to the chosen filling and condensate arrangements.
