Refrigeration dehumidification
The refrigeration circuit removes moisture when room humidity rises above the selected operating range.
PRODUCT GALLERYST
Product view
Humidifiers & Dehumidifiers

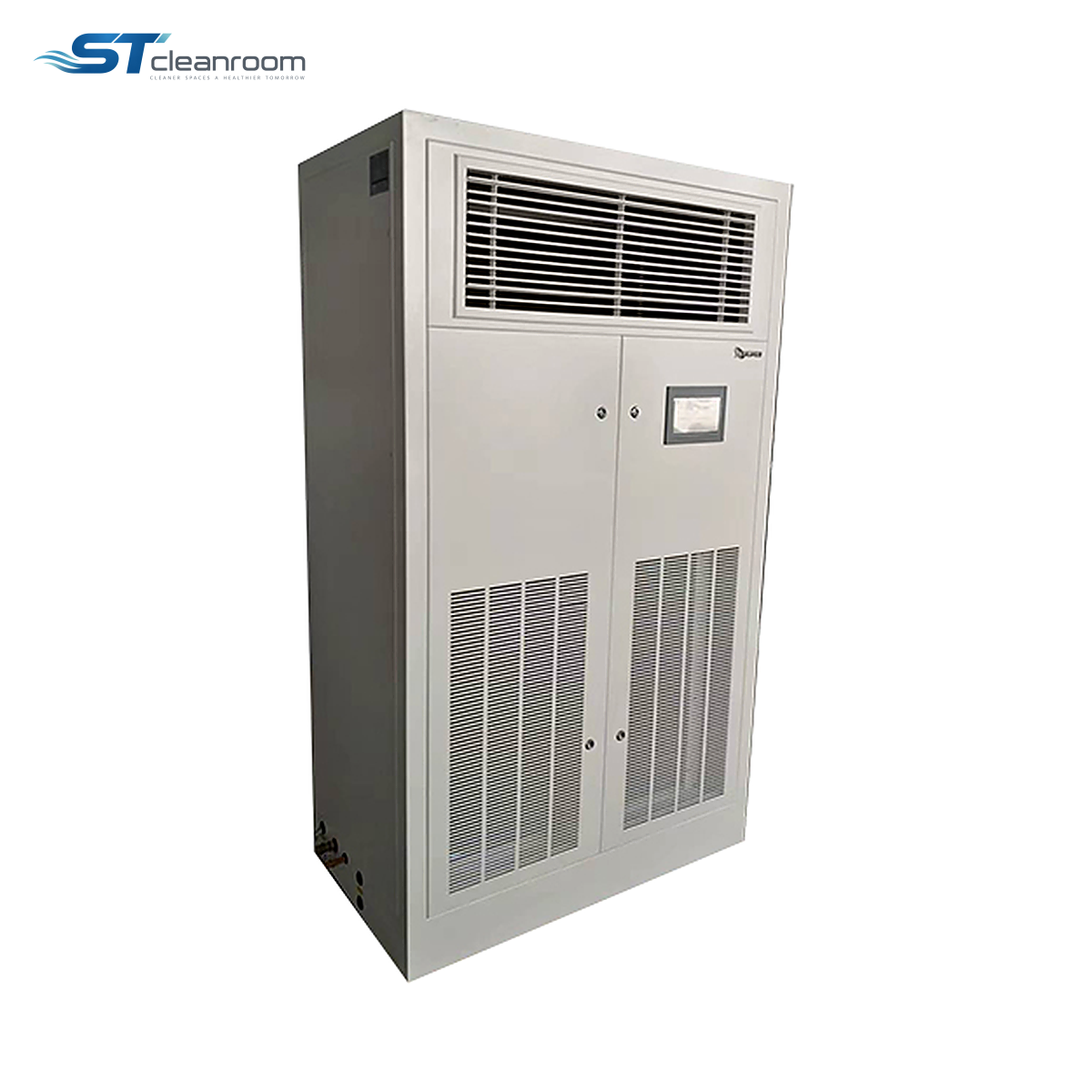

Industrial Humidifier-Dehumidifier Unit – 360 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-HCU-05 |
| Dehumidification capacity | 360 L/day |
| Humidification capacity | 20 L/h |
| Suggested area | 250–400 m² |
| Airflow | 4,200 m³/h |
| Rated power | 7.8 kW dehumidifying / 0.68 kW humidifying |
| Power supply | 380 V / 50 Hz |
| Water filling | Fixed water connection or manual fill |
| Low-water protection | Yes |
| RS485 communication | Available |
| Weight | 260 kg |
| Dimensions | 1,250 × 650 × 1,900 mm |
| Humidity control range | 45–65% RH, ±5% |
| Standard airflow arrangement | Front supply / front return |
| Humidification method | Wet-media, no visible mist |
| Operating temperature | 5–42°C |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Humidifier-Dehumidifier Unit – 360 L/day handles larger seasonal changes in room moisture while keeping humidification and dehumidification under one controller. It reduces the coordination required between two separate appliances serving the same storage or process space.
Compared with the 240 L/day unit, removal increases to 360 L/day and moisture addition to 20 L/h, with 4,200 m³/h circulation. The wider cabinet requires a larger standing position, and its separate mode power ratings allow the supply to be planned around the higher dehumidifying load.
TWO-WAY HUMIDITY CONTROL
One cabinet for seasonal drying and dehumidification
Wet-media humidification
The humidification section adds moisture without a visible spray when the room becomes too dry.
Automatic changeover
The controller monitors room humidity and selects the required operating mode without moving portable units in and out.
APPLICATION ENVIRONMENTS
Two-way control for a greater room moisture load
Larger materials stores
The wider cabinet serves a higher seasonal load where stock must remain accessible around a fixed treatment position.
Industrial workrooms
Use the increased circulation where a smaller combined unit cannot process enough room air for the required moisture duty.
SELECTION
Allow for the wider industrial cabinet
Plan installation for this unit's weight
The larger cabinet changes handling, floor-space and service arrangements compared with the narrower industrial version.
Evaluate wet and dry periods separately
The two capacity figures use different time units; compare each operating duty with the corresponding room load.
