ST-IDH-019
The 720 L/day model circulates 8,000 m³/h and has a lower maximum input and net weight than the larger option.
PRODUCT GALLERYST

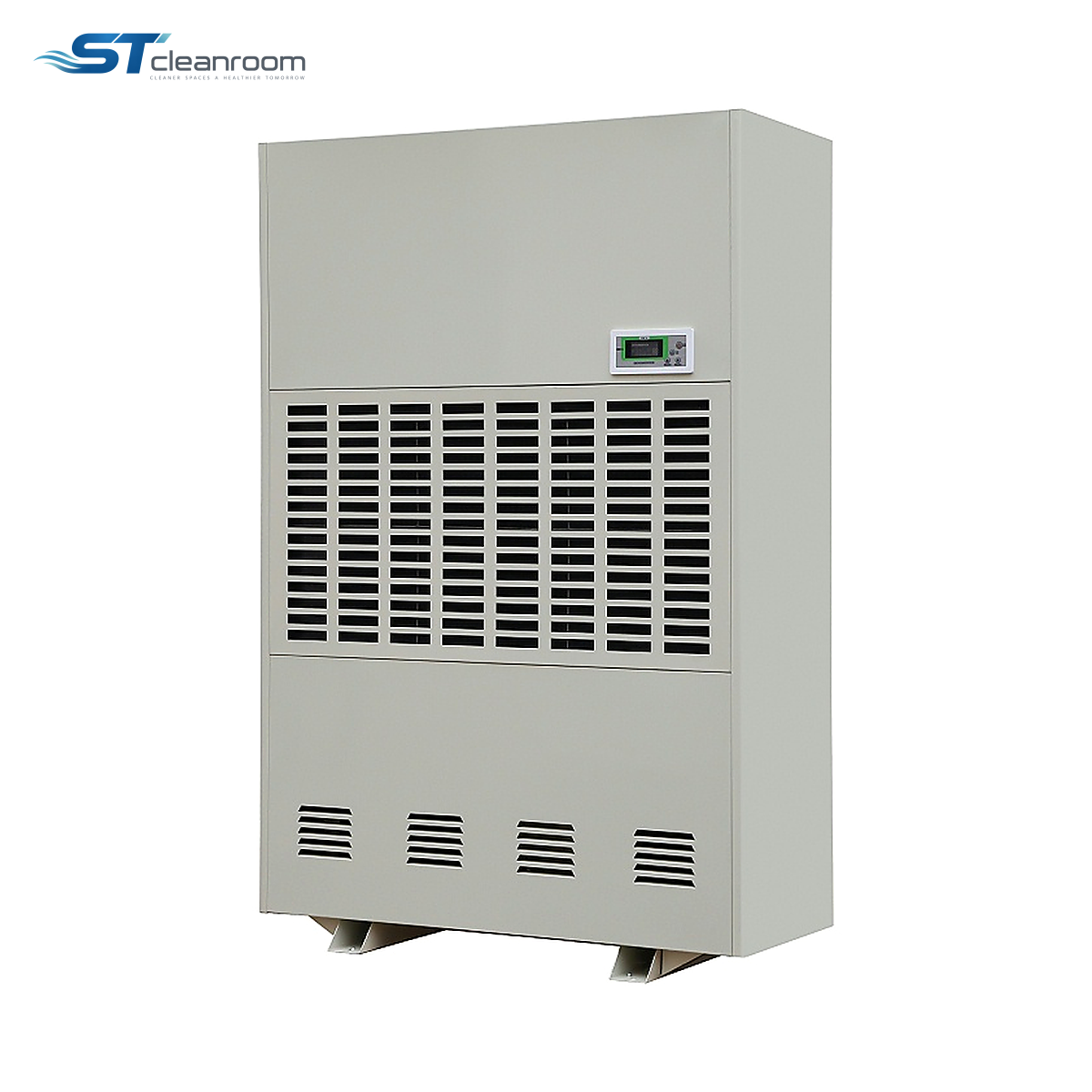

Product view
Humidifiers & Dehumidifiers
Industrial Dehumidifier Series – 720 L/day to 960 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-IDH-019 to ST-IDH-020 |
| Public model range | ST-IDH-019 to ST-IDH-020 |
| Control | Microcomputer automatic humidity control |
| Defrost | Automatic |
| Timer | 0–24 hours |
| Drainage | Continuous hose drainage |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Dehumidifier Series – 720 L/day to 960 L/day addresses large moisture loads with high-volume room-air circulation. It is intended for planned industrial installations where a substantial power supply and condensate route are available.
The 960 L/day model increases both airflow and maximum input relative to the 720 L/day version. The listed size is the packing dimension, so it is useful for delivery planning and must not be mistaken for an installed cabinet measurement.
MODELS AND DIMENSIONS
Available capacity models
| Model | Dehumidification at 30°C / 80% RH (L/day) | Power supply | Maximum input power | Defrost | Humidity control and display | Airflow | Drainage | Operating temperature | Compressor protection | Packing dimensions W × D × H (mm) | Net weight | Suggested area at 2.6 m height (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-IDH-019 | 720 L/day | 3N~380V~/50Hz | 15000w | Automatic | Microcomputer control with LED display | 8000m3/h | Water tank or continuous hose drainage | 5-38℃ | 3-minute delay protection | 1500 × 800 × 2050 | 320kg | 650-950 |
| ST-IDH-020 | 960 L/day | 380V~/50Hzthree-phase five-wire | 22000w | Automatic | Microcomputer control with LED display | 10000m3/h | Water tank or continuous hose drainage | 5-38℃ | 3-minute delay protection | 1500 × 800 × 2050 | 415kg | 900-1200 |
Dehumidification capacity is rated at the test condition stated in the table; actual removal changes with room temperature and humidity.
MODEL DIFFERENCES
Which configuration fits the task
ST-IDH-020
The 960 L/day model raises circulation to 10,000 m³/h; its 22 kW maximum input and 415 kg weight materially change power and handling requirements.
MOISTURE REMOVAL
Automatic control for persistently humid rooms
Refrigeration drying
Moist air is cooled below its dew point so condensed water can be drained away continuously.
Automatic defrost
The defrost cycle supports operation at the stated lower room temperatures without unmanaged frost buildup.
Continuous drainage
A hose connection removes collected water without routine tank emptying during fixed installations.
APPLICATION ENVIRONMENTS
High-volume drying from a planned industrial position
Large stockholding rooms
The high circulation range serves moisture removal around larger storage areas with a clear path back to the unit.
Large production spaces
Use a dedicated equipment position where the electrical supply and condensate arrangements suit the selected industrial model.
SELECTION
Plan delivery, power and condensate handling
Keep packing size separate from installed size
The dimensional row is a packing measurement; use it for delivery planning rather than treating it as a confirmed cabinet clearance.
Compare the larger model's service load
Higher circulation and removal also bring greater maximum input and weight; check these with the site installation provisions.
