ST-IDH-013
The 216 L/day model has the lowest input and airflow of this cabinet group, for the lower calculated load.
PRODUCT GALLERYST

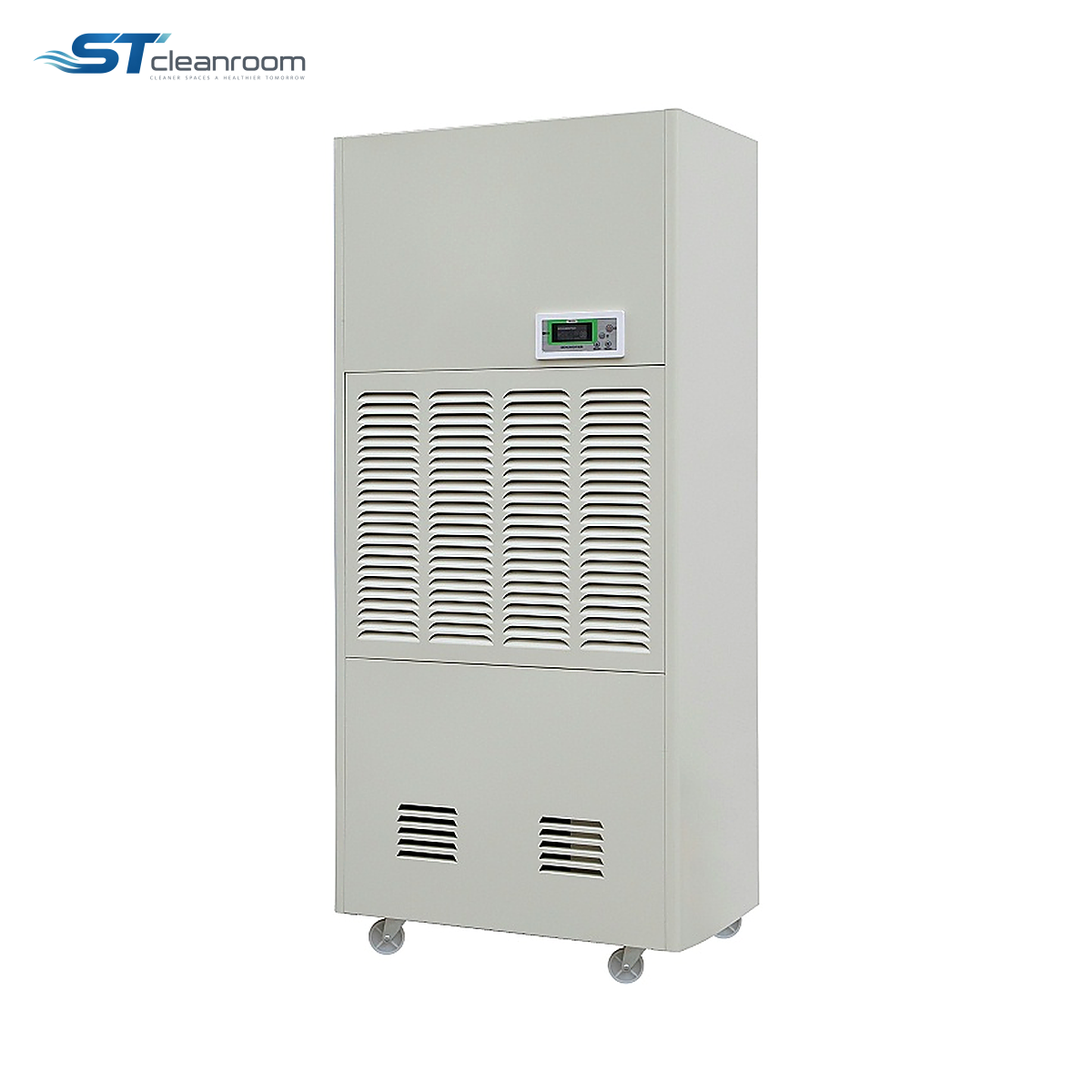

Product view
Humidifiers & Dehumidifiers
Industrial Dehumidifier Series – 216 L/day to 288 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-IDH-013 to ST-IDH-015 |
| Public model range | ST-IDH-013 to ST-IDH-015 |
| Control | Microcomputer automatic humidity control |
| Defrost | Automatic |
| Timer | 0–24 hours |
| Drainage | Continuous hose drainage |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Dehumidifier Series – 216 L/day to 288 L/day provides three moisture-removal levels in a shared cabinet for production and storage areas. The design allows the installer to choose capacity without redrawing the equipment position for each model.
Removal, circulation and electrical input rise together across the range. This matters where more humid air must be processed each day; changing the unit capacity cannot replace a clear return-air path around stock and machinery.
MODELS AND DIMENSIONS
Available capacity models
| Model | Dehumidification at 30°C / 80% RH (L/day) | Power supply | Rated input / current (W/A) | Defrost | Drainage | Refrigerant / charge | Airflow (m³/h) | Operating temperature (°C) | Noise | Net weight (kg) | Dimensions W × D × H (mm) | Packing dimensions W × D × H (mm) | Suggested area at 2.6 m height (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-IDH-013 | 216 | 3N~380V~/50Hz | 4200/8.4 | Automatic | Continuous hose drainageØ16 | R22/2000g | 2200 | 5-38 | <65dB | 135 | 750 × 465 × 1690 | 885 × 585 × 1750 | 180-280 |
| ST-IDH-014 | 240 | 3N~380V~/50Hz | 4500/9.0 | Automatic | Continuous hose drainageØ16 | R22/2100g | 2400 | 5-38 | <65dB | 140 | 750 × 465 × 1690 | 885 × 585 × 1750 | 190-300 |
| ST-IDH-015 | 288 | 3N~380V~/50Hz | 5000/10 | Automatic | Continuous hose drainageØ16 | R22/2200g | 2600 | 5-38 | <65dB | 150 | 750 × 465 × 1690 | 885 × 585 × 1750 | 230-380 |
Dehumidification capacity is rated at the test condition stated in the table; actual removal changes with room temperature and humidity.
MODEL DIFFERENCES
Which configuration fits the task
ST-IDH-014
The 240 L/day option adds circulation and moisture removal without increasing the external dimensions.
ST-IDH-015
The 288 L/day version supplies the highest airflow in this group and carries the greatest input and weight.
MOISTURE REMOVAL
Automatic control for persistently humid rooms
Refrigeration drying
Moist air is cooled below its dew point so condensed water can be drained away continuously.
Automatic defrost
The defrost cycle supports operation at the stated lower room temperatures without unmanaged frost buildup.
Continuous drainage
A hose connection removes collected water without routine tank emptying during fixed installations.
APPLICATION ENVIRONMENTS
A shared cabinet for several industrial drying duties
Production stores
Choose a model for the moisture entering with materials and room air while keeping one planned equipment footprint.
Workshops with damp-air ingress
The capacity steps also change circulation, helping match the amount of air processed to the room duty.
SELECTION
Match the duty without changing the floor layout
Allow for the heavier capacity choices
External dimensions remain the same across the series, while weight and electrical demand rise.
Include room circulation in the load check
A model upgrade cannot overcome a return path blocked by stock; keep air moving between damp areas and the cabinet.
