ST-IDH-010
The 220 V model provides 168 L/day removal in the shallow cabinet where that electrical supply is available.
PRODUCT GALLERYST

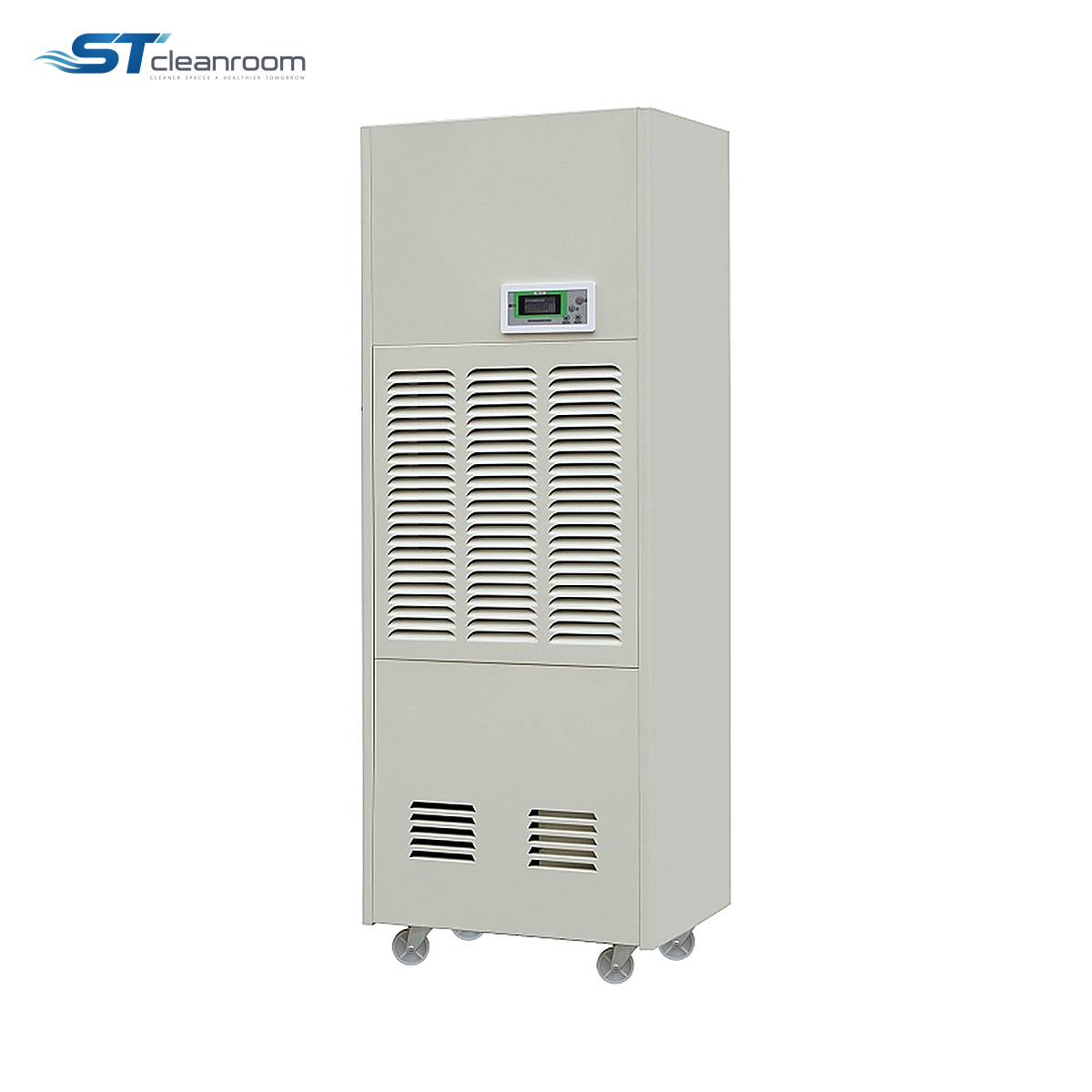

Product view
Humidifiers & Dehumidifiers
Industrial Dehumidifier Series – 168 L/day to 192 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-IDH-010 to ST-IDH-012 |
| Public model range | ST-IDH-010 to ST-IDH-012 |
| Control | Microcomputer automatic humidity control |
| Defrost | Automatic |
| Timer | 0–24 hours |
| Drainage | Continuous hose drainage |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Dehumidifier Series – 168 L/day to 192 L/day places industrial moisture removal in a comparatively shallow cabinet. It is useful beside an aisle or equipment line where a deeper floor-standing unit would restrict access.
The two 168 L/day versions retain the same airflow and dimensions but offer different power supplies. The 192 L/day version increases removal in the same cabinet, allowing an output choice without changing the standing space.
MODELS AND DIMENSIONS
Available capacity models
| Model | Dehumidification at 30°C / 80% RH (L/day) | Power supply | Rated input / current (W/A) | Defrost | Drainage | Refrigerant / charge | Airflow (m³/h) | Operating temperature (°C) | Noise | Net weight (kg) | Dimensions W × D × H (mm) | Packing dimensions W × D × H (mm) | Suggested area at 2.6 m height (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-IDH-010 | 168 | 220V~/50Hz | 2500/12 | Automatic | Continuous hose drainageØ16 | R22/1800g | 2000 | 5-38 | <65dB | 122 | 580 × 395 × 1590 | 740 × 530 × 1650 | 150-250 |
| ST-IDH-011 | 168 | 3N~380V~/50Hz | 2800/5.6 | Automatic | Continuous hose drainageØ16 | R22/1800g | 2000 | 5-38 | <65dB | 122 | 580 × 395 × 1590 | 740 × 530 × 1650 | 150-250 |
| ST-IDH-012 | 192 | 3N~380V~/50Hz | 3500/7.0 | Automatic | Continuous hose drainageØ16 | R22/1900g | 2000 | 5-38 | <65dB | 130 | 580 × 395 × 1590 | 740 × 530 × 1650 | 170-270 |
Dehumidification capacity is rated at the test condition stated in the table; actual removal changes with room temperature and humidity.
MODEL DIFFERENCES
Which configuration fits the task
ST-IDH-011
The 380 V version retains the same output and airflow; it is an electrical-installation alternative rather than an output upgrade.
ST-IDH-012
The 192 L/day option adds removal capacity without increasing the cabinet depth or nominal airflow.
MOISTURE REMOVAL
Automatic control for persistently humid rooms
Refrigeration drying
Moist air is cooled below its dew point so condensed water can be drained away continuously.
Automatic defrost
The defrost cycle supports operation at the stated lower room temperatures without unmanaged frost buildup.
Continuous drainage
A hose connection removes collected water without routine tank emptying during fixed installations.
APPLICATION ENVIRONMENTS
Moisture removal beside space-constrained working routes
Aisle-side storage positions
The shallow cabinet is an option where a deeper unit would project too far into the stock-handling route.
Equipment and production rooms
Select the required removal duty while retaining the common cabinet depth and room-air circulation arrangement.
SELECTION
Use depth, supply and removal rate as separate choices
Check the circuit before choosing the version
The two lower-capacity choices use different supplies while retaining the same moisture-removal duty.
Do not expect more circulation from the larger rating
The higher-removal option retains the listed airflow and cabinet dimensions; assess how air reaches it through the room.
