ST-IDH-006
The 168 L/day, 380 V configuration suits installations with the corresponding three-phase supply.
PRODUCT GALLERYST
Product view
Humidifiers & Dehumidifiers

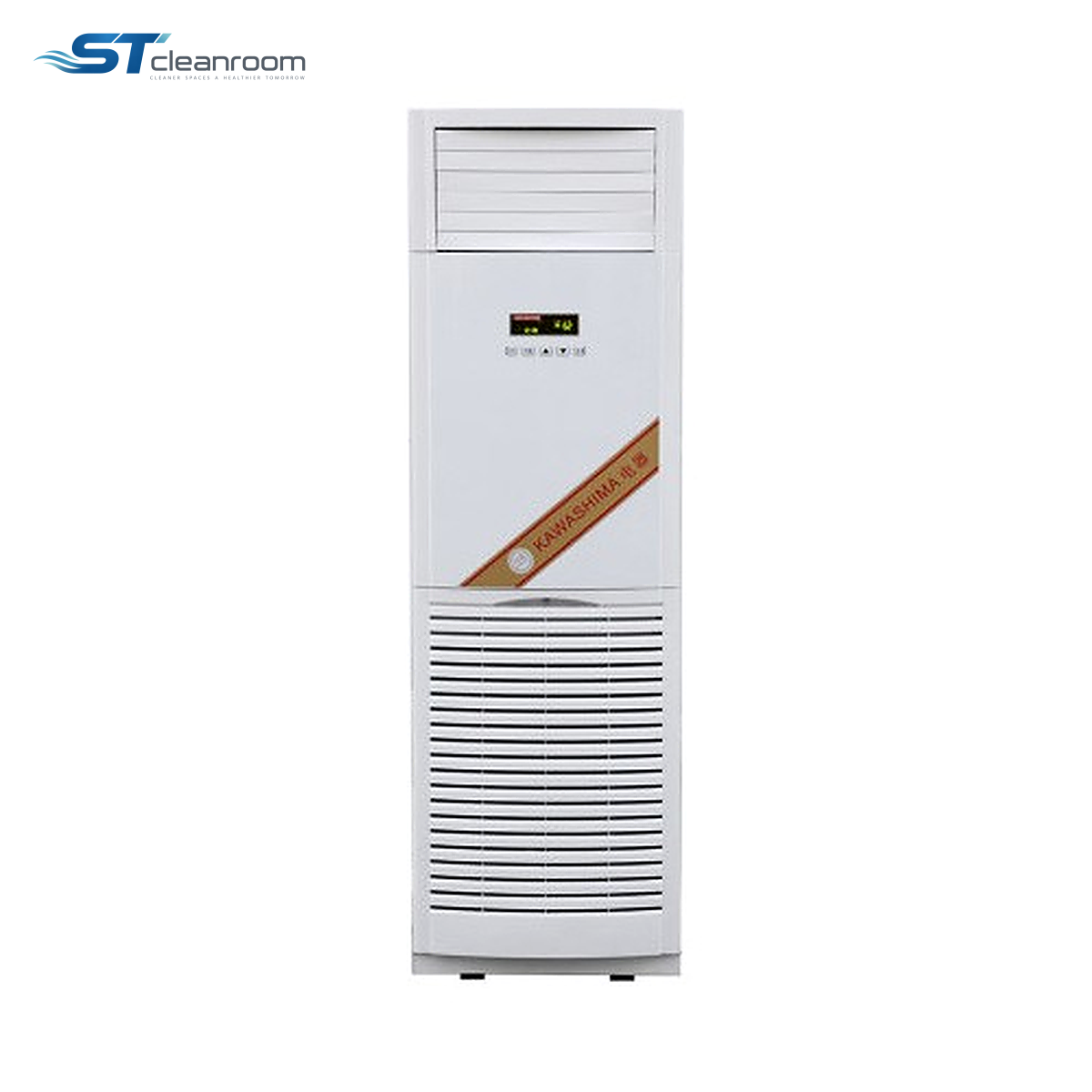

Industrial Dehumidifier Series – 168 L/day to 240 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-IDH-006 to ST-IDH-009 |
| Public model range | ST-IDH-006 to ST-IDH-009 |
| Control | Microcomputer automatic humidity control |
| Defrost | Automatic |
| Timer | 0–24 hours |
| Drainage | Continuous hose drainage |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Dehumidifier Series – 168 L/day to 240 L/day provides taller floor-standing units for industrial rooms with substantial moisture ingress from ventilation, doors or wet processes. Automatic control removes condensate as needed while the hose drain supports extended operation.
The two 168 L/day models primarily offer different electrical supplies. The 192 and 240 L/day choices increase removal, with the highest model also raising airflow substantially; the appropriate step depends on moisture load and circulation through the room.
MODELS AND DIMENSIONS
Available capacity models
| Model | Dehumidification at 30°C / 80% RH (L/day) | Power supply | Rated input / current (W/A) | Defrost | Humidity control and display | Drainage | Refrigerant / charge | Airflow (m³/h) | Operating temperature (°C) | Noise | Net weight (kg) | Dimensions W × D × H (mm) | Packing dimensions W × D × H (mm) | Suggested area at 2.6 m height (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-IDH-006 | 168 | 3N~380V~/50Hz | 2700/5.4 | Automatic | Microcomputer control with LED display; 30–95% RH setting | Continuous hose drainage | R22/2000g | 1800 | 5-38 | <65dB | 115 | 620 × 600 × 1930 | 700 × 700 × 2100 | 150-260 |
| ST-IDH-007 | 168 | 220V~/50Hz | 2500/12 | Automatic | Microcomputer control with LED display; 30–95% RH setting | Continuous hose drainage | R22/2000g | 1800 | 5-38 | <65dB | 115 | 620 × 600 × 1930 | 700 × 700 × 2100 | 150-260 |
| ST-IDH-008 | 192 | 3N~380V~/50Hz | 4100/8.2 | Automatic | Microcomputer control with LED display; 30–95% RH setting | Continuous hose drainage | R22/2300g | 1800 | 5-38 | <65dB | 125 | 620 × 600 × 1930 | 700 × 700 × 2100 | 170-280 |
| ST-IDH-009 | 240 | 3N~380V~/50Hz | 5000/10 | Automatic | Microcomputer control with LED display; 30–95% RH setting | Continuous hose drainage | R22/2400g | 3200 | 5-38 | <65dB | 145 | 620 × 600 × 1930 | 700 × 700 × 2100 | 190-300 |
Dehumidification capacity is rated at the test condition stated in the table; actual removal changes with room temperature and humidity.
MODEL DIFFERENCES
Which configuration fits the task
ST-IDH-007
The 168 L/day, 220 V configuration keeps the same removal and airflow but changes the circuit requirement.
ST-IDH-008
The 192 L/day model increases moisture removal while retaining 1,800 m³/h airflow and the common cabinet size.
ST-IDH-009
The 240 L/day model also raises circulation to 3,200 m³/h, handling a larger air volume along with the higher moisture load.
MOISTURE REMOVAL
Automatic control for persistently humid rooms
Refrigeration drying
Moist air is cooled below its dew point so condensed water can be drained away continuously.
Automatic defrost
The defrost cycle supports operation at the stated lower room temperatures without unmanaged frost buildup.
Continuous drainage
A hose connection removes collected water without routine tank emptying during fixed installations.
APPLICATION ENVIRONMENTS
Taller floor-standing units for industrial moisture loads
Industrial storage rooms
Use the shared cabinet range where doors and outdoor-air exchange create a recurring moisture load around stock.
Production areas
The upper-capacity option also moves more room air, which matters where damp air must reach the unit around equipment.
SELECTION
Choose electrical supply and airflow deliberately
Separate supply alternatives from output upgrades
The lower-capacity options include different electrical supplies; that choice does not itself add moisture removal.
Check the delivery and air path
Use the tall cabinet dimensions for positioning, then keep supply and return paths clear through the working area.
