ST-IDH-004
The 90 L/day option uses 1,000 m³/h circulation and the lower rated input for moderate room loads.
PRODUCT GALLERYST

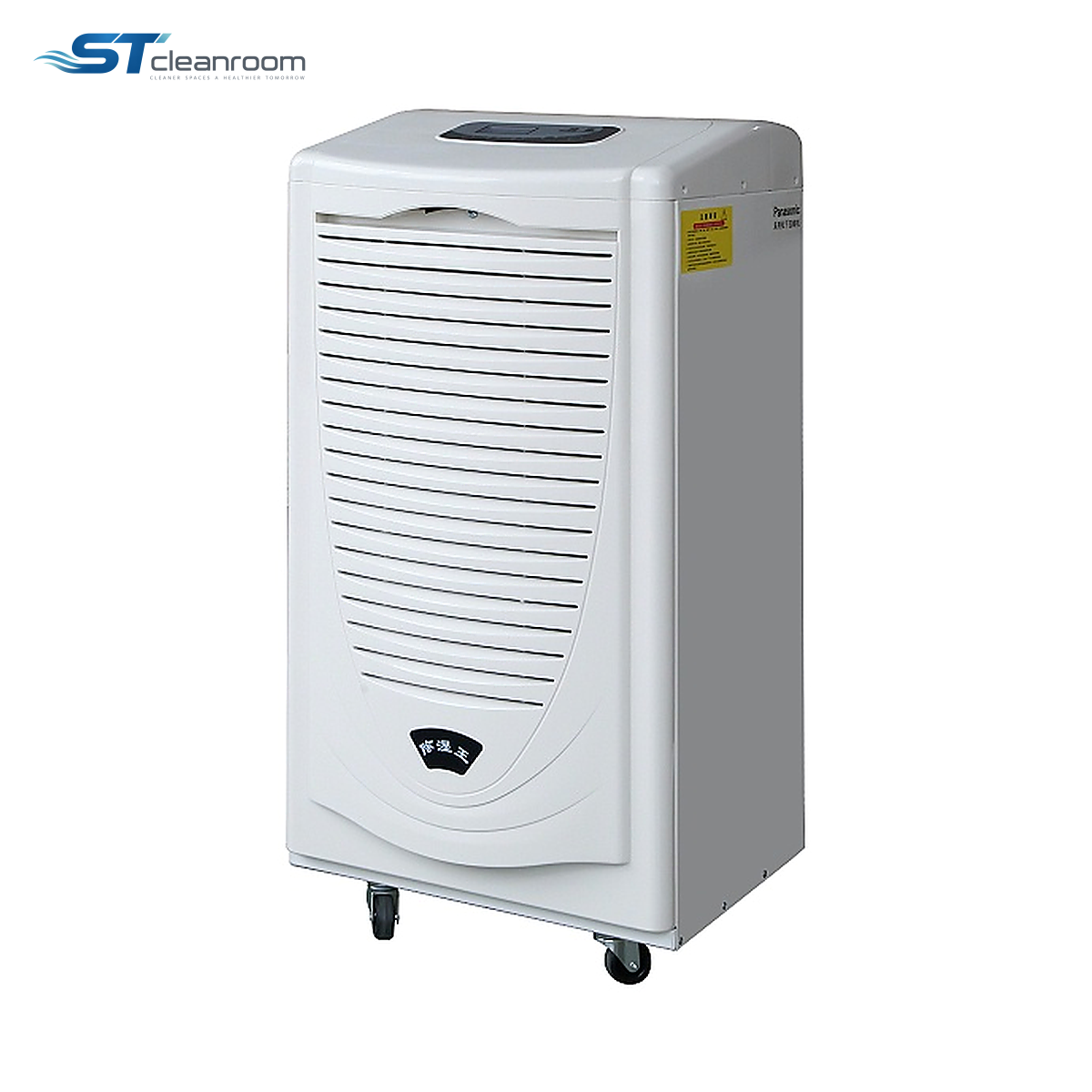

Product view
Humidifiers & Dehumidifiers
Industrial Dehumidifier Series – 90 L/day to 138 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-IDH-004 to ST-IDH-005 |
| Public model range | ST-IDH-004 to ST-IDH-005 |
| Control | Microcomputer automatic humidity control |
| Defrost | Automatic |
| Timer | 0–24 hours |
| Drainage | Continuous hose drainage |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Dehumidifier Series – 90 L/day to 138 L/day offers two capacities in one cabinet format for rooms needing controlled moisture removal. Continuous hose drainage carries condensate away while the LED control display lets staff check and set humidity at the unit.
The 138 L/day version increases both circulation and rated input relative to the 90 L/day model. It therefore provides a capacity upgrade within the same installation envelope, rather than a smaller or more economical electrical load.
MODELS AND DIMENSIONS
Available capacity models
| Model | Dehumidification at 30°C / 80% RH (L/day) | Power supply | Rated input / current (W/A) | Defrost | Humidity control and display | Drainage | Refrigerant / charge | Airflow (m³/h) | Operating temperature (°C) | Noise | Net weight (kg) | Dimensions W × D × H (mm) | Packing dimensions W × D × H (mm) | Suggested area at 2.6 m height (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-IDH-004 | 90 | 220V~/50Hz | 1500/7 | Automatic | Microcomputer control with LED display | Continuous hose drainage | R22/1000g | 1000 | 5-38 | <65dB | 57 | 480 × 400 × 985 | 548 × 468 × 1030 | 90-170 |
| ST-IDH-005 | 138 | 220V~/50Hz | 1700/8 | Automatic | Microcomputer control with LED display | Continuous hose drainage | R22/1400g | 1300 | 5-38 | <65dB | 60 | 480 × 400 × 985 | 548 × 468 × 1030 | 100-210 |
Dehumidification capacity is rated at the test condition stated in the table; actual removal changes with room temperature and humidity.
MODEL DIFFERENCES
Which configuration fits the task
ST-IDH-005
The 138 L/day option increases circulation to 1,300 m³/h in the same cabinet, with higher input and weight to accommodate.
MOISTURE REMOVAL
Automatic control for persistently humid rooms
Refrigeration drying
Moist air is cooled below its dew point so condensed water can be drained away continuously.
Automatic defrost
The defrost cycle supports operation at the stated lower room temperatures without unmanaged frost buildup.
Continuous drainage
A hose connection removes collected water without routine tank emptying during fixed installations.
APPLICATION ENVIRONMENTS
A compact standing position for damp-room control
Archives and records rooms
Automatic operation with hose drainage suits a fixed position where staff should not have to empty condensate repeatedly.
Work and equipment rooms
Choose between the two capacities where the cabinet space is fixed but moisture load and air circulation requirements differ.
SELECTION
Compare the two duties in the same enclosure
Include the electrical increase in the upgrade
The higher-removal version also increases circulation, input and weight even though external dimensions are unchanged.
Keep the display and drain accessible
Position the cabinet so staff can use the local humidity controls and inspect the continuous condensate route.
