ST-IDH-001
The 80 L/day model has the lowest circulation in this cabinet group, for the lower end of the moisture-load range.
PRODUCT GALLERYST

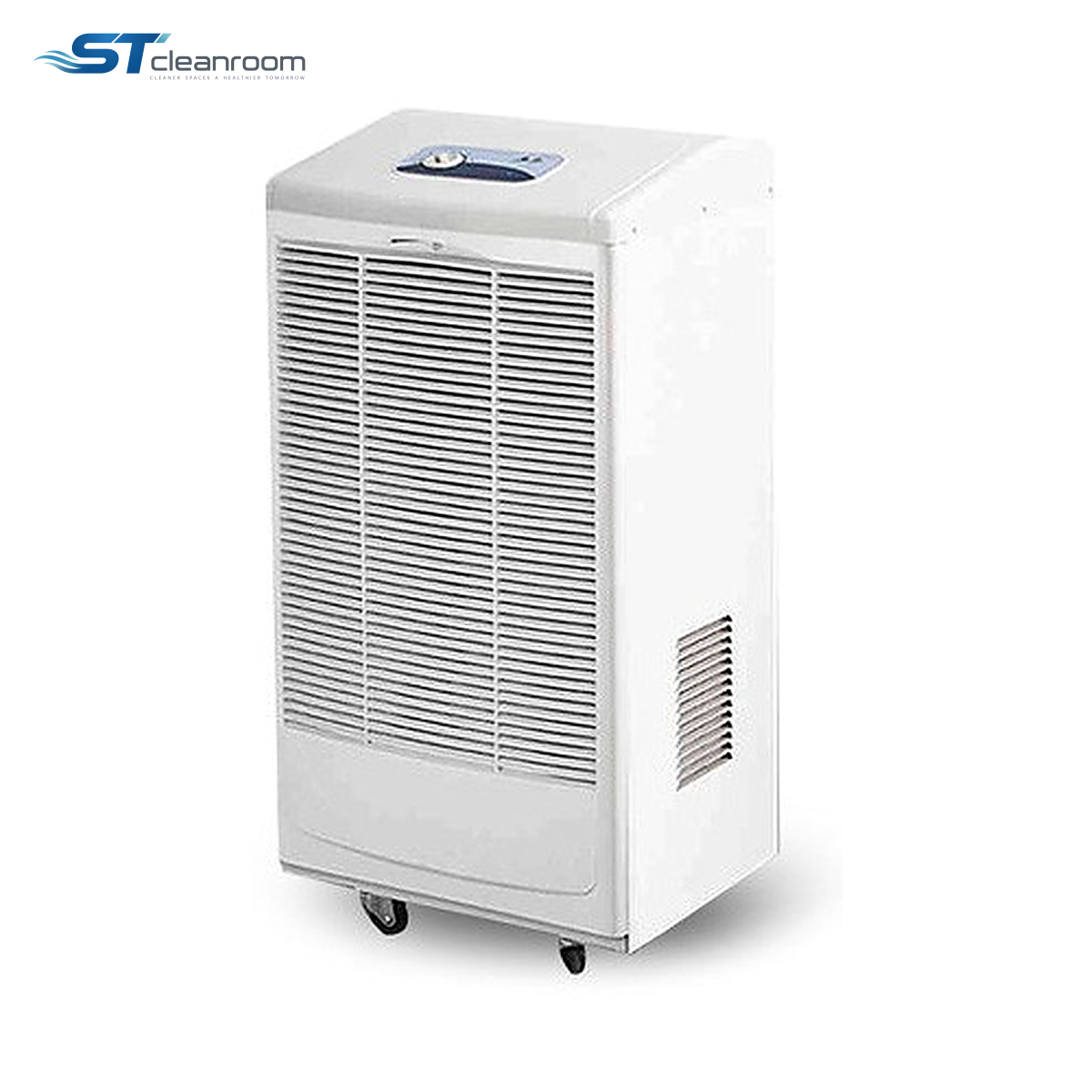

Product view
Humidifiers & Dehumidifiers
Industrial Dehumidifier Series – 80 L/day to 130 L/day
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-IDH-001 to ST-IDH-003 |
| Public model range | ST-IDH-001 to ST-IDH-003 |
| Control | Microcomputer automatic humidity control |
| Defrost | Automatic |
| Timer | 0–24 hours |
| Drainage | Continuous hose drainage |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Industrial Dehumidifier Series – 80 L/day to 130 L/day removes water vapour from damp storage and production rooms by cooling air until moisture condenses, then draining the collected water. Automatic humidity control and hose drainage reduce the need to stop work for tank emptying.
All three models share the same cabinet dimensions. Their different removal rate, circulation and input power allow a higher moisture load to be handled without increasing the floor footprint; the table preserves the common rating condition for comparison.
MODELS AND DIMENSIONS
Available capacity models
| Model | Dehumidification at 30°C / 80% RH (L/day) | Power supply | Rated input / current (W/A) | Defrost | Humidity control and display | Drainage | Refrigerant / charge | Airflow (m³/h) | Operating temperature (°C) | Noise | Net weight (kg) | Dimensions W × D × H (mm) | Packing dimensions W × D × H (mm) | Suggested area at 2.6 m height (m²) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ST-IDH-001 | 80 | 220V~/50Hz | 1500/7 | Automatic | Microcomputer indicator display with humidity setting | Continuous hose drainage | R22/1000g | 1000 | 5-38 | <65dB | 54 | 480 × 400 × 985 | 548 × 468 × 1030 | 80-160 |
| ST-IDH-002 | 100 | 220V~/50Hz | 1500/7 | Automatic | Microcomputer indicator display with humidity setting | Continuous hose drainage | R22/1100g | 1300 | 5-38 | <65dB | 56 | 480 × 400 × 985 | 548 × 468 × 1030 | 90-180 |
| ST-IDH-003 | 130 | 220V~/50Hz | 1700/8 | Automatic | Microcomputer indicator display with humidity setting | Continuous hose drainage | R22/1400g | 1300 | 5-38 | <65dB | 58 | 480 × 400 × 985 | 548 × 468 × 1030 | 100-200 |
Dehumidification capacity is rated at the test condition stated in the table; actual removal changes with room temperature and humidity.
MODEL DIFFERENCES
Which configuration fits the task
ST-IDH-002
The 100 L/day model raises airflow from 1,000 to 1,300 m³/h while retaining the 1,500 W rated input.
ST-IDH-003
The 130 L/day model keeps the 1,300 m³/h airflow but increases removal and rated input; choose it for additional moisture load rather than greater air circulation.
MOISTURE REMOVAL
Automatic control for persistently humid rooms
Refrigeration drying
Moist air is cooled below its dew point so condensed water can be drained away continuously.
Automatic defrost
The defrost cycle supports operation at the stated lower room temperatures without unmanaged frost buildup.
Continuous drainage
A hose connection removes collected water without routine tank emptying during fixed installations.
APPLICATION ENVIRONMENTS
Floor-standing drying for storage and workrooms
Material and packaging stores
Select within the shared cabinet range where goods need moisture removal and a continuous drain can be provided.
Production workrooms
Use room-air recirculation to remove moisture entering through ventilation and routine door opening.
SELECTION
Choose the duty within the common footprint
Compare removal with circulation
The upper choices do not increase airflow in the same way at every step; use the table to match both duties to the room.
Use the rating condition in the comparison
Daily removal is rated under the listed warm, humid test conditions; assess the actual room conditions and drain route before selection.
