Refrigeration dehumidification
The refrigeration circuit removes moisture when room humidity rises above the selected operating range.
PRODUCT GALLERYST

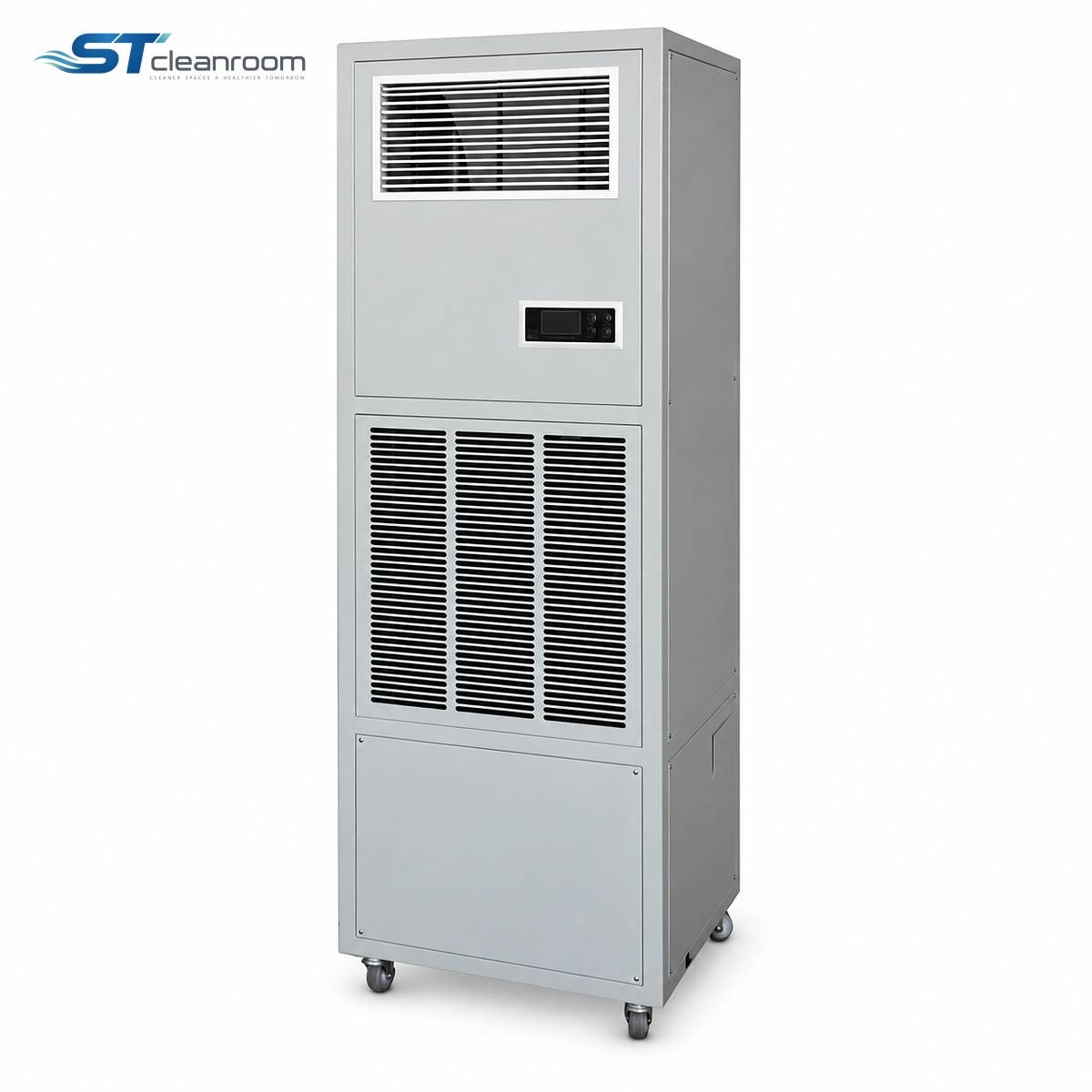

Product view
Humidifiers & Dehumidifiers
High-Output Humidifier-Dehumidifier Unit
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-HCU-03 |
| Dehumidification capacity | 168 L/day |
| Humidification capacity | 150 L/day |
| Suggested area | 100–200 m² |
| Airflow | 2,000 m³/h |
| Rated power | 2.8 kW dehumidifying / 0.5 kW humidifying |
| Power supply | 220 or 380 V / 50 Hz |
| Water filling | Fixed water connection or manual fill |
| Low-water protection | Yes |
| RS485 communication | Available |
| Weight | 105 kg |
| Dimensions | 610 × 560 × 1,880 mm |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
High-Output Humidifier-Dehumidifier Unit increases moisture removal while retaining the footprint and height of the medium combined unit. It is useful when a room's wet-season load grows without space for a larger cabinet.
The removal and addition ratings are different: 168 L/day dehumidification and 150 L/day humidification. Higher circulation and the available supply-voltage choices distinguish it from the 120 L/day version; each mode should be sized for its own moisture load.
TWO-WAY HUMIDITY CONTROL
One cabinet for seasonal drying and dehumidification
Wet-media humidification
The humidification section adds moisture without a visible spray when the room becomes too dry.
Automatic changeover
The controller monitors room humidity and selects the required operating mode without moving portable units in and out.
APPLICATION ENVIRONMENTS
Greater moisture removal in the medium cabinet footprint
Storage rooms with heavier wet-season loads
Use the added dehumidification capacity where the medium combined unit is insufficient and a larger cabinet would obstruct access.
Production rooms with seasonal humidity changes
The two functions address different moisture loads while remaining in one equipment position.
SELECTION
Match the unequal humidifying and drying duties
Choose each mode for its own load
Moisture removal and moisture addition have different ratings on this version; assess both rather than applying one capacity to both seasons.
Select the supply configuration for the site
The available voltage choices must match the installed circuit; the cabinet dimensions alone do not identify the electrical version.
