No visible spray
Air passes through wetted media, adding moisture by evaporation without directing atomized droplets into the room.
PRODUCT GALLERYST

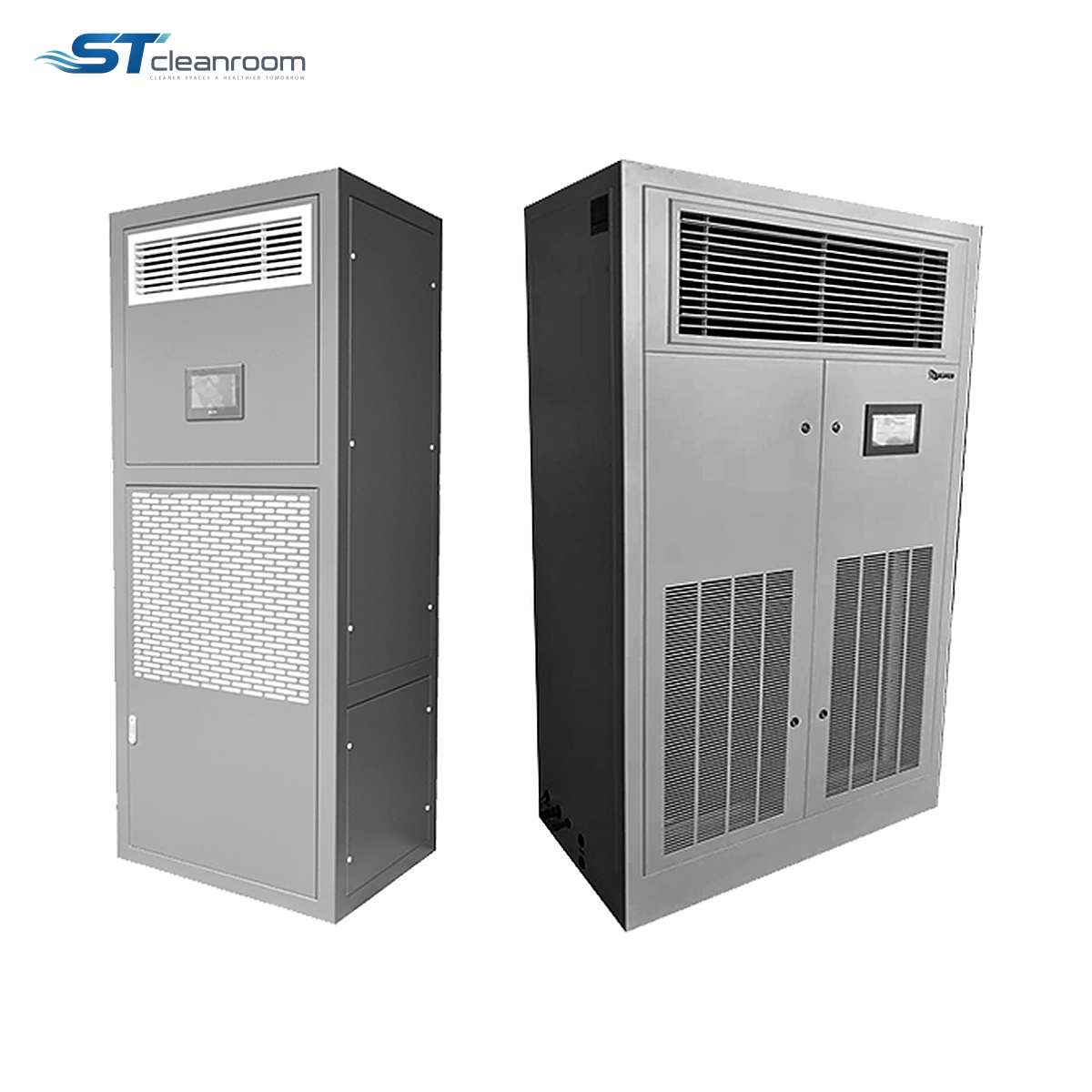

Product view
Humidifiers & Dehumidifiers
Custom Large Wet-Media Humidifier Systems
Product specifications
| Brand | ST |
|---|---|
| Public model | ST-WMH-CUSTOM |
| Configuration | Built to order |
| Reference capacity range | 3–40 kg/h |
| Control | Automatic humidity control |
| Water supply | Manual fill or fixed water connection |
| Mobility | Castors available |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Custom Large Wet-Media Humidifier Systems arranges wet-media humidification around a room's moisture demand, available equipment positions and water services. It is useful where a standard cabinet cannot conveniently meet both the circulation layout and the maintenance route.
The reference capacity range supports small local units through larger installations. Manual filling or a fixed water connection and optional castors are chosen as part of that arrangement; cabinet dimensions follow the selected assembly rather than a single standard size.
MODELS AND DIMENSIONS
Reference configurations
| Model | Humidification capacity | Power | Airflow | Suggested area | Dimensions | Weight |
|---|---|---|---|---|---|---|
| ST-WMH-06 | ≥3 kg/h | 120 W | 3,500 m³/h | 10–60 m² | 480 × 310 × 1,060 mm | 14 kg |
| ST-WMH-07 | ≥6 kg/h | 200 W | 4,000 m³/h | 30–120 m² | 620 × 440 × 1,170 mm | 21 kg |
| ST-WMH-08 | ≥10 kg/h | 200 W | 7,000 m³/h | 80–150 m² | 620 × 450 × 1,190 mm | 25 kg |
| ST-WMH-13 | 30–40 kg/h | 1,000 W | 10,000 m³/h | 300–400 m² | 930 × 640 × 1,780 mm | 65 kg |
Coverage is a reference only and depends on room height, ventilation and moisture load.
EVAPORATIVE HUMIDITY CONTROL
What this humidifier changes in a dry room
Automatic humidity operation
The controller starts and stops humidification around the selected setting, reducing repeated manual adjustment.
Low-water protection
The stated protection stops operation when the water level is insufficient, helping protect the circulation system.
APPLICATION ENVIRONMENTS
Custom arrangements for dry rooms with layout constraints
Rooms with limited equipment positions
Use a configured cabinet where standard dimensions leave poor access or cannot fit the available water-service route.
Production and storage projects
Choose from the reference capacities to match moisture demand while arranging circulation around machines, shelving and access aisles.
SELECTION
Start with the room arrangement
Treat the model table as a configuration choice
Select the required duty and installation position together; reference dimensions do not define every built-to-order assembly.
Choose water and mobility provisions
Manual filling, a fixed water connection and castors serve different service routines; select the arrangement that can be maintained on site.
