ISO Class 4–8 cleanroom ceilings
Use framed modules as ceiling infill over controlled production, assembly and packaging rooms, with sealed panel junctions.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels
Handmade Paper Honeycomb Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Ceiling systems |
| Core structure | Paper honeycomb |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade B1 |
| Load-bearing capacity | 75 kg/m² |
Customization availableCeiling panel dimensions, facing, finish and frame configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.

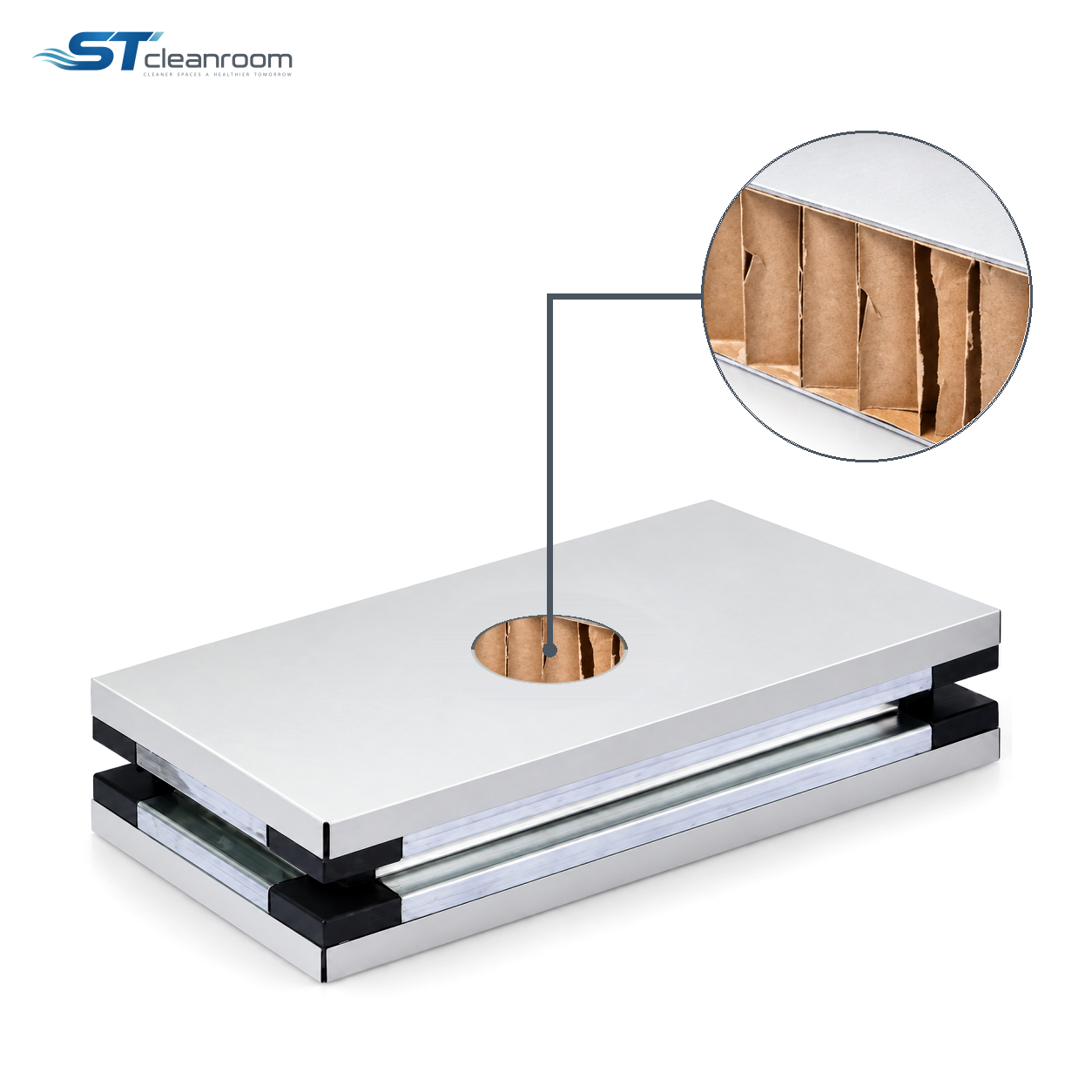

Handmade Paper Honeycomb Sandwich Panel forms prefabricated ceiling modules with a paper honeycomb core, metal faces and a grooved perimeter frame. The frame connects neighbouring modules and trims around lights, filters and other ceiling openings.
Inside that frame, paper cells support the skins with little solid material. The module stays light for handling, while metal faces and closed edges keep routine cleaning on the finished room surface.
APPLICATION ENVIRONMENTS
Fit framed modules into ceiling systems
Ceilings with planned service openings
Coordinate the modules around lights, filters and other ceiling openings so the frame and edge closures meet the surrounding components.
PRACTICAL BENEFITS
What the construction helps solve
Connections around each module
Perimeter framing provides defined edges where the panel meets neighbouring modules and opening trims.
Frame details planned with service openings
Coordinating each module with lights and filters helps the ceiling panels and surrounding components meet at their intended boundaries.
Light infill within a closed boundary
The cellular core limits solid material inside the module; faces and closed edges keep the paper enclosed behind the finished ceiling.
SELECTION GUIDE
Coordinate frames, openings and ceiling modules
Frame connections and supports
Match the panel frame to adjoining modules and the planned ceiling support positions.
Service openings and finishes
Plan closed cut-out edges and suitable fixing points for equipment, then select the metal facing and coating for routine cleaning.
PRODUCT QUESTIONS
Product questions
Does handmade mean assembled on site?
No. The panels are prefabricated modules; their frames and joints are connected during installation.
Is the core paper or aluminium honeycomb?
This panel uses paper honeycomb. Its cellular structure supports the metal faces while limiting the amount of solid core material.
