Cleanroom wall partitions
Enclose controlled production or packaging spaces with metal-faced insulation, sealed panel joints and closed edges around doors and windows.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels
Machine-Made Silica Rock Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Silica rock |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 110 kg/m² |
Customization availablePanel dimensions, facing, coating and opening or end-closure details can be customized for your wall and ceiling project.
Request a quotation
Specify the quantity and configuration in your inquiry.

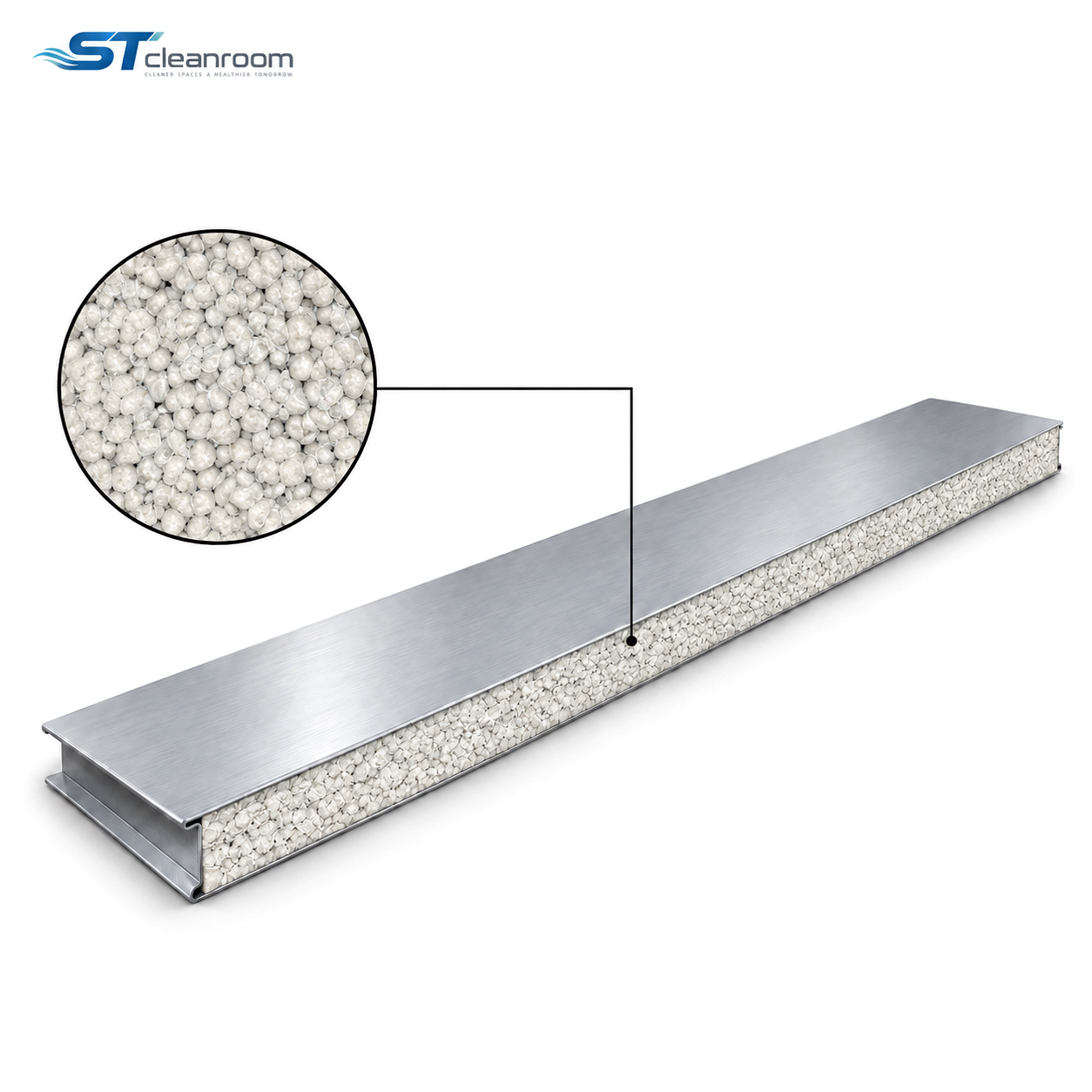

Machine-Made Silica Rock Sandwich Panel forms room partitions and supported ceilings with a bonded silica rock core between two metal faces. The core adds thermal insulation and supports the skins across the panel, giving the room a finished lining without leaving the core exposed to routine cleaning.
Formed interlocking edges connect the sections along the wall or ceiling. At door openings, corners and cut ends, closure profiles cover the granular material and provide a finished edge for sealing. This keeps insulation, panel joints and opening details connected throughout the enclosure.
APPLICATION ENVIRONMENTS
Complete the room lining from walls to ceilings
Supported overhead infill
Continue the silica rock lining across the ceiling, coordinating panel supports and closures around lighting, filters and service openings.
PRACTICAL BENEFITS
Keep the granular core inside the enclosure
Insulation beneath both faces
The silica rock centre limits heat transfer and backs the metal skins, combining the insulating layer with the room's exposed lining.
Covered core at cut openings
Closing cut ends and service openings keeps the granular material behind finished profiles rather than exposed along the room boundary.
Defined connections between sections
The interlocking edges join neighbouring boards into straight panel runs, with accessible seams for sealing and cleaning.
SELECTION GUIDE
Plan the cut edges as well as the panel faces
Opening and perimeter details
Place door, window and service cut-outs within the panel schedule and provide closures wherever the silica rock core is cut.
Supports and surface exposure
Coordinate the panel thickness with the wall tracks or ceiling supports, and choose the facing and coating for the room's cleaning routine.
PRODUCT QUESTIONS
Using silica rock panels in the room enclosure
What needs finishing around a service opening?
Cover the cut core with a suitable closure or opening frame, then seal the junction to the metal facing so the granular edge remains enclosed.
Can the same panel type form the wall and ceiling?
Yes. This version is supplied for wall panels and ceiling systems; the track, support and junction details are arranged for each part of the enclosure.
