ISO Class 4–8 cleanroom walls
Build continuous, insulated partitions in controlled production, testing and packing spaces with cleanable faces and sealed joints.
PRODUCT GALLERYST

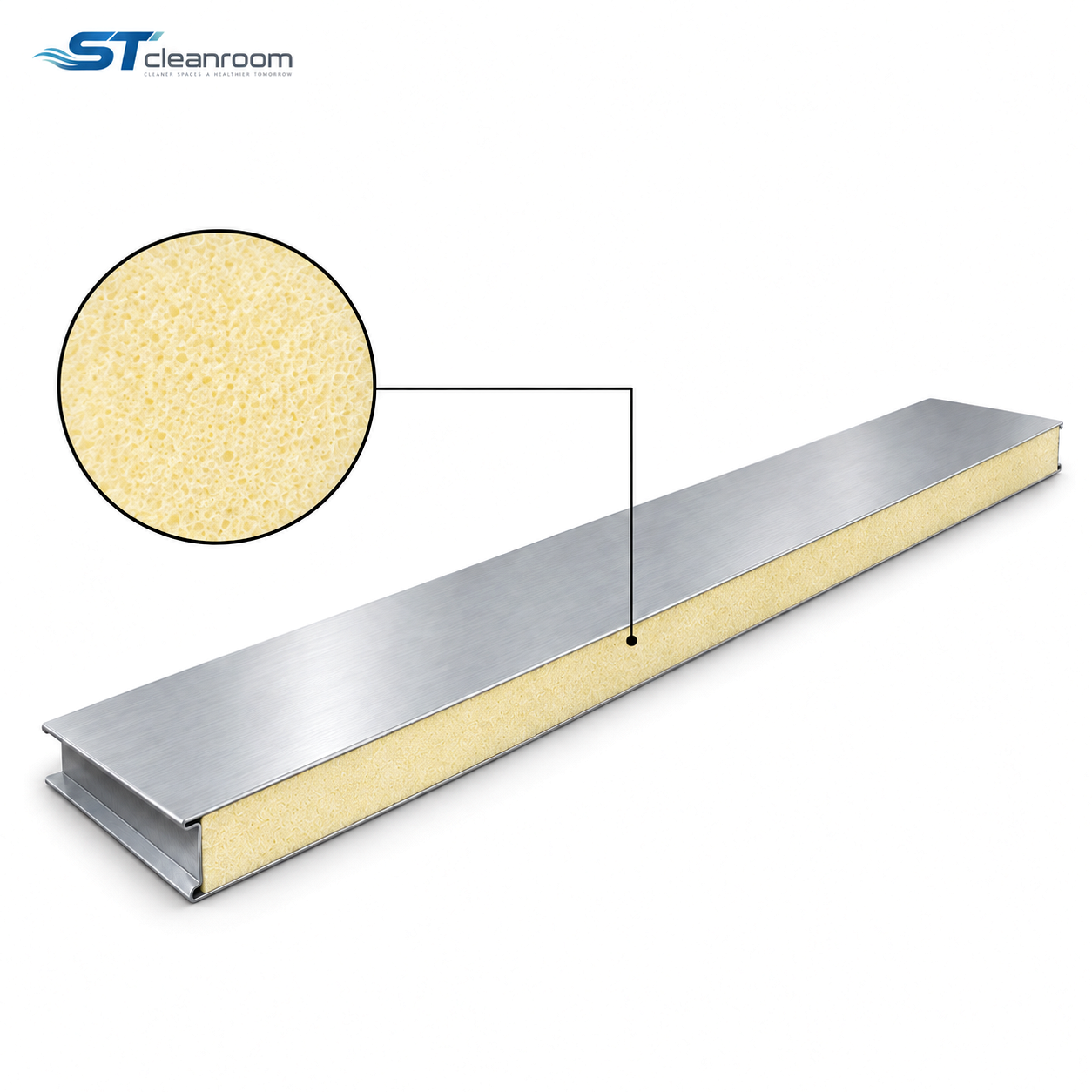

Product view
Cleanroom Wall Panels
Machine-Made PUR/PIR Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels |
| Core structure | PIR / PUR |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 170 kg/m² |
Customization availablePUR or PIR core selection, panel dimensions, facing, coating and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.
Machine-Made PUR/PIR Sandwich Panel combines a rigid PUR or PIR foam core with metal faces to provide insulated cleanroom wall partitions without separate lining and insulation layers. They provide insulation and a wipeable surface in one component, forming cleanroom wall partitions without a separate lining and insulation layer.
Interlocking edge profiles connect adjoining panels along the wall. Matching edge trims and sealed joints complete the surface at corners, doors and service openings.
APPLICATION ENVIRONMENTS
Cleanroom wall partitions
PRACTICAL BENEFITS
What the construction helps solve
One component for lining and insulation
Metal skins provide the wipeable interior while the foam core limits heat transfer through the enclosure.
Formed edges along wall runs
Interlocking edge profiles connect adjacent sections and provide a defined joint for sealing.
Core choice within the same panel style
PUR and PIR options let the core selection follow the project requirements without changing the machine-made panel format.
SELECTION GUIDE
Choose the assembly for the room
Room finish and cleaning
Match the facing and coating to the cleaning procedure and process exposure.
Wall joints and service openings
Plan interlocking joints and end closures around doors, windows and service openings so insulation stays enclosed at the wall junctions.
PRODUCT QUESTIONS
Common questions
What is the difference between PUR and PIR?
PUR is polyurethane; PIR is polyisocyanurate. Both are rigid foam-core options for this panel.
How does this differ from the handmade version?
This version uses interlocking edge profiles; the handmade version uses a prefabricated grooved perimeter frame.
