ISO Class 4–8 wall partitions
Enclose controlled production and working rooms with cleanable metal surfaces, mineral insulation and sealed panel junctions.
PRODUCT GALLERYST

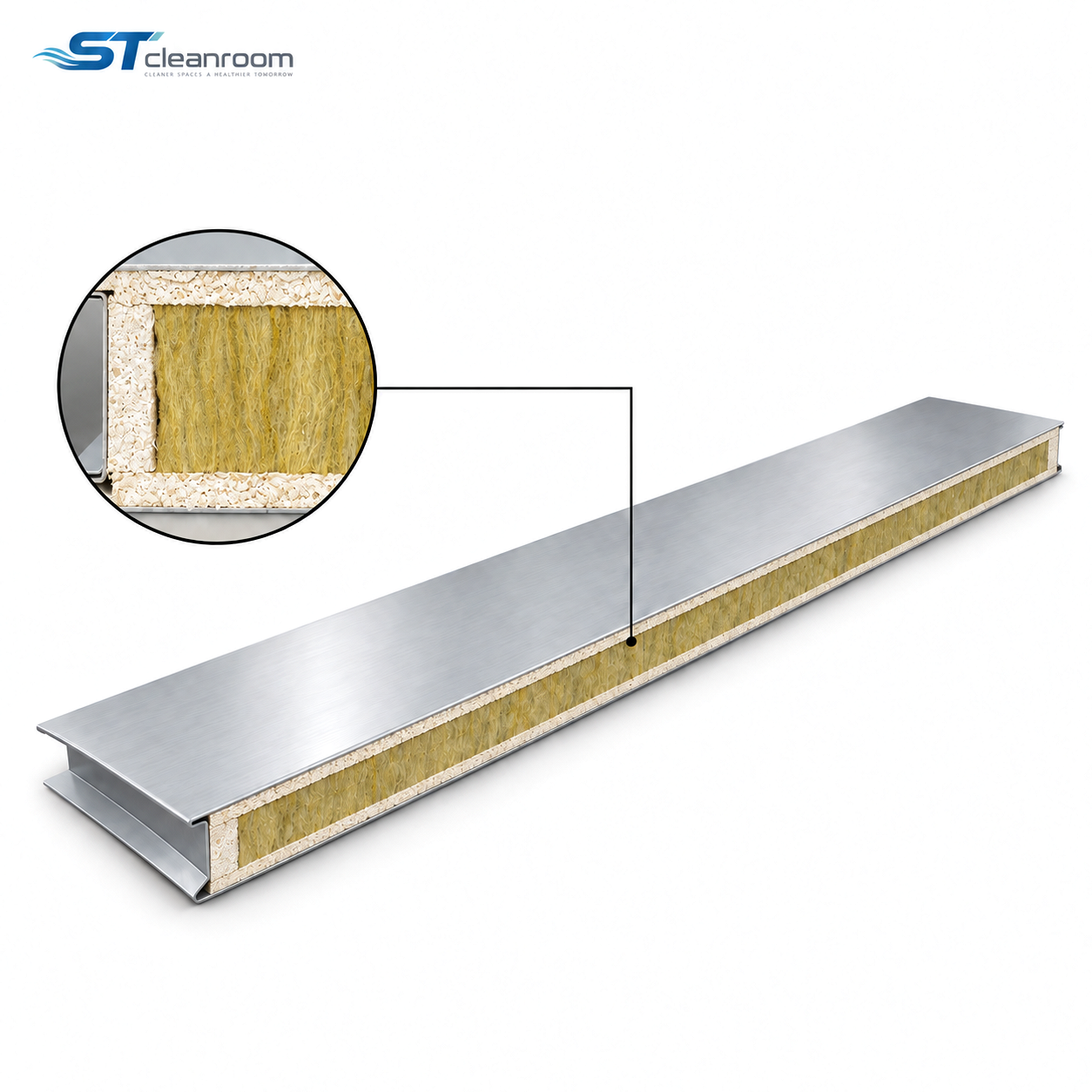

Product view
Cleanroom Wall Panels
Machine-Made Glass-Magnesium Rock Wool Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Glass-magnesium board layers + rock wool |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade B1 |
| Load-bearing capacity | 75 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.
Machine-Made Glass-Magnesium Rock Wool Sandwich Panel combines a rock wool centre with glass-magnesium board layers beneath the metal faces for wall partitions and ceiling systems. The rock wool limits heat transfer, while the mineral boards give the faces rigid backing for cleanroom wall partitions and ceiling systems.
The smooth metal surfaces can be wiped during routine cleaning. Interlocking edge profiles join adjacent panels, with sealed junctions completing the wall and ceiling enclosure.
APPLICATION ENVIRONMENTS
Cleanroom walls and ceilings
Cleanroom ceiling systems
Form insulated ceiling infill, with the panel layout coordinated around supports, lighting, filters and service openings.
PRACTICAL BENEFITS
What the construction helps solve
Rigid backing beneath the metal faces
Glass-magnesium board layers back the faces, with rock wool retained as the insulating centre.
Thermal separation inside the composite core
The wool limits heat transfer between adjoining rooms while the mineral boards and skins form the finished panel.
Core enclosed through the room layout
Metal faces, edge trims and sealed cuts keep the mineral materials inside the wall and ceiling enclosure.
SELECTION GUIDE
Choose the assembly for the room
Connections around the room
Coordinate the interlocking profiles and edge trims at wall ends, doors and windows.
Cleaning and ceiling services
Match the finish to routine cleaning and coordinate ceiling infill with the supports, lights and filters.
COMMON QUESTIONS
Product questions
Is this the same as a plain rock wool panel?
No. It adds glass-magnesium board layers around the rock wool, forming a composite core with rigid mineral backing beneath the metal faces.
What does MgO rock wool panel mean?
It is another name used for a rock wool sandwich panel incorporating magnesium oxide board, commonly called glass-magnesium board.
