Production-room wall partitions
Divide temperature-controlled work areas with insulated panel runs and sealed interfaces at doors, windows and corners.
PRODUCT GALLERYST

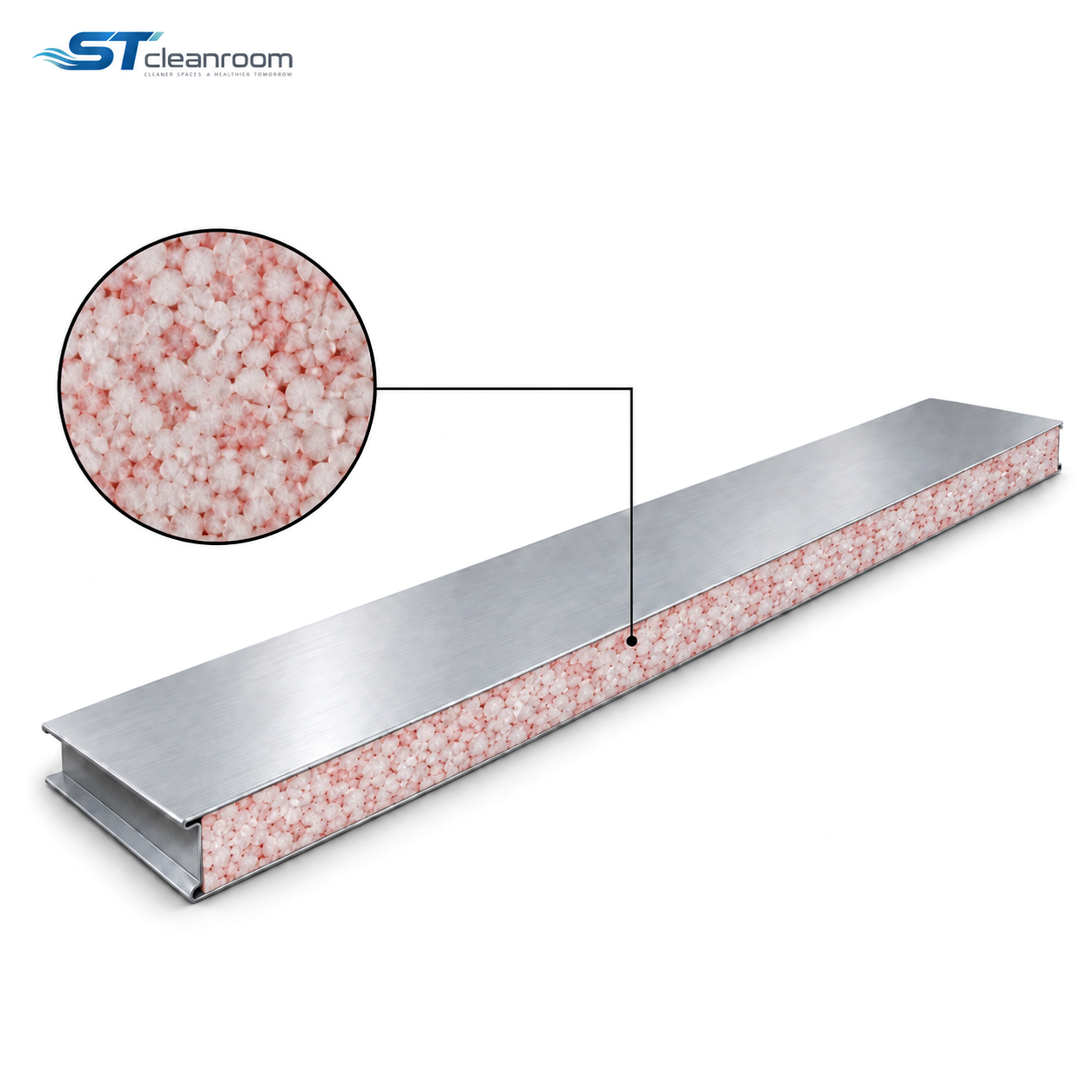

Product view
Cleanroom Wall Panels
Machine-Made Flame-Retardant TPS Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Flame-retardant TPS |
| Edge construction | Interlocking profile frame |
| Panel width | 900 / 1150 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 110 kg/m² |
Customization availablePanel lengths, thicknesses, metal facing, coating and connection details can be customized for your wall and ceiling layout.
Request a quotation
Specify the quantity and configuration in your inquiry.
Machine-Made Flame-Retardant TPS Sandwich Panel creates insulated room walls and ceilings with a TPS core and interlocking panel edges. The granular foam core reduces heat transfer through the enclosure, and the metal faces provide smooth surfaces for routine cleaning.
Interlocking profiles guide adjacent panels into alignment along each run. Sealing these joints and closing the cut ends creates a continuous enclosure around corners, doors and ceiling junctions, helping avoid gaps and exposed core at the connections.
APPLICATION ENVIRONMENTS
Walls and ceilings that meet as one enclosure
Supported ceiling systems
Close the room overhead with connected panel sections, arranging supports and sealed openings around lights and services.
PRACTICAL BENEFITS
Address heat transfer and unfinished joints
Thermal separation through the panel
The TPS foam layer adds insulation between the metal skins, helping separate rooms with different temperature requirements.
Alignment along repeated connections
Interlocking profiles provide a defined joining path between neighbouring sections, making the seams easier to align and seal.
Cleaning at faces and junctions
Metal surfaces and closed opening edges keep the core covered and provide accessible surfaces for routine cleaning.
SELECTION GUIDE
Coordinate panel runs with the room layout
Joint positions and end closures
Arrange the panel widths and cut lengths around corners and openings so the joining profiles remain continuous along each run.
Ceiling supports and finish
Match the ceiling support layout to the panel assembly, and choose the facing and coating for the room's cleaning and surface requirements.
PRODUCT QUESTIONS
Questions about interlocking TPS panels
Does an interlocking joint still need sealing?
Yes. The profile aligns and connects the sections; sealing the seam and closing cut edges completes the enclosure.
How does this version differ from the handmade TPS panel?
This version uses interlocking profiles for connected panel runs. The handmade version has a grooved perimeter frame around each module; their widths, fire grades and load values are listed separately.
