ISO Class 4–8 cleanroom partitions
Form prefabricated room enclosures with smooth faces and framed connections around doors, corners and service openings.
PRODUCT GALLERYST

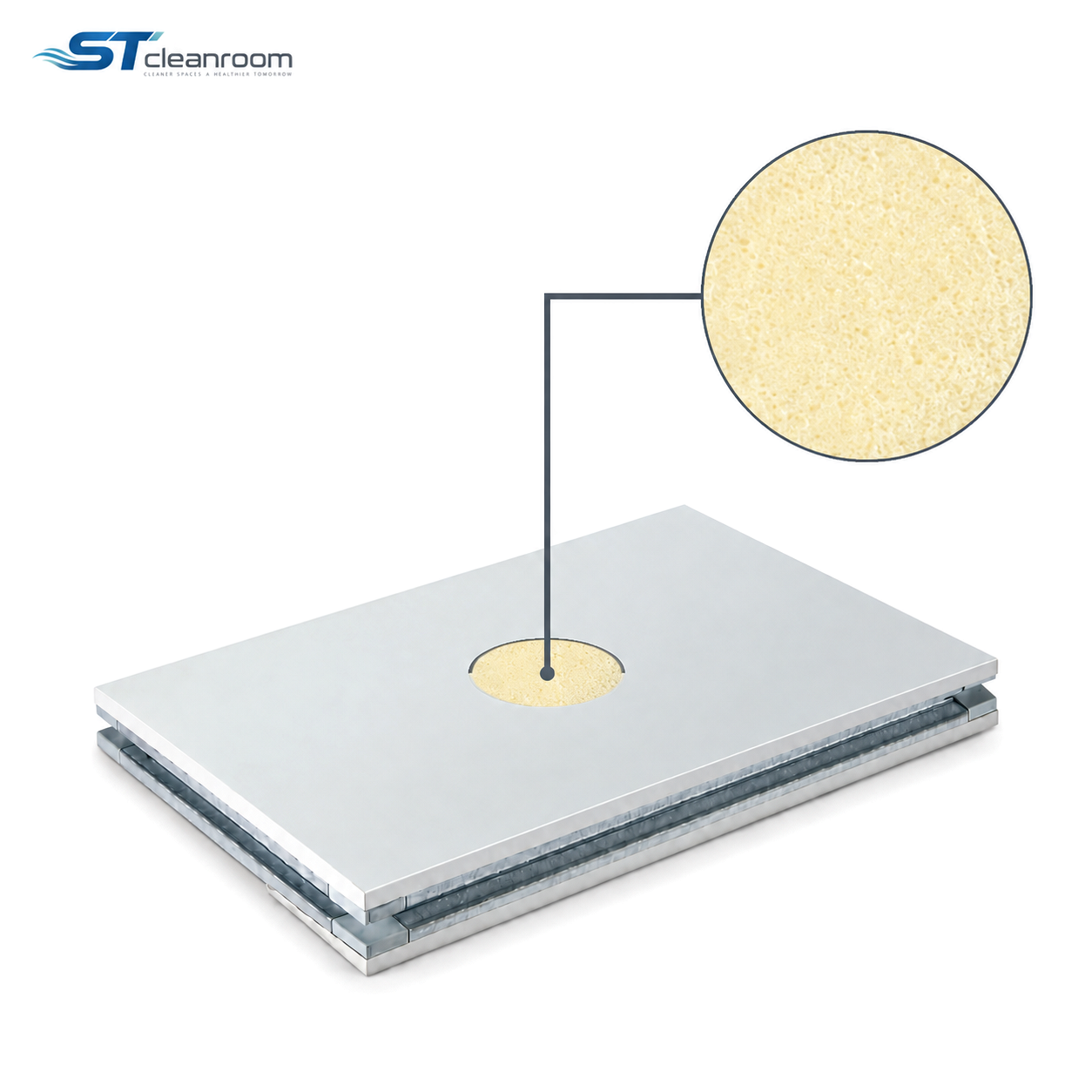

Product view
Cleanroom Wall Panels
Handmade PUR/PIR Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | PIR / PUR |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade B1 |
| Load-bearing capacity | 120 kg/m² |
Customization availablePUR or PIR core selection, panel dimensions, facing, coating and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.
Handmade PUR/PIR Sandwich Panel encloses a PUR or PIR foam core within metal faces and a profiled perimeter frame for insulated wall and ceiling modules. They form cleanroom partitions and ceiling infill with a smooth surface for routine cleaning and insulation to limit heat transfer between spaces.
Framed edges provide defined connections at adjoining panels, corners and openings, helping the wall and ceiling components fit into one enclosure.
APPLICATION ENVIRONMENTS
Cleanroom walls and ceilings
Cleanroom ceiling infill
Complete the insulated enclosure above the room with framed infill panels matched to the ceiling support layout.
PRACTICAL BENEFITS
What the construction helps solve
A defined connection around each module
Perimeter framing provides joining edges where panels meet doors, corners and surrounding frames.
Insulation retained inside the panel
The metal skins cover the PUR or PIR core, combining the finished surface and thermal separation.
Openings planned with the frame
Coordinating doors and glazing with the modules helps the enclosure components meet at their intended interfaces.
SELECTION GUIDE
Choose the assembly for the room
Panel frame and adjoining components
Match perimeter profiles to doors, viewing windows and service openings before scheduling the panels.
Overhead supports
Coordinate infill modules with the ceiling grid, lighting and filters, using separate supports for equipment.
PRODUCT QUESTIONS
Common questions
Does handmade mean assembled on site?
No. The framed panels are prefabricated at the factory and joined during installation.
Can the core be PUR or PIR?
Yes. Both foam-core options are available in the handmade construction.
