ISO Class 4–8 cleanroom partitions
Assemble framed panels into room walls, coordinating sealed joints with doors, windows and service penetrations.
PRODUCT GALLERYST
Product view
Cleanroom Wall Panels
Handmade Glass-Magnesium Rock Wool Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Glass-magnesium board layer + rock wool + glass-magnesium board layer |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade A |
| Load-bearing capacity | 210 kg/m² |
Customization availablePanel dimensions, facing, finish and joint configuration can be tailored to your project.
Request a quotation
Specify the quantity and configuration in your inquiry.

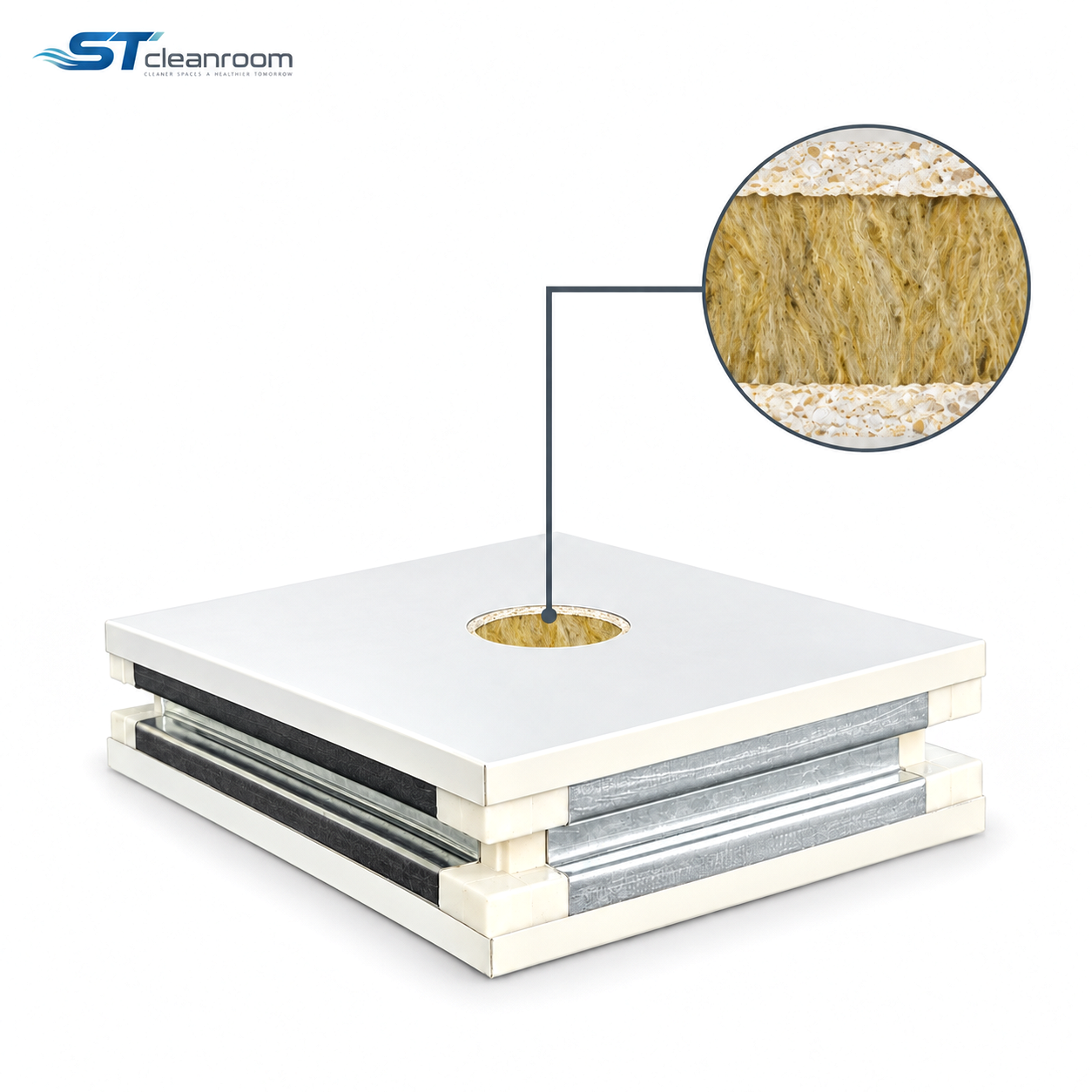

Handmade Glass-Magnesium Rock Wool Sandwich Panel encloses glass-magnesium board layers and rock wool within metal faces and a profiled perimeter frame. The mineral boards back the faces, while the rock wool provides insulation for room partitions and ceiling systems.
The frame provides defined joining edges around each panel. Flat faces and straight, burr-free cuts help adjoining panels form an even enclosure surface that can be wiped during routine cleaning.
APPLICATION ENVIRONMENTS
Build the room enclosure
Cleanroom ceilings
Use the composite panels as insulated ceiling infill within the planned support and suspension system.
PRACTICAL BENEFITS
What the construction helps solve
Frame connections at the panel boundary
The perimeter profile provides defined interfaces for adjacent panels and surrounding opening frames.
Supported faces with mineral insulation
Glass-magnesium boards back the metal skins; rock wool limits heat transfer within the composite module.
Even finishes at the junctions
Flat faces and straight, burr-free cuts help adjoining panels meet as a continuous surface for routine cleaning.
SELECTION GUIDE
Choose the assembly for the room
Interfaces to doors and glazing
Coordinate the frame with H-sections or tongue-and-groove connections and the adjoining door or window sections.
Insulated ceiling infill
Lay out framed ceiling modules around supports and service openings, with separate support for equipment loads.
COMMON QUESTIONS
Product questions
Does it use the same core as the machine-made version?
Yes. Both combine rock wool and glass-magnesium board. This handmade version uses a prefabricated perimeter frame and a different edge assembly.
Are the panel faces and cuts finished?
The finish requirements are flat faces without obvious unevenness and straight cut edges without burrs.
