Controlled production-room partitions
Separate food, electronics and instrument workspaces with insulated wall modules and finishes suited to their cleaning conditions.
PRODUCT GALLERYST

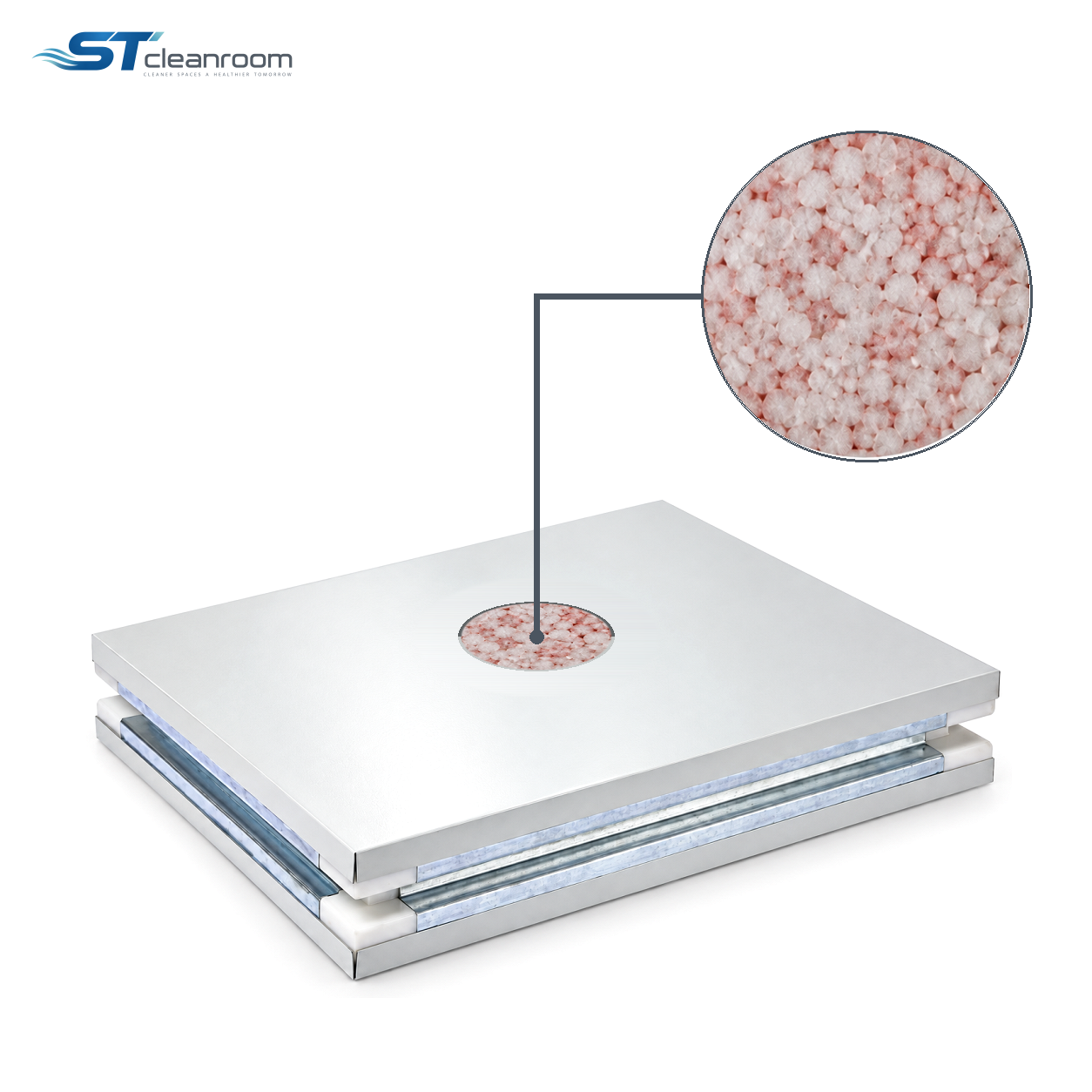

Product view
Cleanroom Wall Panels
Handmade Flame-Retardant TPS Sandwich Panel
Product specifications
| Brand | ST |
|---|---|
| Application | Wall panels / ceiling systems |
| Core structure | Flame-retardant TPS |
| Edge construction | Grooved profile frame |
| Panel width | Maximum 1180 mm |
| Panel thickness | 50 / 75 / 100 / 150 / 200 mm |
| Maximum panel length | 11,800 mm |
| Facing material | Prepainted galvanized steel (PPGI) / SS304 stainless steel |
| Surface coating | PE / SMP / PVDF / ESD |
| Fire grade | Grade B1 |
| Load-bearing capacity | 100 kg/m² |
Customization availablePanel dimensions, metal facing, coating and perimeter frame details can be customized to your wall and ceiling layout.
Request a quotation
Specify the quantity and configuration in your inquiry.
Handmade Flame-Retardant TPS Sandwich Panel combines flame-retardant TPS insulation with metal faces and framed edges for room partitions and supported ceilings. The core limits heat transfer, while the finished faces provide accessible surfaces for regular cleaning.
A grooved perimeter frame encloses the panel edges and provides connections between neighbouring modules. Matching trims and sealed junctions complete the enclosure at doors, windows and service openings, keeping the core covered where panels meet other room components.
APPLICATION ENVIRONMENTS
Insulated walls and supported ceiling modules
Ceilings with planned service openings
Use supported infill modules above the working space, coordinating the grooved frames with lights, filters and sealed opening edges.
PRACTICAL BENEFITS
Insulation and finished junctions in one assembly
Flame-retardant insulating core
TPS provides thermal separation in a panel selected for the room's insulation and fire-performance requirements.
A defined edge around each module
The grooved frame provides a joining interface and keeps the core enclosed along the panel perimeter.
Cleaning through the room junctions
Metal faces, trims and sealed openings provide accessible surfaces at the main panel and adjoining components.
SELECTION GUIDE
Coordinate frames, finishes and openings
Grooved frames and adjoining components
Match panel thickness and perimeter profiles with doors, windows, corners and ceiling supports.
Facing and cleaning routine
Choose the metal facing and coating for the cleaning procedure and exposure in the room.
PRODUCT QUESTIONS
TPS panel questions
What does the perimeter frame do?
It encloses the panel edges and provides a connection between modules and the adjoining tracks or opening frames.
Can this panel be used for both walls and ceilings?
Yes. It forms wall partitions and supported ceiling infill, with the frame layout and supports arranged for each assembly.
