ST-LPW29-040
The 40 L/h configuration uses an 11 gal pressure tank for lower-volume qualitative and quantitative preparation.
PRODUCT GALLERYST

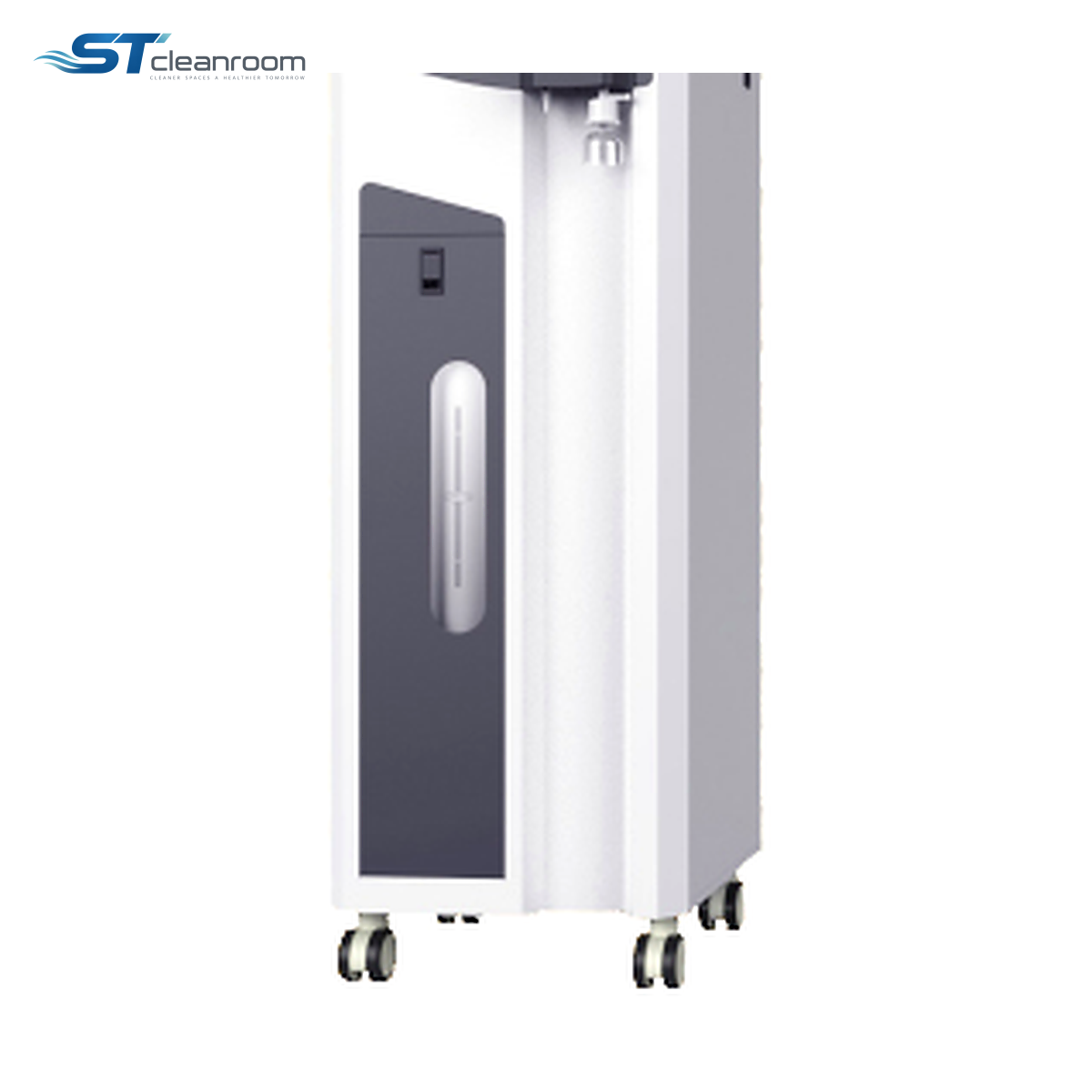

Product view
Cleanroom Pure Water Systems
Laboratory Ultrapure Water System – ST-LPW29 Series
Product specifications
| Brand | ST |
|---|---|
| Public model series | ST-LPW29 |
| Feed-water requirements | municipal tap water; TDS ≤200 ppm, pressure 1.0–5.0 kg/cm², temperature 5–45°C |
| Main unit dimensions | H × W × D: 1430 × 525 × 570 (mm) |
| Unit weight | 80 kg |
| Power supply and rated power | AC 220 V/50 Hz (power 50-100 W) |
| Dispensing rate | 1.8-2.0 L/min |
| RO water quality | conductivity ≤1-5 µS/cm (online monitoring) |
| Ultrapure water quality | resistivity 18.2 MΩ·cm at 25°C (online monitoring, GB/T 6682-2008) |
| Microbial level | ≤1 CFU/mL |
| Particle count | ≤ 1 particle/mL |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laboratory Ultrapure Water System – ST-LPW29 Series provides a monitored floor-standing source of RO and ultrapure water for laboratory preparation. It is useful where staff make repeated collections and want the water production equipment off the main working bench.
The listed microbial and particle criteria accompany the final resistivity value. Three output options address replenishment for different daily demand, with a common cabinet layout and dispensing-rate specification across the series.
MODELS AND DIMENSIONS
Available output models
| Model | Production rate | Storage tank |
|---|---|---|
| ST-LPW29-040 | 40 L/h at 25°C | supplied with 11 gal pressure tank |
| ST-LPW29-060 | 60 L/h at 25°C | supplied with 17 gal pressure tank |
| ST-LPW29-100 | 100 L/h at 25°C | supplied with 28 gal pressure tank |
Production-rate ratings are stated at the temperature shown in the table.
MODEL DIFFERENCES
Which configuration fits the task
ST-LPW29-060
The 60 L/h model includes a 17 gal tank, adding both recovery capacity and a larger stored-water buffer for grouped preparations.
ST-LPW29-100
The 100 L/h version has a 28 gal tank for the largest recurring preparation demand; the analytical water-quality specification remains common to the series.
FEATURES AND BENEFITS
How it helps
Off-bench equipment position
A separate floor position frees the working surface for preparation and instruments.
Independent water-quality criteria
Ionic condition, particle level and microbial level must each fit the task; one is not a substitute for the others.
APPLICATIONS
Where it is used
Shared laboratory water collection
Place a monitored water point near repeated preparation and rinsing tasks, with each outlet selected for the task’s required water quality.
SYSTEM SELECTION
Provide an accessible off-bench supply
Shared preparation
Match final ionic, microbial and particle criteria to the laboratory tasks using this water point.
Production and storage
Choose the output and paired tank around the peak collection batch, with the floor-standing cabinet reachable for filling and routine treatment-stage service.
