ST-LPW17-005
The 5 L/h entry model serves occasional low-volume draws, paired with the series standard 5 gal pressure tank.
PRODUCT GALLERYST

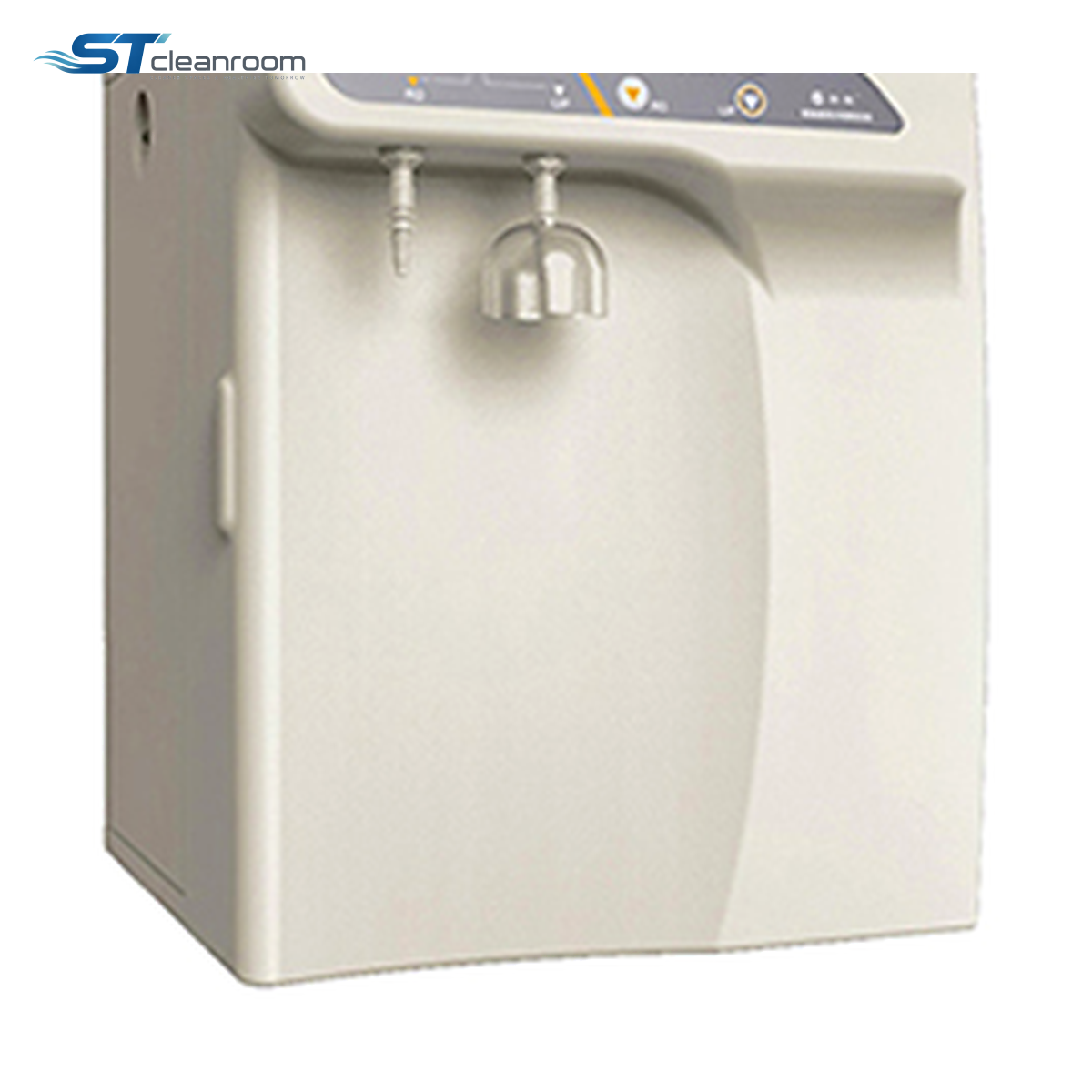

Product view
Cleanroom Pure Water Systems
Laboratory Ultrapure Water System – ST-LPW17 Series
Product specifications
| Brand | ST |
|---|---|
| Public model series | ST-LPW17 |
| Feed-water requirements | municipal tap water; TDS ≤200 ppm, pressure 1.0–5.0 kg/cm², temperature 5–45°C |
| Main unit dimensions | H × W × D: 512 × 390 × 445 (mm) |
| Unit weight | 30-50 kg |
| Power supply and rated power | AC 220 V/50 Hz (power 30-50 W) |
| Storage tank | supplied with 5 gal pressure tank (other sizes optional) |
| Dispensing rate | 1.8-2.0 L/min |
| RO water quality | conductivity 2-10 µS/cm (online monitoring) |
| Ultrapure water quality | resistivity 15-18.2 MΩ·cm at 25°C (online monitoring, GB/T 6682-2008) |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laboratory Ultrapure Water System – ST-LPW17 Series offers compact RO and polished-water production for laboratory tasks fitting a 15–18.2 MΩ·cm operating range. It gives staff a local supply and an online indication of ionic water quality.
The cabinet dimensions match the nearby compact ultrapure configurations, but the published output-quality range differs. Select it by the method's acceptable water quality as well as the required production rate, instead of using the similar enclosure as evidence that the treatments are identical.
MODELS AND DIMENSIONS
Available output models
| Model | Production rate |
|---|---|
| ST-LPW17-005 | 5 L/h at 25°C |
| ST-LPW17-010 | 10 L/h at 25°C |
| ST-LPW17-015 | 15 L/h at 25°C |
| ST-LPW17-020 | 20 L/h at 25°C |
| ST-LPW17-040 | 40 L/h at 25°C |
| ST-LPW17-060 | 60 L/h at 25°C |
| ST-LPW17-100 | 100 L/h at 25°C |
Production-rate ratings are stated at the temperature shown in the table.
MODEL DIFFERENCES
Which configuration fits the task
ST-LPW17-010
The 10 L/h version offers greater recovery between repeated small preparations without changing the listed 15–18.2 MΩ·cm range.
ST-LPW17-015
At 15 L/h, this intermediate option matches demand between the neighbouring 10 and 20 L/h versions.
ST-LPW17-020
The 20 L/h model is the next choice for a regular working-day preparation schedule rather than isolated draws.
ST-LPW17-040
The 40 L/h configuration doubles the 20 L/h replenishment rate for batches that follow one another more closely.
ST-LPW17-060
The 60 L/h model offers extra sustained production during longer periods of analytical preparation.
ST-LPW17-100
The 100 L/h option is intended for the largest recurring volume in this series; optional tank sizes address storage separately from the higher production rating.
FEATURES AND BENEFITS
How it helps
Quality range is the distinction
The RO conductivity and polished-water resistivity ranges define the selection before capacity is considered.
Tank-assisted dispensing
The 5 gal pressure tank supports short collection peaks between production cycles.
APPLICATIONS
Where it is used
Shared laboratory water collection
Place a monitored water point near repeated preparation and rinsing tasks, with each outlet selected for the task’s required water quality.
SYSTEM SELECTION
Check the acceptable outlet-quality range
Rinsing and preparation
Compare the separate RO and polished-water ranges with the method’s accepted quality before allocating a task to either outlet.
Compact water station
Choose production for repeated vessel filling and allow a position for the pressure tank as well as the main unit and service connections.
