Use an existing purified feed
Local polishing can be added at the laboratory point without describing the unit as a raw-water treatment plant.
PRODUCT GALLERYST
Product view
Cleanroom Pure Water Systems

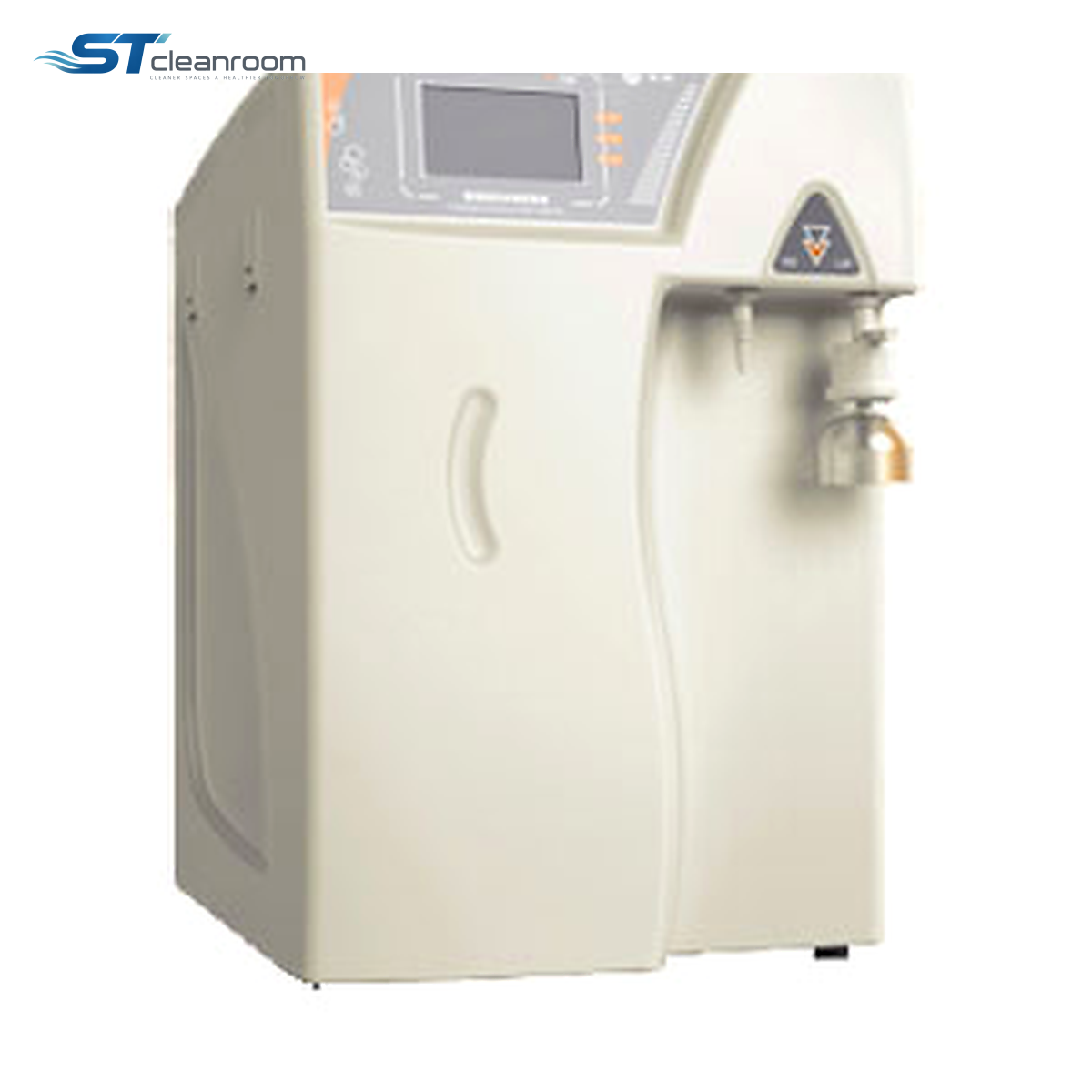

Laboratory Ultrapure Water System – ST-LPW06 Series
Product specifications
| Brand | ST |
|---|---|
| Public model series | ST-LPW06 |
| Feed-water source | Distilled water, purified water or Type II purified water |
| Feed-water SDI | <1 |
| Feed-water temperature | 5–45°C |
| Feed-water TDS | <50 ppm |
| Feed-water pressure | 1.5–4 bar |
| Maximum feed conductivity | <50 µS/cm |
| Power supply | 220 V / 50 Hz |
| Rated power | 35 W |
| Ultrapure-water resistivity | 18.25 MΩ·cm |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laboratory Ultrapure Water System – ST-LPW06 Series polishes already purified feed water at a laboratory use point. It is suited to a bench supplied by distilled water, purified water or Type II water, where the final treatment is located close to the work.
The low feed-water TDS, conductivity and SDI requirements distinguish this unit from a system intended to treat incoming municipal water directly. Its 35 W rating supports a local polishing arrangement, while the upstream supply must maintain the stated feed conditions.
FEATURES AND BENEFITS
How it helps
Feed quality matters
The feed conductivity and SDI limits address the load entering the polishing stage and protect the intended operating arrangement.
APPLICATIONS
Where it is used
Laboratory point-of-use polishing
Treat an existing purified-water feed close to reagent preparation instead of treating municipal water directly at the bench.
SELECTION GUIDANCE
Choosing the configuration
Existing purified-water connection
Connect to a distilled, purified or Type II water line that maintains the stated pressure and temperature at the unit during collection. Allow access to the feed tubing and service connections beside the bench.
Feed quality and preparation method
Match the upstream water to the TDS, conductivity and SDI limits together, then use the listed outlet resistivity to assess the preparation method. Select the polishing unit around the existing purified supply.
