External reserve
Storage can be arranged beside the unit around available service space and the collection routine.
PRODUCT GALLERYST

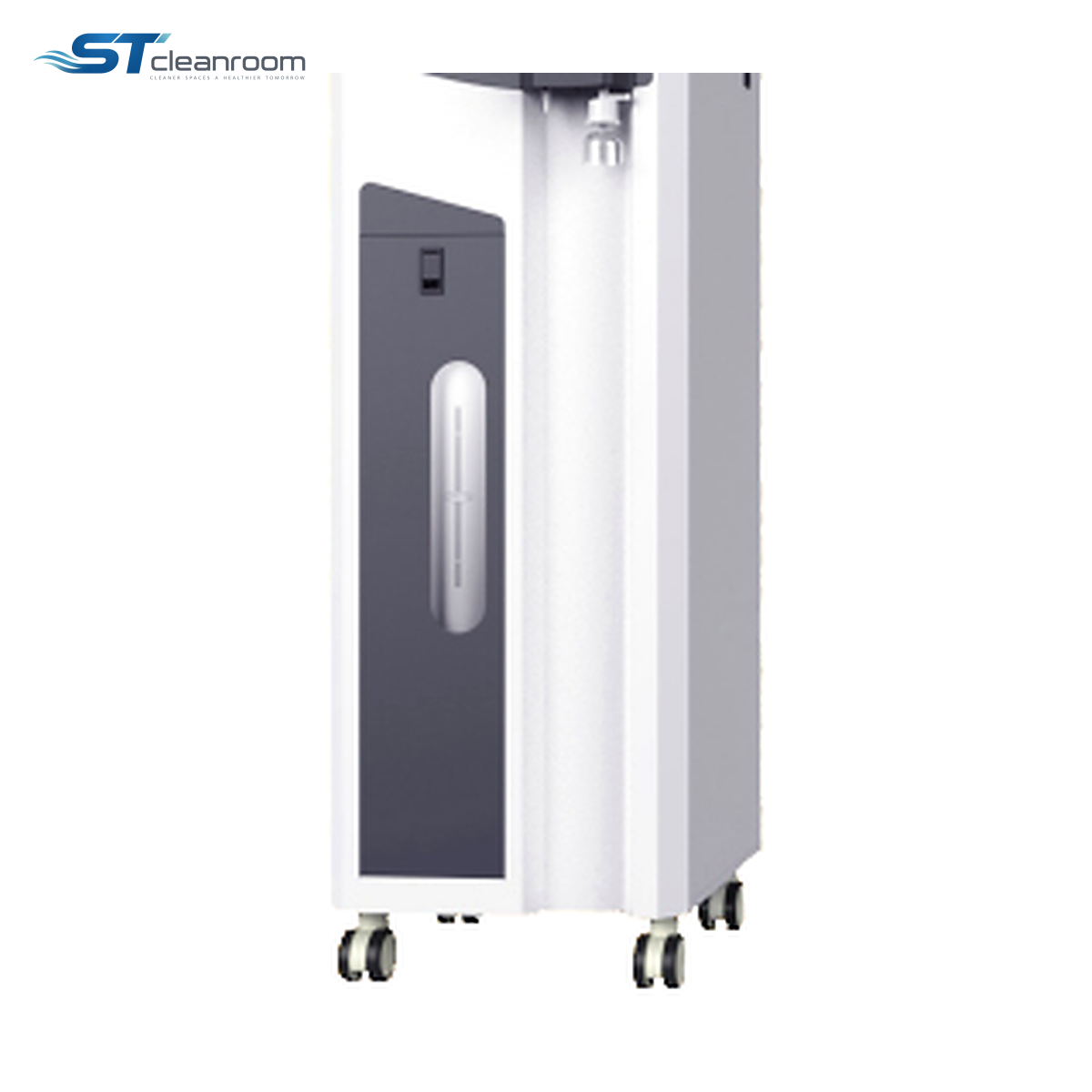

Product view
Cleanroom Pure Water Systems
Laboratory Pure Water System – ST-LPW23 Series
Product specifications
| Brand | ST |
|---|---|
| Public model series | ST-LPW23 |
| Feed-water requirements | municipal tap water; TDS ≤200 ppm, pressure 1.0–5.0 kg/cm², temperature 5–45°C |
| Production rate | 40/60/80/100/120 L/h |
| Main unit dimensions | 1430 × 525 × 570 (mm) |
| Unit weight | 35-60 |
| Power supply and rated power | AC 220 V/50 Hz (power 50-100 W) |
| Storage tank | supplied with 11 gal-40 Gexternal pressure tank (other sizes optional) |
| Dispensing rate | 1.8-2.0 L/min |
| RO water quality | conductivity ≤1-5 µS/cm (online monitoring) |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laboratory Pure Water System – ST-LPW23 Series supplies RO water for repeated laboratory rinsing and general preparation through a floor-standing unit and external pressure storage. It is suited to a dedicated filling point serving several routine tasks.
The pressure-tank options provide a different storage arrangement from compact systems with one small standard tank. Hourly production should cover consumption over time, while the chosen external tank accommodates the peak volume collected between production cycles.
MODELS AND DIMENSIONS
Available output models
| Model |
|---|
| ST-LPW23-120 |
| ST-LPW23-120-02 |
| ST-LPW23-120-03 |
| ST-LPW23-120-04 |
| ST-LPW23-120-05 |
| ST-LPW23-120-06 |
Production-rate ratings are stated at the temperature shown in the table.
FEATURES AND BENEFITS
How it helps
Routine water-quality monitoring
Conductivity is displayed online so staff can monitor the condition of their RO supply.
APPLICATIONS
Where it is used
Routine laboratory washing
Provide RO water for rinsing and general preparation whose required conductivity fits the selected output.
SYSTEM SELECTION
Plan a shared RO collection station
External storage
Choose external pressure storage around the largest washing batch and allow space for the tank beside the floor-standing production unit.
Supply recovery
Use total consumption and the gap between collections to select production, with the listed conductivity matched to the intended routine-water tasks.
