ST-LPW15-010
The 10 L/h entry option suits low-volume pure-water preparation with time between batches; it uses the shared 5 gal pressure-tank configuration.
PRODUCT GALLERYST

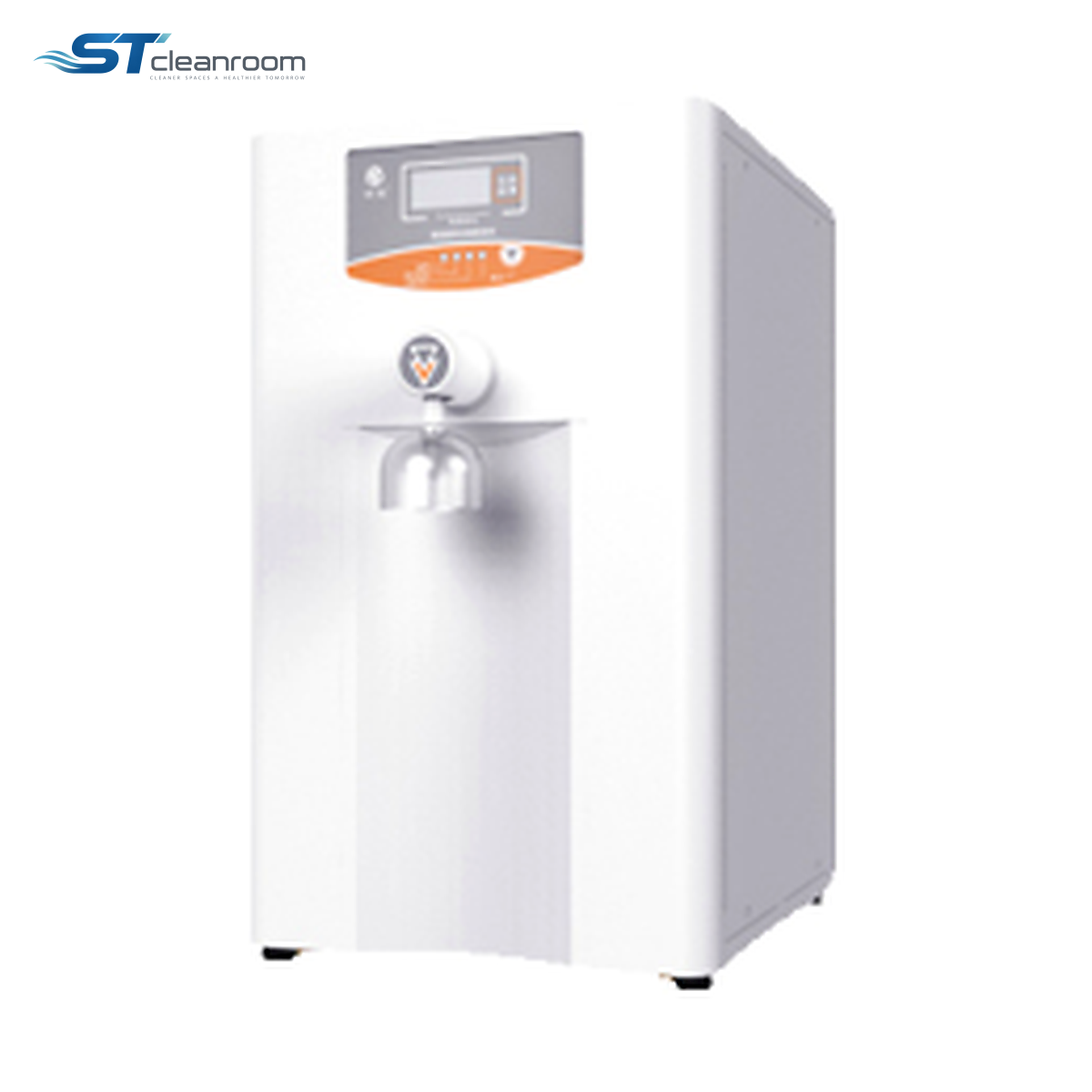

Product view
Cleanroom Pure Water Systems
Laboratory Pure Water System – ST-LPW15 Series
Product specifications
| Brand | ST |
|---|---|
| Public model series | ST-LPW15 |
| Feed-water requirements | municipal tap water; TDS ≤200 ppm, pressure 1.0–5.0 kg/cm², temperature 5–45°C |
| Main unit dimensions | H × W × D: 505 × 300 × 405 (mm) |
| Unit weight | 20-25 kg |
| Power supply and rated power | AC 220 V/50 Hz (power 30-50 W) |
| Storage tank | supplied with 5 gal pressure tank (other sizes optional) |
| Dispensing rate | 1.8-2.0 L/min |
| RO water quality | conductivity ≤1-5 µS/cm (online monitoring) |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laboratory Pure Water System – ST-LPW15 Series provides RO water for routine laboratory work from a compact unit with a separate pressure tank. It is useful where rinsing and general preparation need a nearby supply but a tall cabinet would occupy valuable working space.
The 505 × 300 × 405 mm main unit is paired with a standard 5 gal pressure tank. That tank is part of the installation footprint even though it is separate from the main-unit dimensions; the output models set how quickly stored water is replaced.
MODELS AND DIMENSIONS
Available output models
| Model | Production rate |
|---|---|
| ST-LPW15-010 | 10 L/h at 25°C |
| ST-LPW15-020 | 20 L/h at 25°C |
| ST-LPW15-040 | 40 L/h at 25°C |
| ST-LPW15-060 | 60 L/h at 25°C |
| ST-LPW15-100 | 100 L/h at 25°C |
| ST-LPW15-120 | 120 L/h at 25°C |
Production-rate ratings are stated at the temperature shown in the table.
MODEL DIFFERENCES
Which configuration fits the task
ST-LPW15-020
The 20 L/h model doubles the entry production, reducing the recovery interval needed after the same draw volume.
ST-LPW15-040
At 40 L/h, this version is a step up for repeated solution preparation or rinsing batches over the working day.
ST-LPW15-060
The 60 L/h choice adds ongoing replenishment when preparation jobs follow one another and the tank is drawn repeatedly.
ST-LPW15-100
The 100 L/h model increases sustained production substantially; the standard tank remains 5 gal, so larger burst demand may call for the optional tank sizes.
ST-LPW15-120
At 120 L/h, this is the maximum production option in the series, intended for the greatest repeated consumption rather than a larger standard storage tank.
FEATURES AND BENEFITS
How it helps
Compact RO production
The small main unit places routine water production close to the work without adding an ultrapure-quality claim.
Separate storage allowance
Tank position and connection access can be planned independently from the main cabinet.
APPLICATIONS
Where it is used
Routine laboratory washing
Provide RO water for rinsing and general preparation whose required conductivity fits the selected output.
SYSTEM SELECTION
Allow for the external RO reserve
Cabinet and tank position
Reserve space for both the compact main unit and its separate pressure tank, with a convenient vessel-filling position and accessible connections.
Routine washing batches
Choose production around the water used between washing sessions and the recovery time available before the next draw.
