Separate treatment and delivery conditions
Heating performs the treatment step; the specified tank-inlet limit governs the downstream receiving condition.
PRODUCT GALLERYST

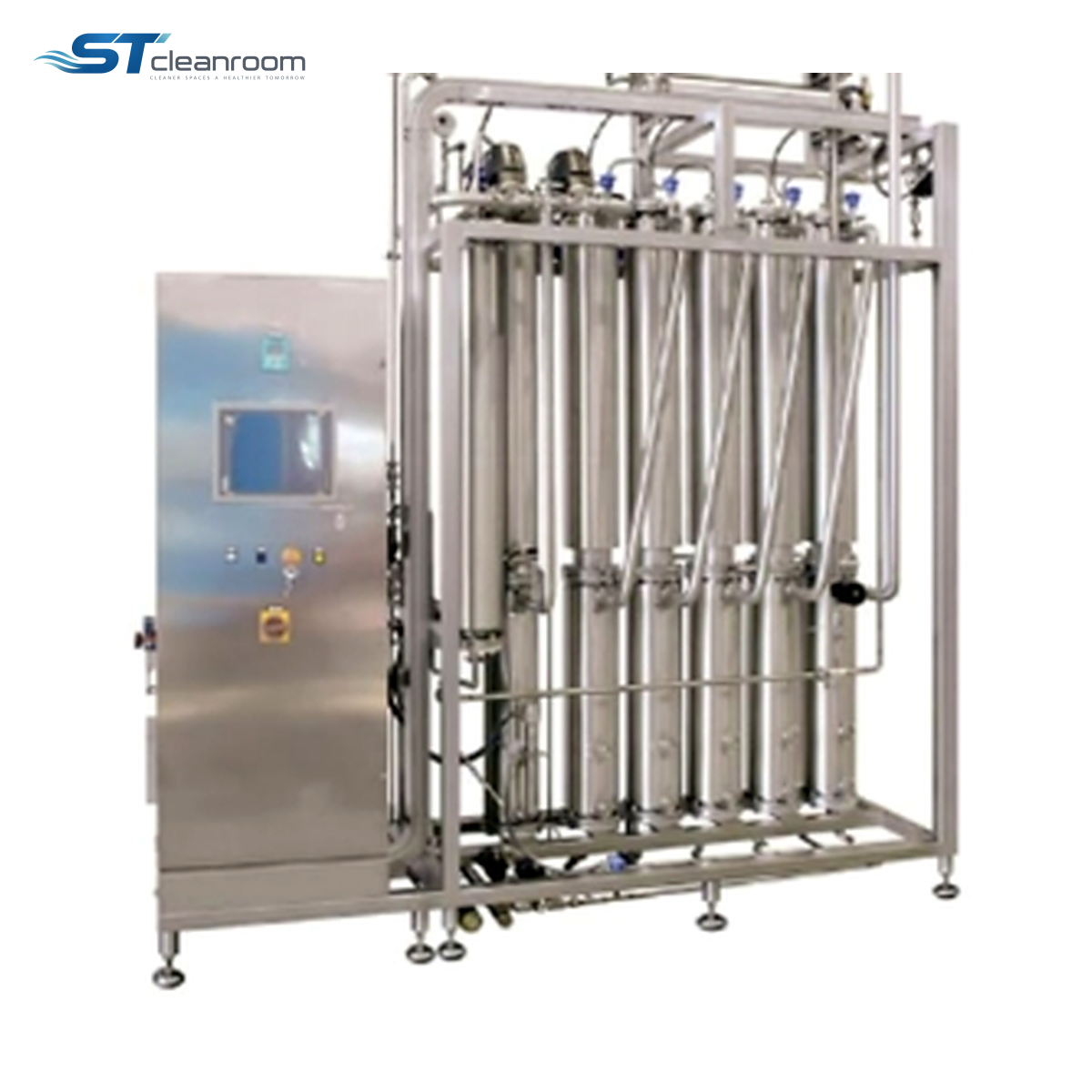

Product view
Cleanroom Pure Water Systems
Laboratory Animal Drinking Water Sterilization System – ST-LPW27 Series
Product specifications
| Brand | ST |
|---|---|
| Public model series | ST-LPW27 |
| Feed-water conductivity | ≤15 µS/cm |
| Water pressure | 1.5–5.0 bar |
| Steam inlet pressure | >90 psi |
| Treatment flow | 15 L/min |
| Sterile-water tank inlet temperature | ≤40°C |
| Operating temperature | ≥120°C |
| Power supply | AC 380 V, 50 Hz, 3 kW |
| Microbial level | ≤10 CFU/100 mL |
| Nominal production | 600–1000 L/h |
| Steam efficiency | 1 kg steam per 25 kg sterile water |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Laboratory Animal Drinking Water Sterilization System – ST-LPW27 Series treats drinking water for laboratory animal facilities using a heated process and a recirculating supply arrangement. It helps organize water production and loop treatment as part of one managed facility system.
Operating temperature, steam supply and the tank-inlet temperature describe different parts of that process. The receiving water is cooled before entering storage, so the high treatment temperature must not be confused with the temperature delivered to the drinking-water system.
FEATURES AND BENEFITS
How it helps
Loop operating modes
Production and compatible pipeline-disinfection operation support planned management of both the unit and distribution route.
APPLICATIONS
Where it is used
Laboratory animal facilities
Supply the designated animal-drinking-water system with an integrated treatment and circulation arrangement.
SYSTEM SELECTION
Coordinate heat treatment and the water loop
Site utilities
Check that the facility can supply the specified steam, feed water and three-phase electrical connection at the proposed treatment location.
Tank and circulation
Coordinate the cooled tank inlet and circulation arrangement with animal-drinking demand and the planned pipeline-treatment cycle.
