Defined corner connection
The shaped section brings the adjoining panel edges together at the turn, helping maintain a consistent corner line.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Square Corner
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5012 |
| Application | Corner connections |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Square Corner joins matching panel edges where a partition changes direction, forming a defined corner connection. It forms a defined corner junction, helping the adjoining panels meet in line rather than leaving their edges unsupported at the turn.
The square section and projecting legs provide a shaped connection for matching panel-edge details. Cut the profile to the required corner height and fit the adjoining edges to the section.
FEATURES AND BENEFITS
Form the panel corner junction
Continuous edge engagement
A profile cut to the corner height provides a continuous connection along the matching panel-edge detail.
APPLICATIONS
Where it is used
Panel partition corners
Connect adjoining panel runs at a change of direction where their edge details fit this square corner section.
INSTALLATION AND SELECTION
Match the corner detail
Section fit

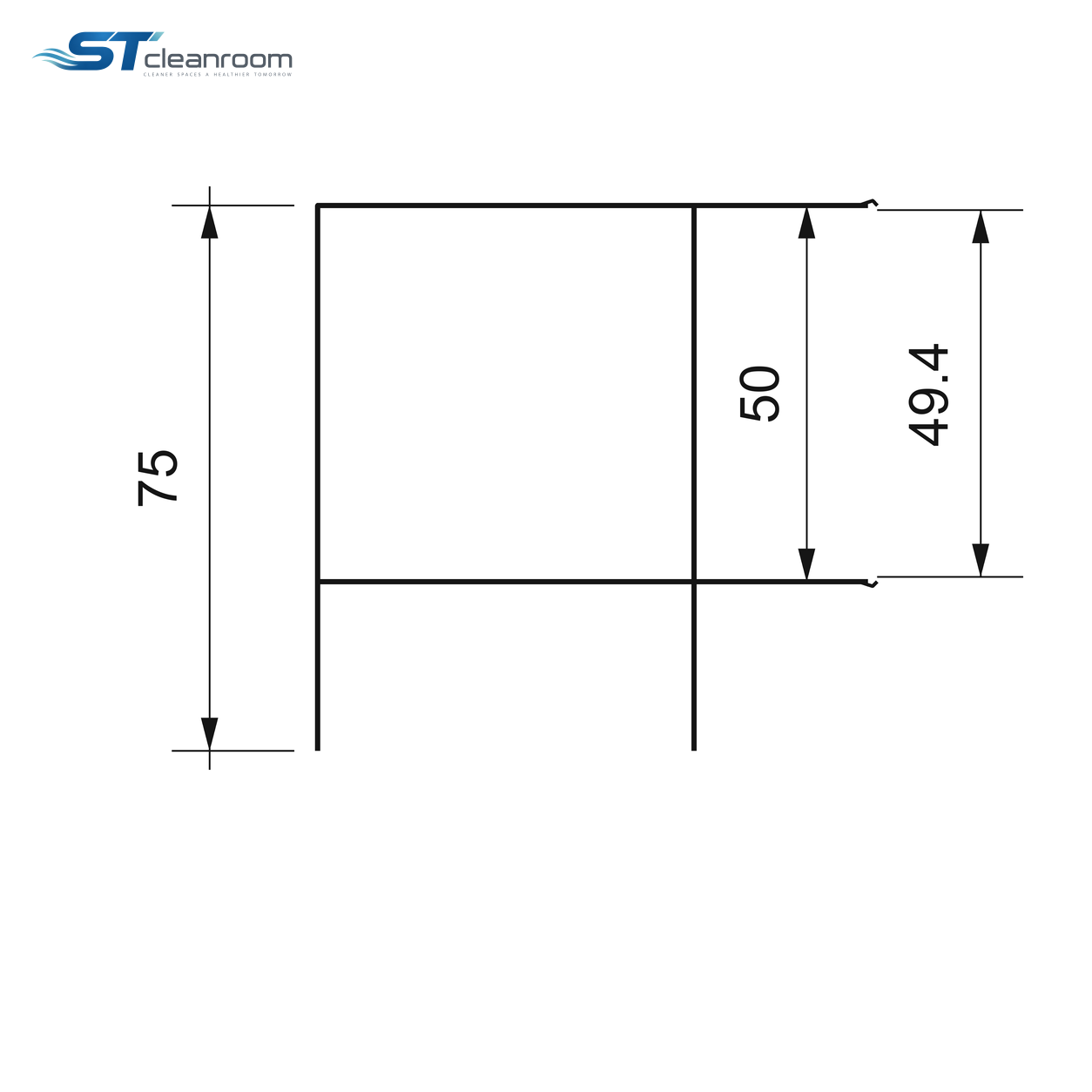

Match the square body and projecting legs in the dimension drawing to the panel-edge connection.
Corner height and finishing
Cut the profile to the installed height and coordinate the ends with the adjoining floor and ceiling trims.
FAQ
Common questions
What does the main image show?
It shows the square corner connection installed between panels, with the adjacent corner finishing components.
