Integrated receiver and cove
The panel locating groove and rounded transition belong to the same section, keeping their positions coordinated.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Aluminum U-Channel with Single Inner Cove
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5006 |
| Application | Panel fixing and integrated internal vertical corner transition |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Aluminum U-Channel with Single Inner Cove locates a panel edge in a U-shaped receiver while forming an integral cove on one side of an internal vertical corner. It fixes the panel edge while forming a rounded transition at an internal vertical corner, bringing panel location and corner finishing into one section.
The curved face spans the exposed internal angle so routine wiping can follow the junction. The receiver remains behind the corner detail, helping keep the panel connection and curved finish aligned along the wall height.
FEATURES AND BENEFITS
Panel fixing and corner finishing together
Single-sided curved face
The cove finishes the exposed internal angle where a recessed junction would be harder to reach with a cleaning cloth.
APPLICATIONS
Where it is used
Internal vertical panel corners
Use where a panel edge needs fixing beside an adjoining wall and the exposed side requires a rounded transition.
INSTALLATION AND SELECTION
Match the corner assembly
Receiver fit

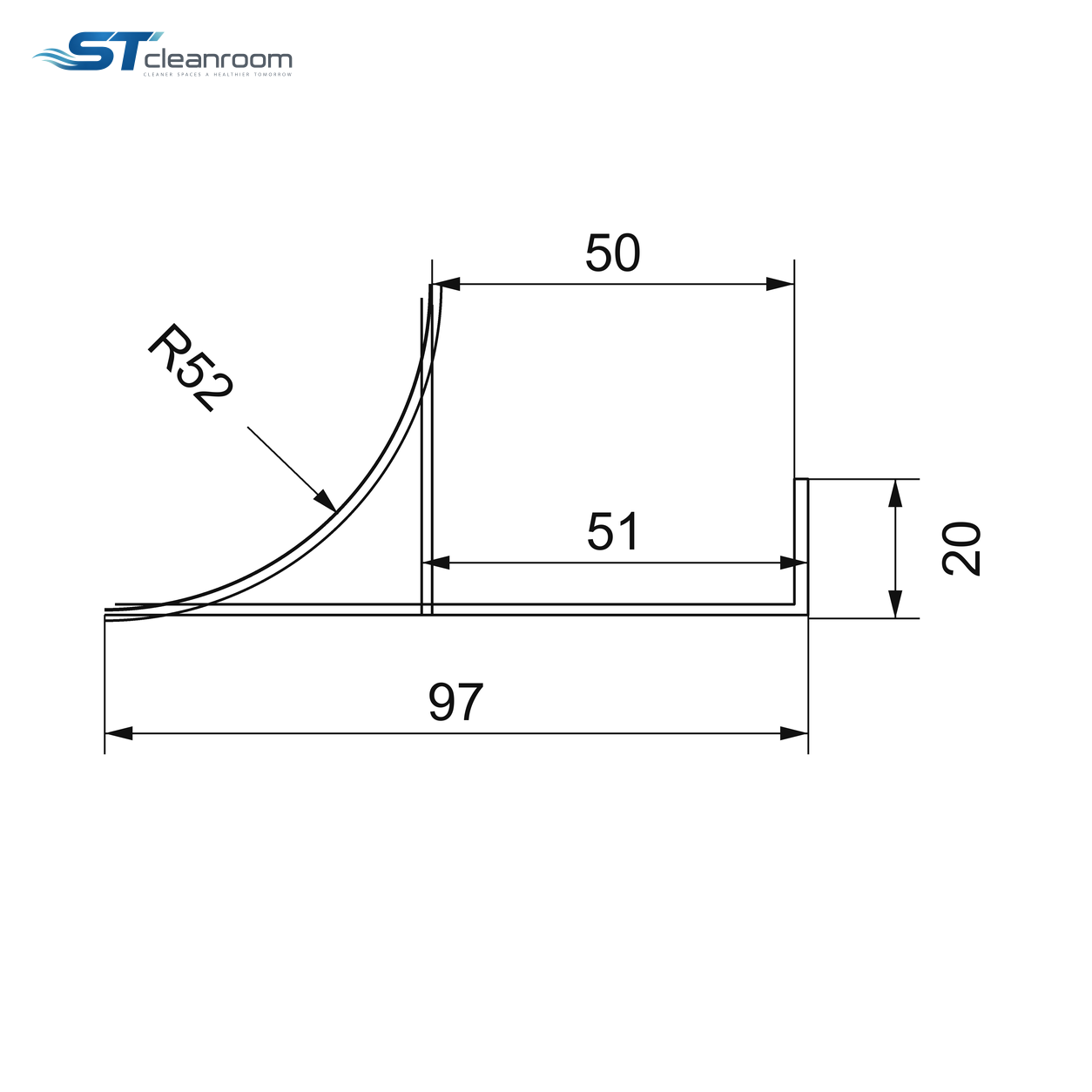

Use the supplied cross-section drawing to match the groove to the actual panel edge and fixing arrangement.
Cove orientation
Position the curved face toward the exposed internal corner and align its ends with the adjoining trims.
