Continuous location
The receiving arms guide the matching cover along the installed base.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Internal Cove Base
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5004 |
| Application | Compatible with internal cove profiles |
| Thickness | 1.4 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Internal Cove Base locates and supports a matching cove cover through a continuous concealed fixing line at the wall corner. Its angled mounting section sits behind the curved cover and provides a continuous fixing line along the junction.
The two inclined receiving arms accept the cover's compatible rear attachment detail. Aligning the base helps the finished cove follow the corner evenly while keeping its fixing points behind the visible surface.
FEATURES AND BENEFITS
Support the curved cover
Concealed fixing arrangement
The base holds the mounting detail behind the curved cover, leaving the finished face clear.
APPLICATIONS
Where it is used
Internal cove assemblies
Fit behind a compatible internal cove cover at the adjoining wall corner.
INSTALLATION AND SELECTION
Match the base and cover
Receiving-arm fit

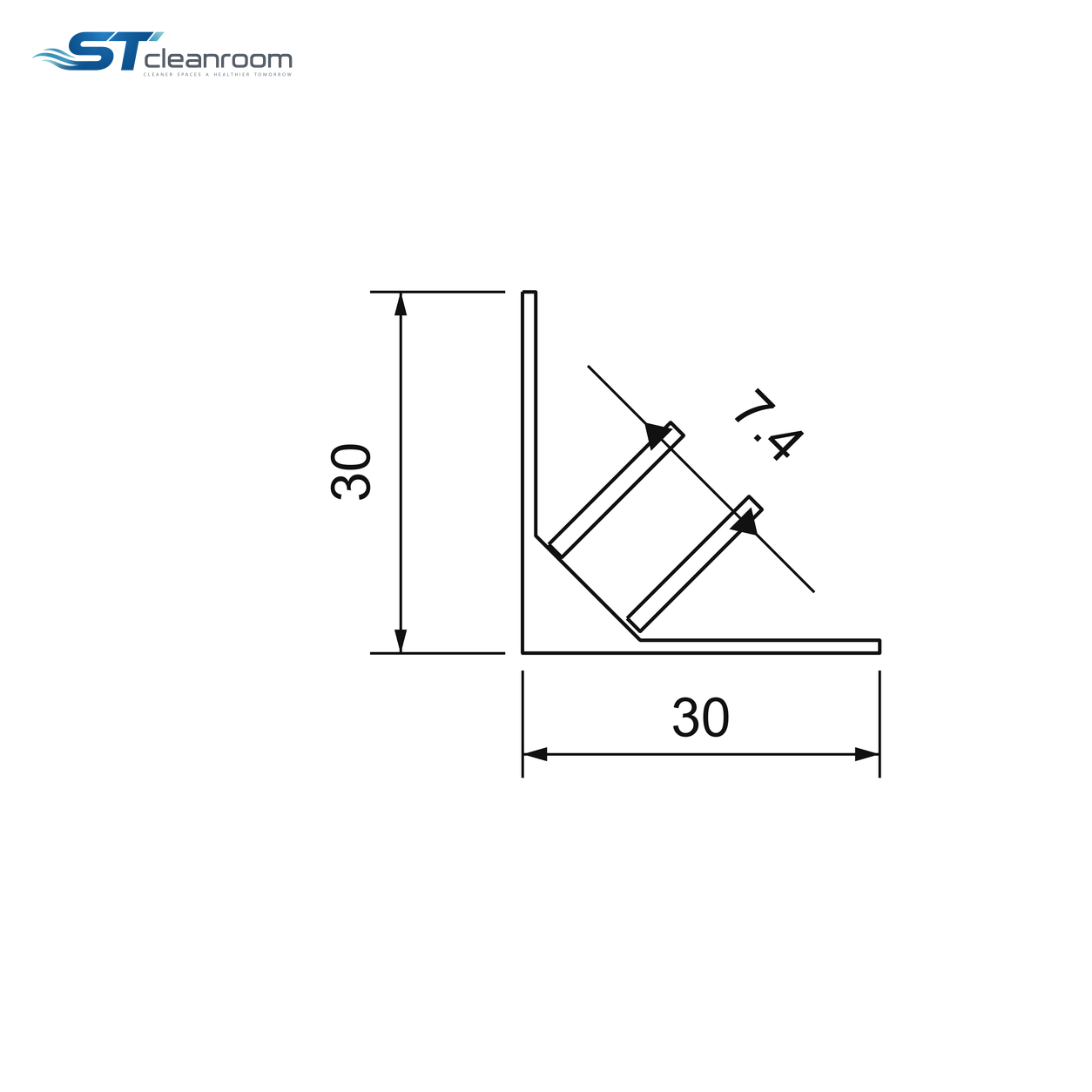

Match the cover's rear attachment to the base section shown in the dimension drawing.
Straight mounting line
Use fixings suited to the wall substrate and keep the base aligned before fitting the cover.
