Rounded outer face
The curved section replaces a sharp exposed intersection at the outside corner.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
External Rounded Corner Post
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5005 |
| Application | 90° panel corners |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
External Rounded Corner Post finishes external 90° turns between panel runs with a curved face covering the projecting junction. Its curved outer face covers the projecting junction, giving the corner a rounded surface instead of leaving panel edges exposed.
The rear section fits into a matching panel corner assembly, keeping the connection behind the exposed curved face. It gives partition corners and enclosure returns a continuous finish that can be wiped along the curve.
FEATURES AND BENEFITS
A finished external turn
Covered panel junction
The profile spans the meeting edges so the corner has one continuous visible finish.
APPLICATIONS
Where it is used
External panel-wall corners
Finish outward-facing 90° turns in panel partitions and enclosure returns with a compatible corner connection.
INSTALLATION AND SELECTION
Fit the panel corner
Rear connection

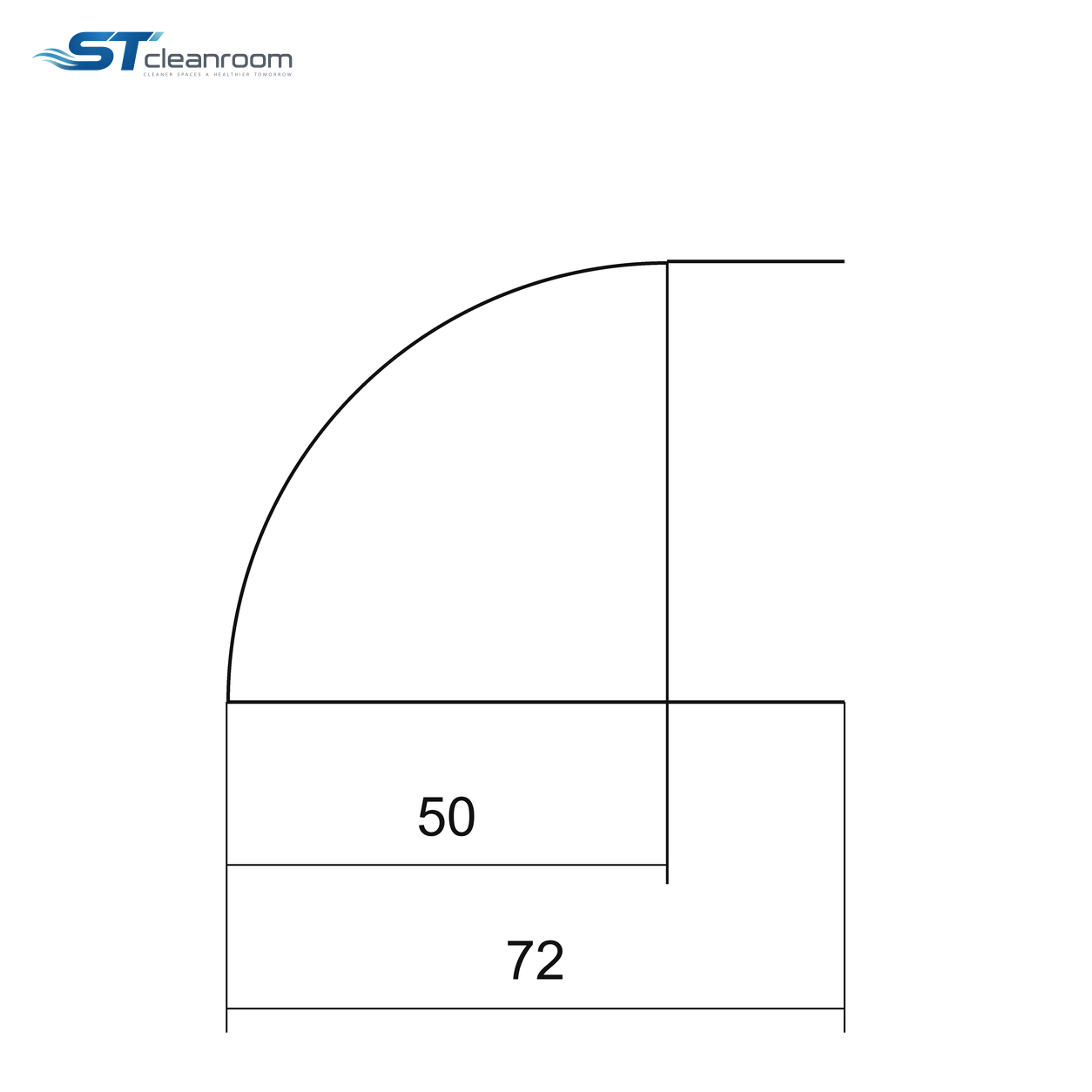

Match the section drawing to the adjoining panel edges and corner assembly before installation.
Corner terminations
Align the profile ends with adjoining trims to maintain the rounded finish along the wall height.
