Curved corner face
The broad radius bridges the internal angle so a cleaning cloth can follow the junction.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Internal Cove
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5003 |
| Application | Internal vertical corner transition |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Internal Cove creates a rounded transition at internal vertical wall corners, covering the recessed angle with a continuous wiping surface. The curved cover spans the recessed angle and leaves a continuous face that is easier to wipe.
The rear attachment detail connects the cover to a compatible base, keeping the support behind the exposed curved surface. It finishes panel corners where a sharp recess is difficult to reach during routine cleaning.
FEATURES AND BENEFITS
A rounded wall junction
Rear attachment
The cover connects to its matching base through the rear section, leaving the rounded face exposed.
APPLICATIONS
Where it is used
Internal vertical wall corners
Finish adjoining wall panels in interiors where the corner surfaces need regular wiping.
INSTALLATION AND SELECTION
Fit the complete corner detail
Compatible base

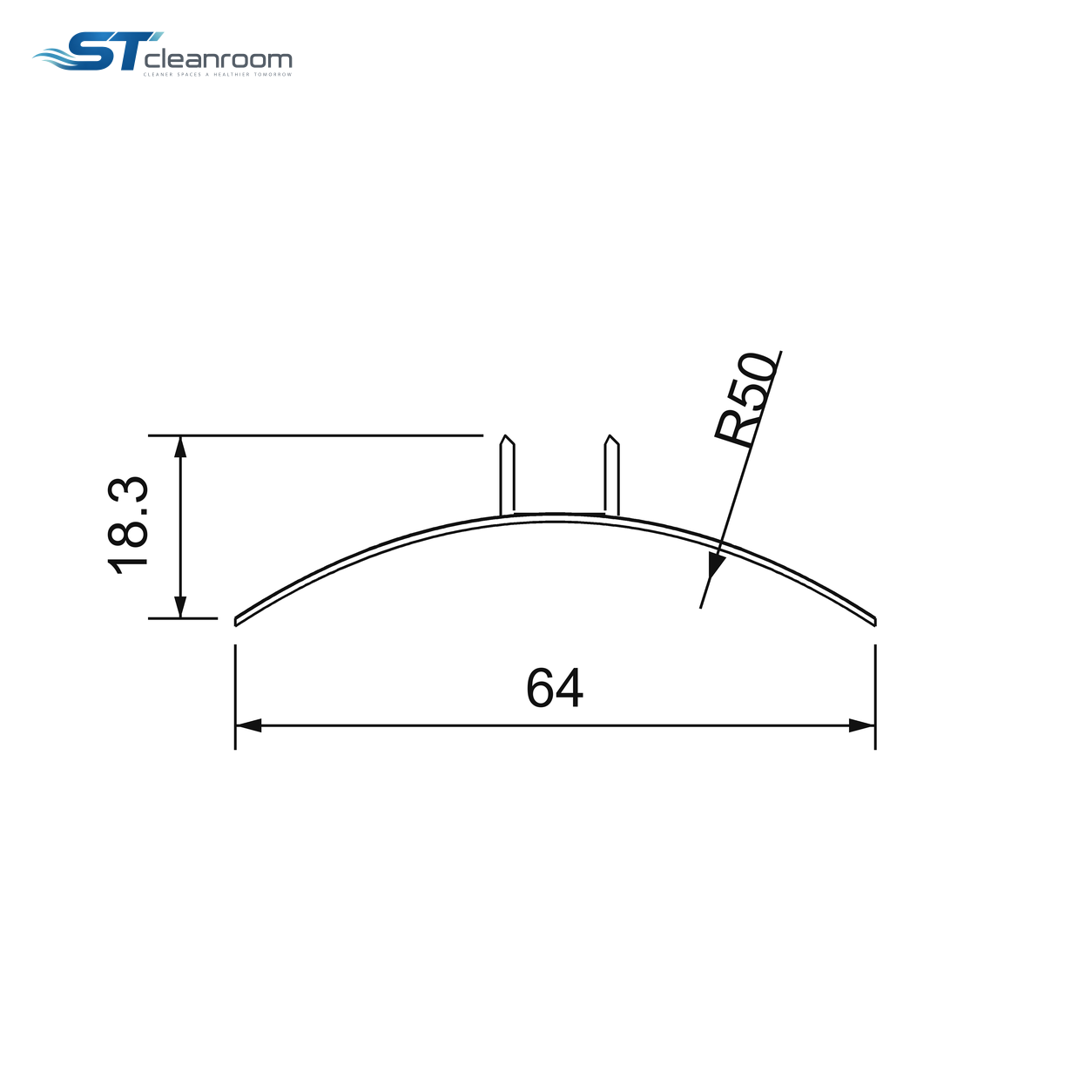

Match the rear attachment tabs to the base using the supplied section drawing.
Ends and adjoining trims
Fit the ends against compatible corner pieces or trim terminations to keep the curved transition continuous.
