Seating on both sides
The lower flanges provide continuous ledges for matching module edges on either side of the grid member.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
FFU Grid-1
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5016 |
| Application | FFU suspended ceilings; compatible LED lights can be installed |
| Thickness | 1.15 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
FFU Grid-1 provides broad seating flanges for FFUs and infill modules around a divided hollow web and upper retaining channel. Its broad lower flanges locate the module edges along the ceiling run, helping create an orderly arrangement of units and infill panels.

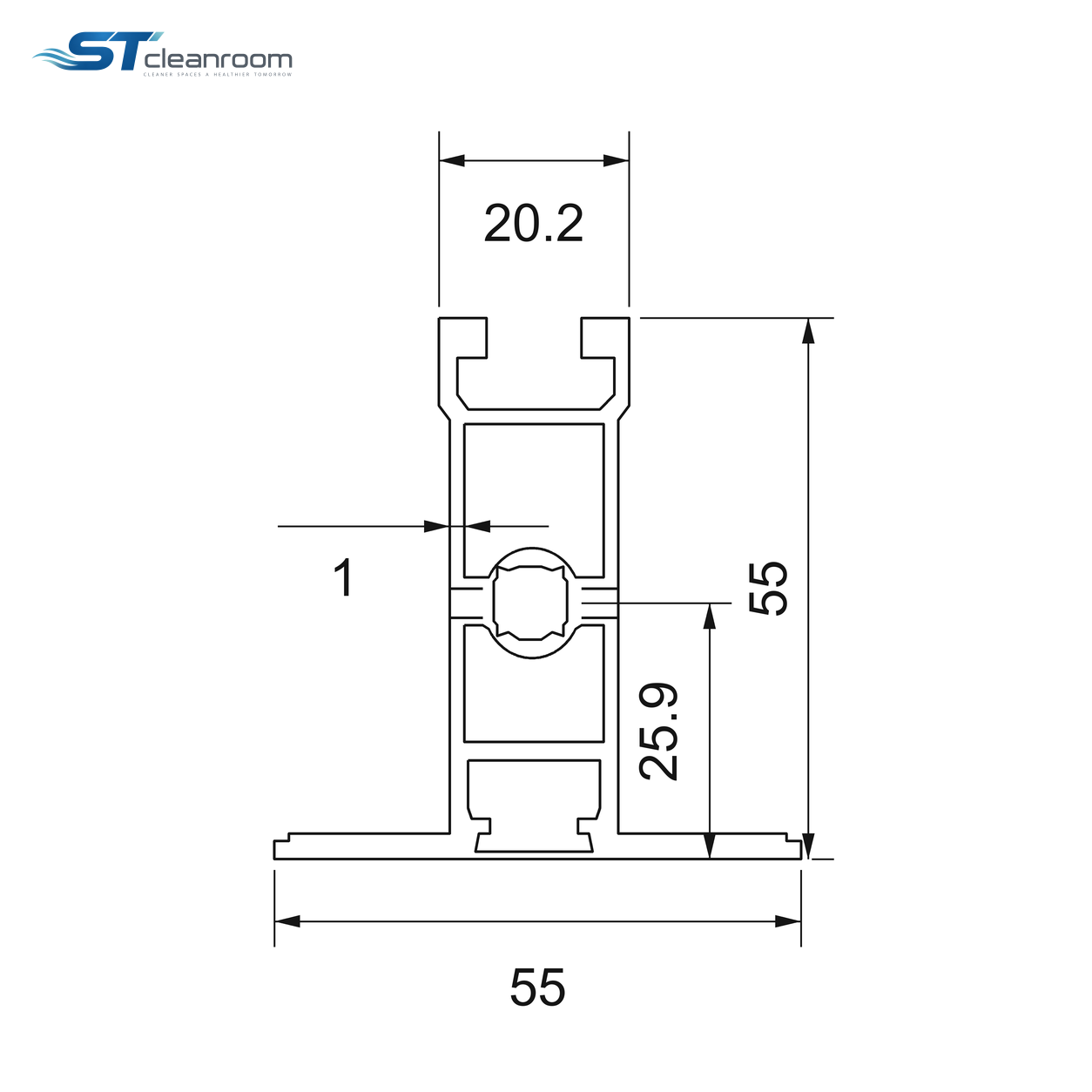

The section combines an upper channel with retaining lips and a divided hollow web. Use matching grid connections and suspension details to complete the assembly; compatible LED lights can be installed within the FFU ceiling layout.
FEATURES AND BENEFITS
Build the FFU ceiling seating detail
Shaped connection interfaces
The upper retaining lips and hollow web define the section for matching connections, helping keep adjoining grid members aligned.
APPLICATIONS
Where it is used
Suspended FFU ceilings
Use as a grid member where matching fan filter units and ceiling infill are arranged within a suspended ceiling.
FFU layouts with LED lighting
Coordinate compatible LED fixtures with the filter-unit positions so lighting and air supply share the planned ceiling layout.
INSTALLATION AND SELECTION
Fit the grid and lighting details
Connection fit
Match the retaining channel, web and lower flanges to the selected grid connectors and module edge details.
LED mounting arrangement
Choose lighting with mounting details that fit the finished ceiling assembly and leave the FFU positions accessible.
FAQ
Common questions
Can LED lighting be fitted?
Yes. Compatible LED fixtures can be installed as part of the FFU ceiling assembly, with their mounting details coordinated with the grid.
PROCUREMENT / INQUIRY
Request a
product quotation.
Tell us the quantity and configuration you need. This product will be included automatically.
