Coved on both sides
Each wing spans an internal angle, giving both exposed sides a curved surface for routine wiping.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Aluminum U-Channel with Double Inner Coves
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5007 |
| Application | Panel fixing and integrated internal vertical corner transitions |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Aluminum U-Channel with Double Inner Coves combines a central panel receiver with curved wings on both sides to finish an internal vertical junction. This section combines panel fixing with rounded transitions on both sides of an internal vertical junction, so neither exposed face is left with an unfinished recessed angle.
The two coves continue along the same profile as the panel receiver. They provide a surface that can be wiped on each side and keep both corner finishes aligned with the fixed panel, without fitting separate cove strips beside the channel.
FEATURES AND BENEFITS
Two corner finishes around one receiver
Common fixing section
The receiver and paired coves share one base, coordinating the panel position with both corner finishes.
APPLICATIONS
Where it is used
Panel junctions with two exposed sides
Use at internal vertical corner assemblies where the panel needs fixing and both adjoining faces require a rounded transition.
INSTALLATION AND SELECTION
Fit both sides of the junction
Receiver and overall footprint

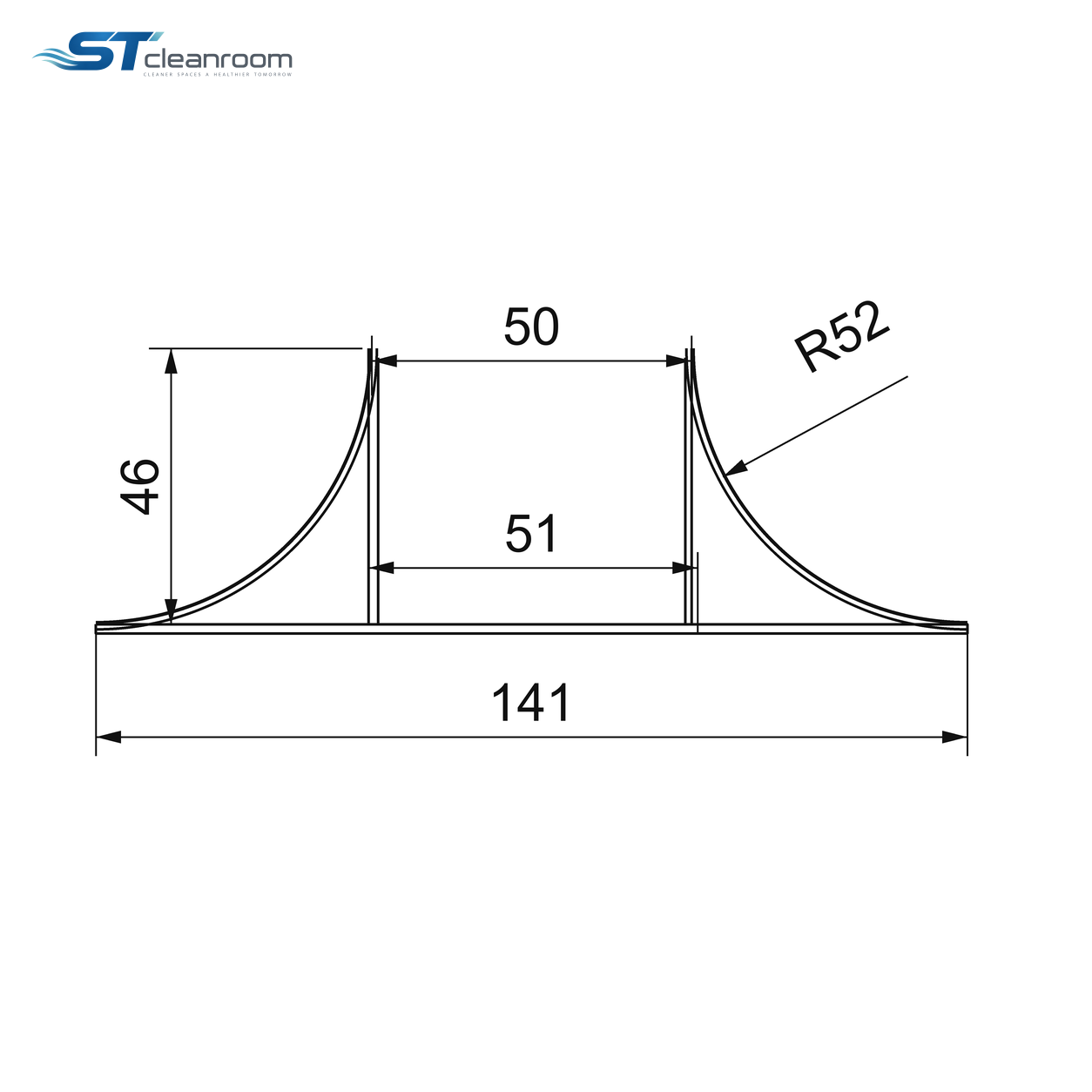

Match the section drawing to the panel edge and allow space for the full base and both curved wings.
Adjacent finishes
Align each cove edge with its adjoining surface and fit the ends to the relevant trims so both sides remain continuous.
