Cupped upper connection
The upper channel gives compatible suspension hardware a defined location along the beam.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Suspension Beam-1
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5011 |
| Application | Ceiling panel fixing |
| Thickness | 1.5 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Suspension Beam-1 fixes ceiling panels through a cup-shaped upper channel and lower supporting flange. The upper channel has inward-facing lips for the matching suspension connection, while the flange provides a seating line for panel edges.
The upright web links these two parts along the beam. It keeps the hanger connection above the panel support line, allowing the ceiling joint and suspension hardware to be coordinated within one section.
FEATURES AND BENEFITS
Separate connection and seating levels
Lower panel support
The flange extends to both sides of the web, giving adjacent panel edges a common seating level.
APPLICATIONS
Where it is used
Suspended panel ceilings
Use with a panel-edge detail and hanging connection designed to fit the cup-section beam.
INSTALLATION AND SELECTION
Match the cup and panel seating detail
Channel connection

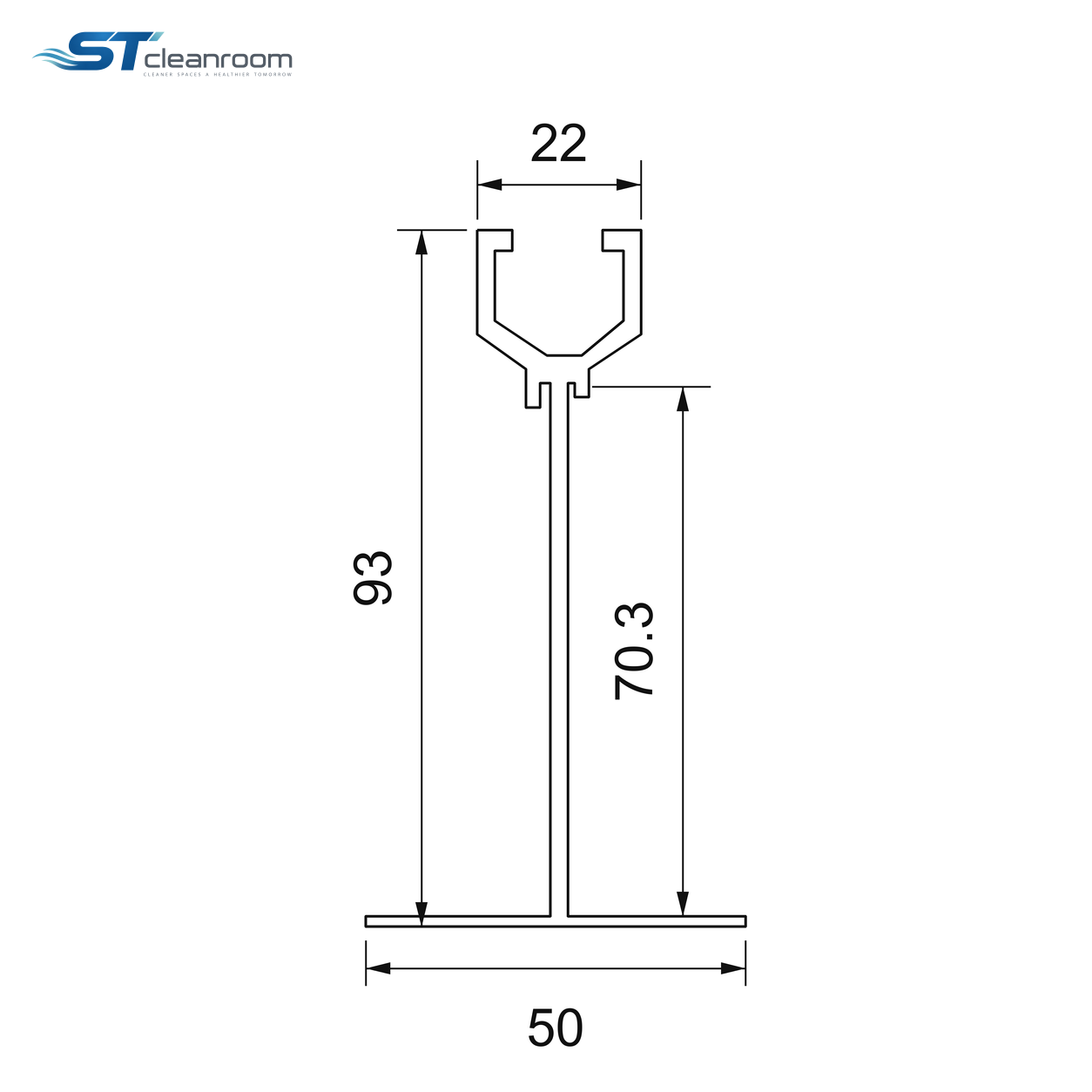

Match the hanger fitting to the upper opening, inward lips and channel shape shown in the section drawing.
Ceiling layout
Coordinate panel bearing, beam connections and suspension spacing with the project ceiling design.
