Continuous seating flange
The flange gives adjoining panel edges a common support line along the ceiling joint.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Suspension Beam
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5010 |
| Application | Ceiling panel fixing |
| Thickness | 1.9 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.

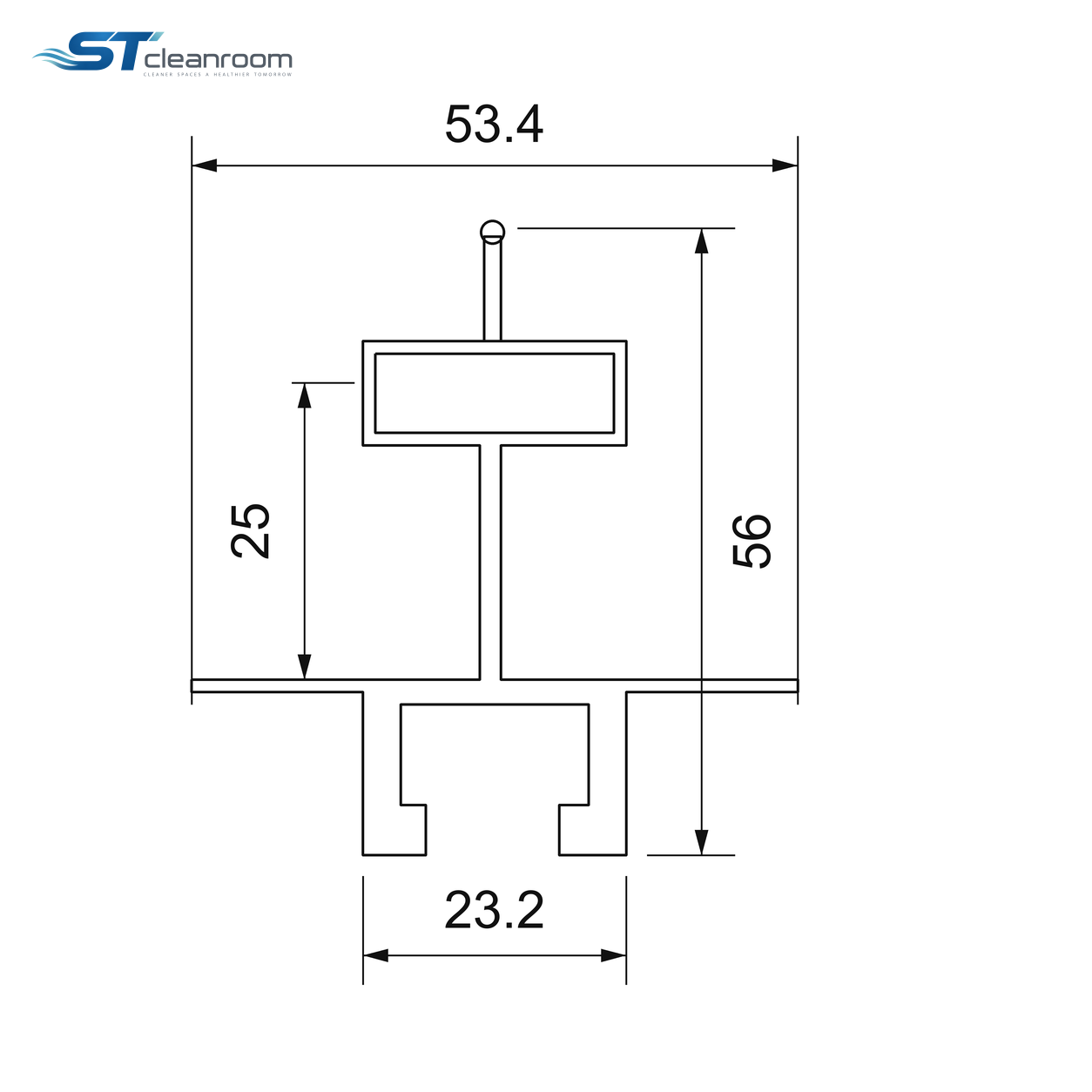

Suspension Beam supports ceiling panels through a matching joint and suspension assembly, using its horizontal flange as a continuous seating line. Its horizontal flange provides a continuous seating line, while the central web connects the flange to the hollow upper member.
A shaped receiving channel beneath the flange forms part of the connection detail. The combined section brings the panel seating and fixing interfaces into one profile, helping adjoining ceiling edges remain aligned along the beam.
FEATURES AND BENEFITS
Panel seating and joint connection in one section
Shaped lower connection
The lower channel and inward returns provide a defined interface for the matching ceiling joint components.
APPLICATIONS
Where it is used
Panel ceiling joint assemblies
Use where the panel-edge connection and suspension arrangement match the beam section.
INSTALLATION AND SELECTION
Coordinate the complete ceiling joint
Section fit
Match the flange, receiving channel and upper connection detail to the actual ceiling-panel assembly.
Suspension layout
Set the hanger positions and beam connections for the panel span and ceiling load in the project design.
