Flange on both sides
Panel edges can seat beside the upright web on one continuous supporting flange.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
T-Shaped Suspension Beam
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5009 |
| Application | Ceiling panel fixing |
| Thickness | 1.7 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.

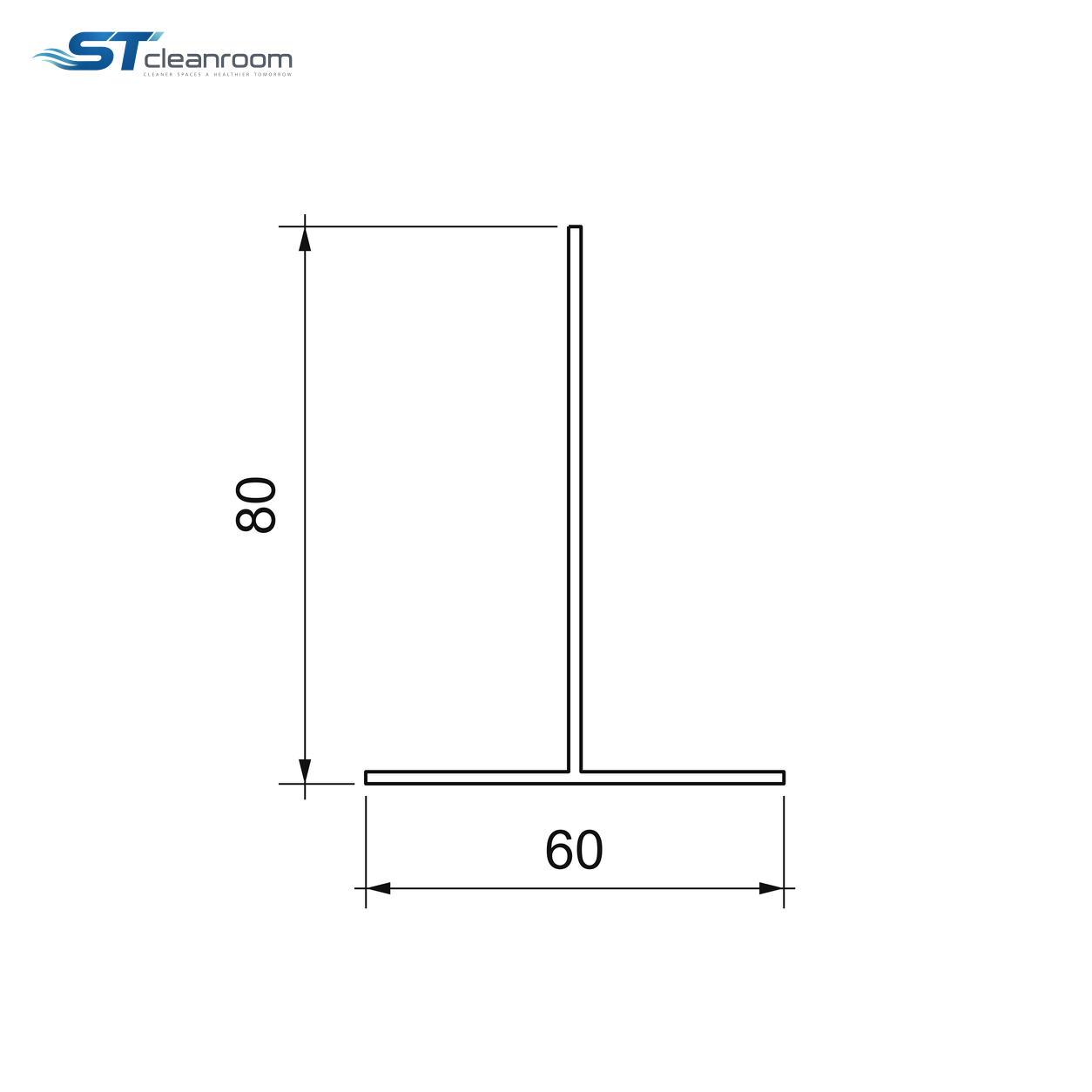

T-Shaped Suspension Beam forms a shared fixing and support line where adjacent ceiling-panel edges meet. The lower flange extends on both sides of the upright web, providing a common seating surface for adjacent ceiling-panel edges.
Used with the matching suspension and connection details, the beam helps keep panel edges at the same level along the ceiling joint. Its continuous flange supports the panel run while the upright web forms part of the ceiling framework.
FEATURES AND BENEFITS
A common support line for adjoining panels
Joint alignment
A shared seating level helps neighboring ceiling panels meet evenly along the beam.
APPLICATIONS
Where it is used
Suspended panel ceilings
Use in ceiling assemblies with panel edges, beam connections and hangers designed to work together.
INSTALLATION AND SELECTION
Coordinate the ceiling support
Panel bearing
Match the lower flange to the panel-edge seating detail and keep the adjoining edges aligned.
Beam and hanger layout
Set the beam connections and suspension spacing for the panel span and ceiling load in the project design.
