Edge location
The channel keeps the panel aligned along its mounting line.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Aluminum U-Channel
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5001 |
| Application | Panel fixing / panel edge finishing |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Aluminum U-Channel locates a panel edge and finishes its perimeter through a U-shaped section with a base fixing surface. The base provides a fixing surface, while the two side walls locate the panel and cover its exposed edge for a neat connection.
Use it as a receiver along compatible panel boundaries or as an edge trim at panel terminations. A continuous channel helps keep the installation line straight and avoids leaving the panel edge exposed.
FEATURES AND BENEFITS
How it helps
Covered panel edge
The channel encloses the panel end and gives the installer a repeatable locating position.
APPLICATIONS
Where it is used
Wall panel installation
Use along a compatible panel mounting line to locate the panel edge and provide a fixing base.
Panel edge finishing
Use at panel terminations to cover the exposed edge and form a straight, finished boundary.
INSTALLATION AND SELECTION
Match the panel and substrate
Match the panel and substrate

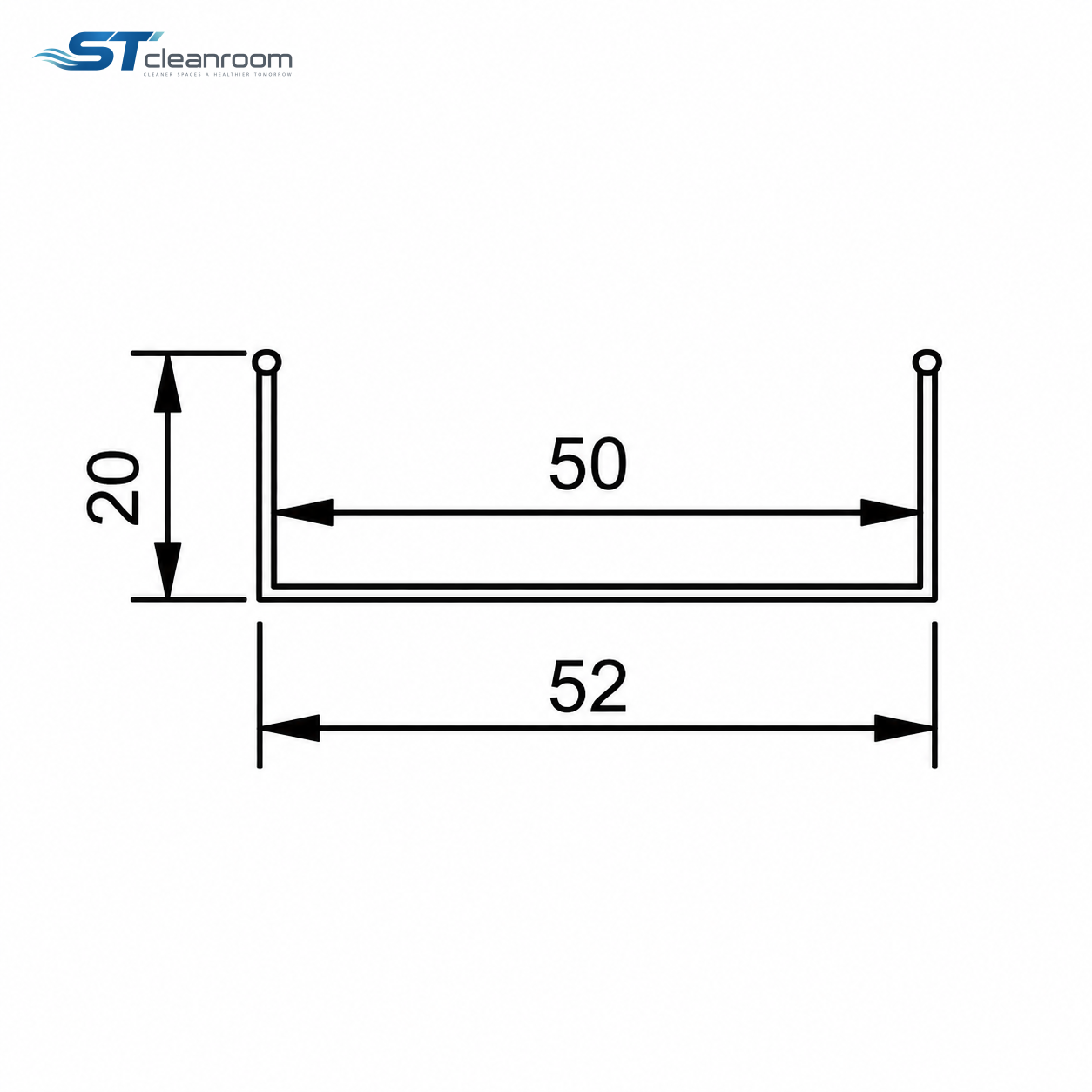

Match the panel thickness to the opening shown in the dimension drawing, and use fixings suited to the mounting surface.
Choose the finish
Select anodizing, fluorocarbon coating or electrophoretic coating to match the surrounding panel finish and project requirements.
