U-shaped receiver
The upright sides guide the panel edge while the base provides a defined fixing line.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Aluminum U-Channel-1
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5002 |
| Application | Panel fixing / panel edge finishing |
| Thickness | 1.5 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Aluminum U-Channel-1 receives and fixes a panel edge between two upright sides, combining panel positioning and perimeter finishing. It combines panel positioning and edge finishing, leaving a straight metal boundary around the panel end.

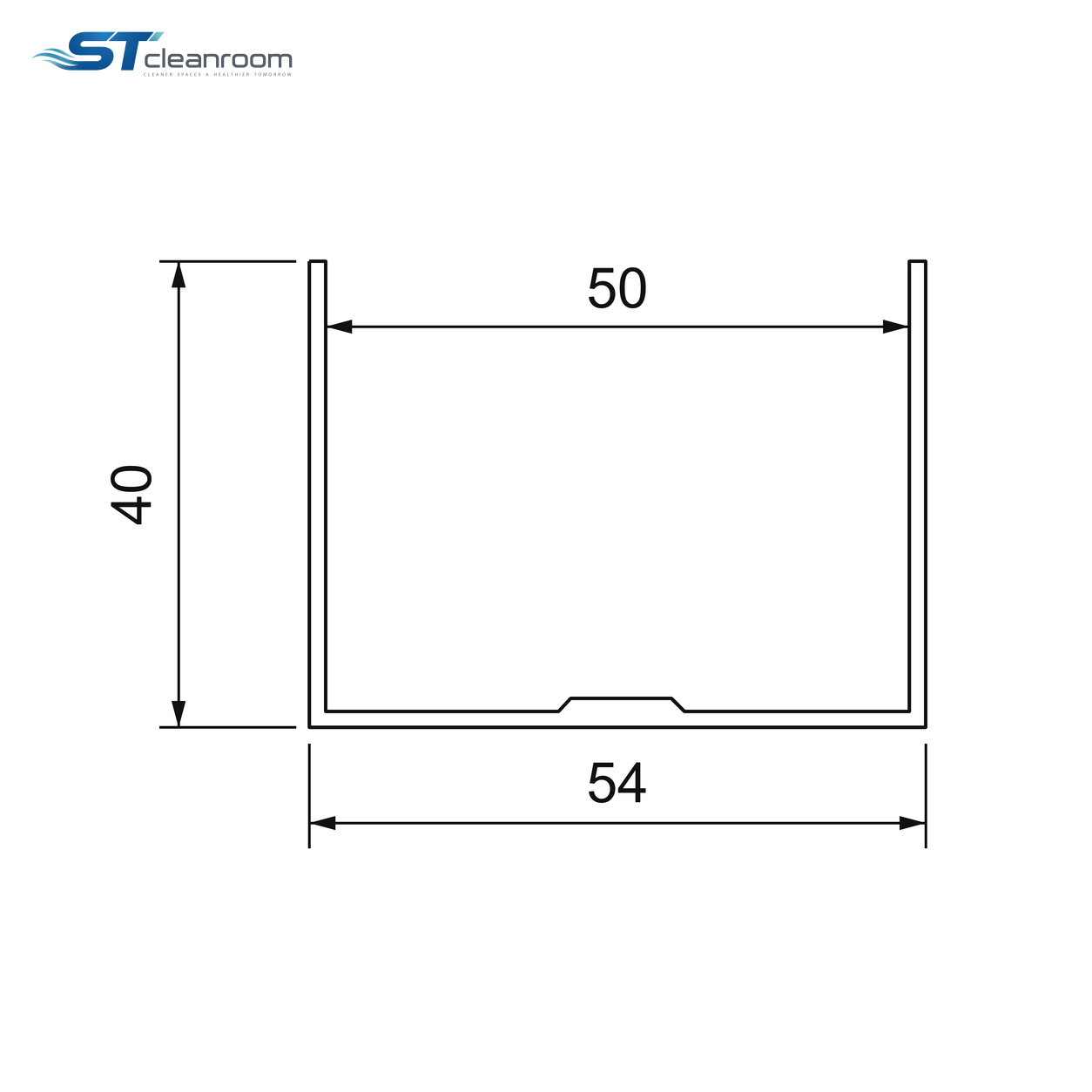

The deeper section surrounds more of the panel edge at perimeter connections. Choose the fit using the section drawing, including the small step at the centre of the base, so the panel can seat correctly within the channel.
FEATURES AND BENEFITS
Position and finish the panel edge
Perimeter finish
The channel covers the panel end to leave a continuous metal boundary at the connection.
APPLICATIONS
Where it is used
Panel assembly
Fix the channel to the mounting surface as an edge receiver for a compatible panel.
Exposed panel terminations
Fit the profile around a panel end where the edge needs a continuous finishing trim.
INSTALLATION AND SELECTION
Check the seating detail
Opening and base clearance
Use the dimension drawing to match the panel edge to the channel opening, and allow for the central step in the base.
Fixings and finish
Use fixings suited to the mounting surface, and choose a surface treatment that matches the surrounding panels.
