Continuous edge finish
The channel covers the matching panel edge, giving the removable panel a defined metal perimeter.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
h-Section Aluminum
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5013 |
| Application | Making removable panels |
| Thickness | 1.0 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
h-Section Aluminum locates the edge of a removable panel in an asymmetric channel with an extended adjoining leg. Its channel receives the matching panel edge, providing a defined location and a continuous metal edge around the panel.
One leg extends beyond the channel to form the adjoining edge detail. The asymmetric section helps align the panel with its surrounding frame when used with a matching removable-panel connection.
FEATURES AND BENEFITS
Shape and locate the panel edge
Asymmetric connection detail
The extended leg provides an adjoining edge detail for locating the panel within its matching frame.
APPLICATIONS
Where it is used
Removable partition panels
Use in panel assemblies designed to be removed for access, with the surrounding frame and fixings arranged for that purpose.
INSTALLATION AND SELECTION
Fit the removable panel assembly
Panel and frame fit

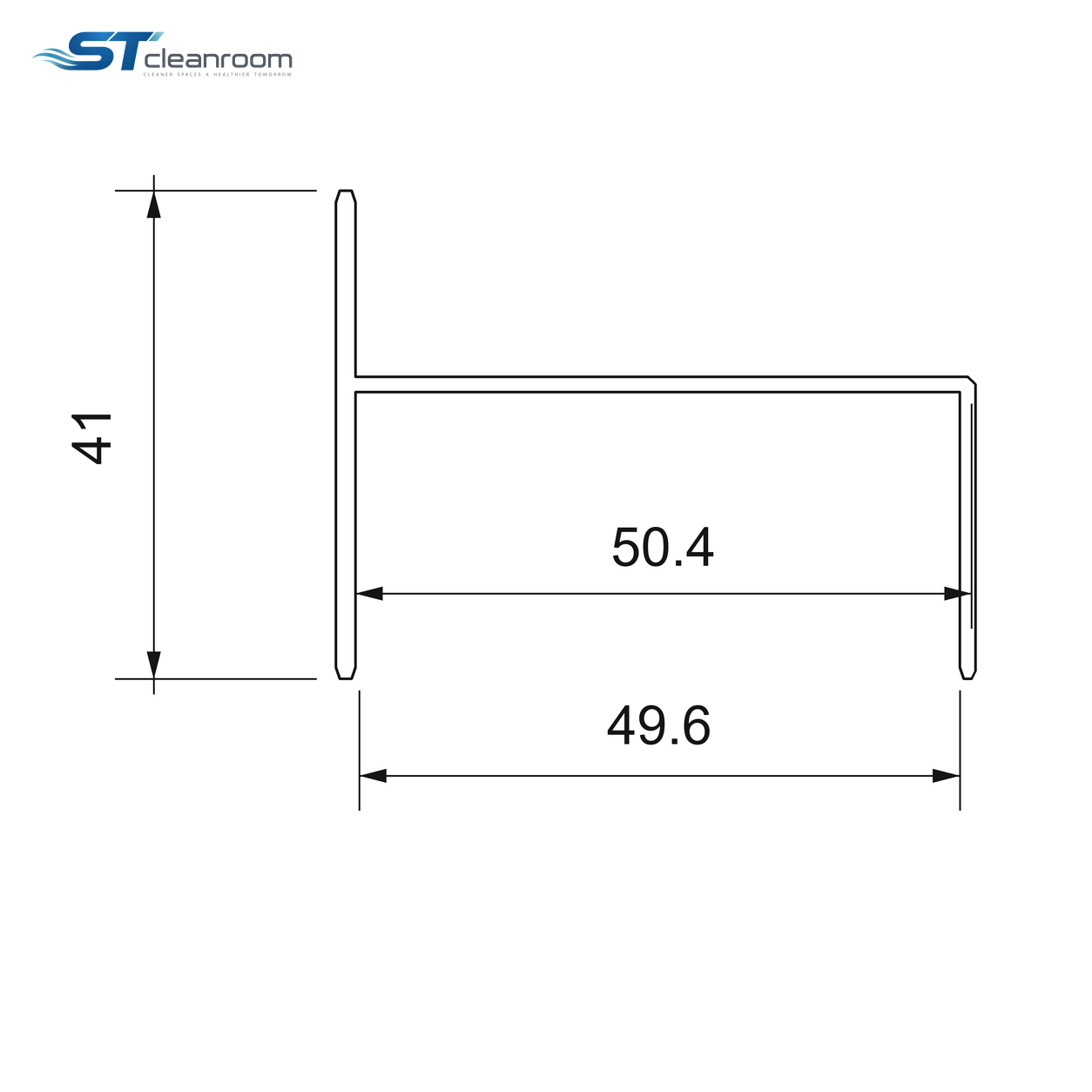

Match the channel opening and extended leg to the actual panel edge and surrounding frame using the dimension drawing.
Removal clearance
Arrange the frame, fixings and clearance so the finished panel can be removed without trapping its extended edge.
