Continuous panel alignment
The profile locates both adjoining edges along the joint, helping maintain a consistent panel run.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
H-Section Aluminum
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5008 |
| Application | Joining adjacent handmade panels |
| Thickness | 0.8 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
H-Section Aluminum connects adjacent handmade panels through their matching frame grooves, locating the edges along a continuous joint. It provides a continuous locating member inside the joint, helping the neighboring panel edges meet in line.
The hollow central section has webs projecting above and below it to engage the panel-edge detail. The connection sits within the framed assembly, keeping the joining detail behind the panel faces.
FEATURES AND BENEFITS
Connect the framed panel joint
Connection within the frame
The hollow body and projecting webs fit the matching edge detail rather than covering the panel faces.
APPLICATIONS
Where it is used
Framed handmade-panel partitions
Join neighboring panels where their frame grooves are designed to receive this connector section.
INSTALLATION AND SELECTION
Match the frame groove
Cross-section fit

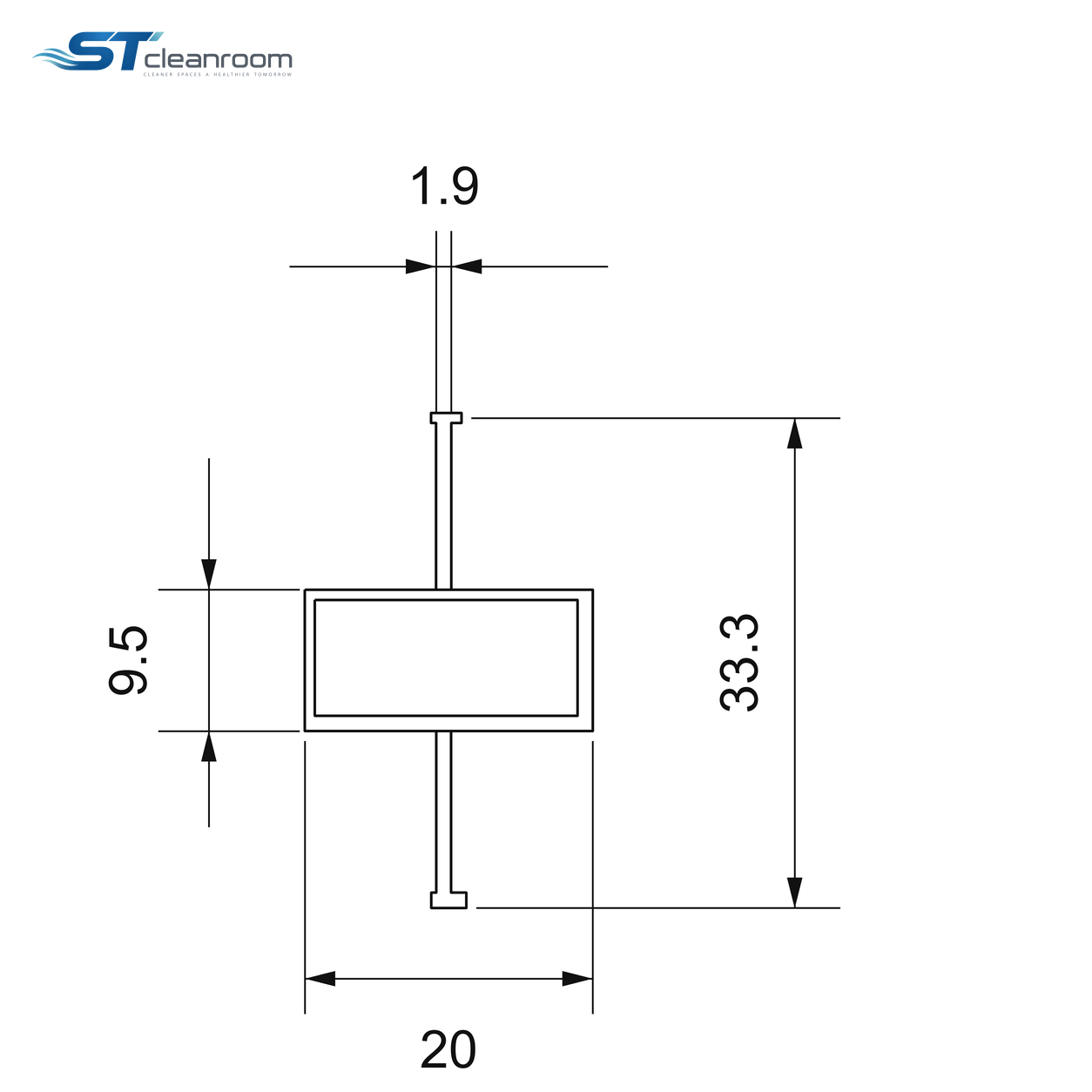

Use the dimension drawing to match the hollow body and projecting webs to the actual panel-frame grooves.
Joint terminations
Fit the connector length to the panel run and its corner or opening trims so the adjoining edges can seat correctly.
