Rounded external transition
The formed apex provides a continuous transition across the exposed corner instead of leaving adjoining panel edges bare.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
135° External Rounded Corner Post
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5014 |
| Application | 135° external corner connections |
| Thickness | 1.2 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon coating / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
135° External Rounded Corner Post connects adjoining panel runs at a 135° external corner, carrying the rounded finish along the installed height. Its shaped section brings the panel edges into one continuous junction, helping maintain a defined corner line along the installed height.
The outer apex has a rounded transition, while the internal webs and projecting legs form the connecting detail. Use the profile with matching panel edges to finish the exposed corner and align the adjoining runs.
FEATURES AND BENEFITS
Finish the 135° panel junction
Defined connecting section
The internal webs and projecting legs locate the matching panel edges along the corner, helping the adjoining runs meet consistently.
APPLICATIONS
Where it is used
135° panel partition corners
Join panel runs at an obtuse external corner where the panel-edge detail is designed to receive this profile.
INSTALLATION AND SELECTION
Match the angle and panel edges
Corner angle and section fit

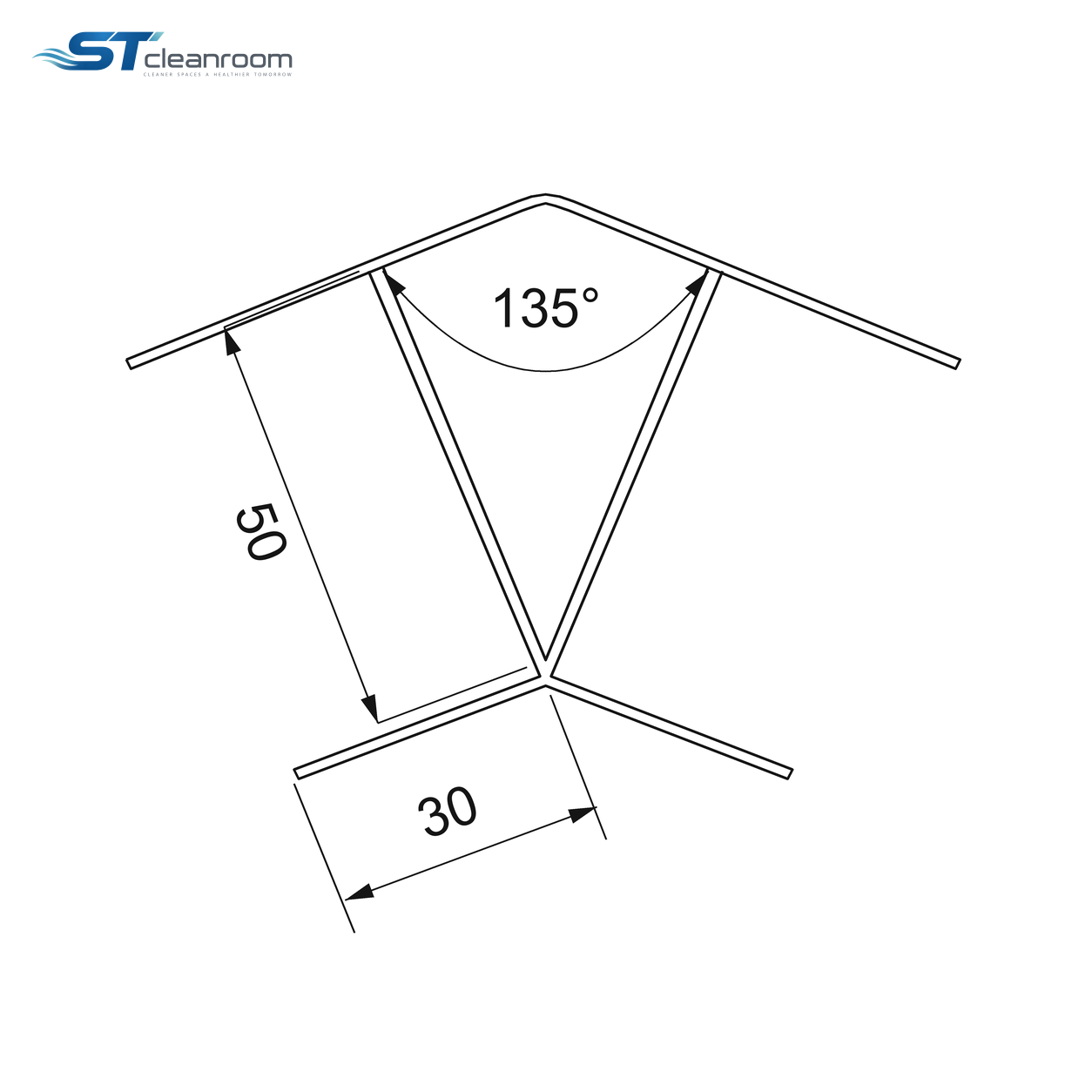

Match the 135° corner angle and the connecting section in the dimension drawing to the actual panel junction.
End finishing
Cut to the installed corner height and coordinate the profile ends with the adjoining floor, ceiling and opening trims.
FAQ
Common questions
What does 135° describe?
It is the corner angle shown in the section drawing, used to match the adjoining panel runs.
