Adjustment during installation
The adjustable base detail helps bring adjoining wall panels into alignment before they are secured.
PRODUCT GALLERYST
Product view
Cleanroom Accessories
Adjustable U-Shaped Base
Product specifications
| Brand | ST |
|---|---|
| Model | ST-XC-5017 |
| Application | Wall panel fixing with an adjustable U-channel |
| Thickness | 1.2 mm |
| Length | 6 m per piece |
| Surface treatment | Anodizing / fluorocarbon spraying / electrophoretic coating |
| Tensile strength | ≥175 MPa |
| Proof strength | ≥130 MPa |
| Coating indentation resistance | ≥80 |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Adjustable U-Shaped Base locates the lower edge of a wall panel through mating profiles that allow adjustment during installation. The mating profiles allow the base position to be adjusted during installation, helping align the panel along the wall run before final fixing.
The assembly combines a hollow profile with a projecting tongue and a separate open U-channel. The channel guides the panel base, while the adjoining profile provides the connection detail needed to set its position.
FEATURES AND BENEFITS
Set the wall panel base position
Guided panel edge
The U-channel provides a continuous location for the panel edge, helping maintain the planned wall line.
APPLICATIONS
Where it is used
Wall panel bases
Use at the lower edge of panel walls where the channel position needs to be adjusted to suit the installation line.
INSTALLATION AND SELECTION
Match the two profile sections
Panel and channel fit
Match the panel edge to the U-channel opening and use the two section drawings to coordinate the mating profiles.
Final fixing
Set the base position and align the wall panels before completing the fixing detail for the supporting surface.
FAQ
Common questions
What does the adjustable base do?
It allows the U-channel position to be set during wall panel installation, so the panel base can be aligned before final fixing.

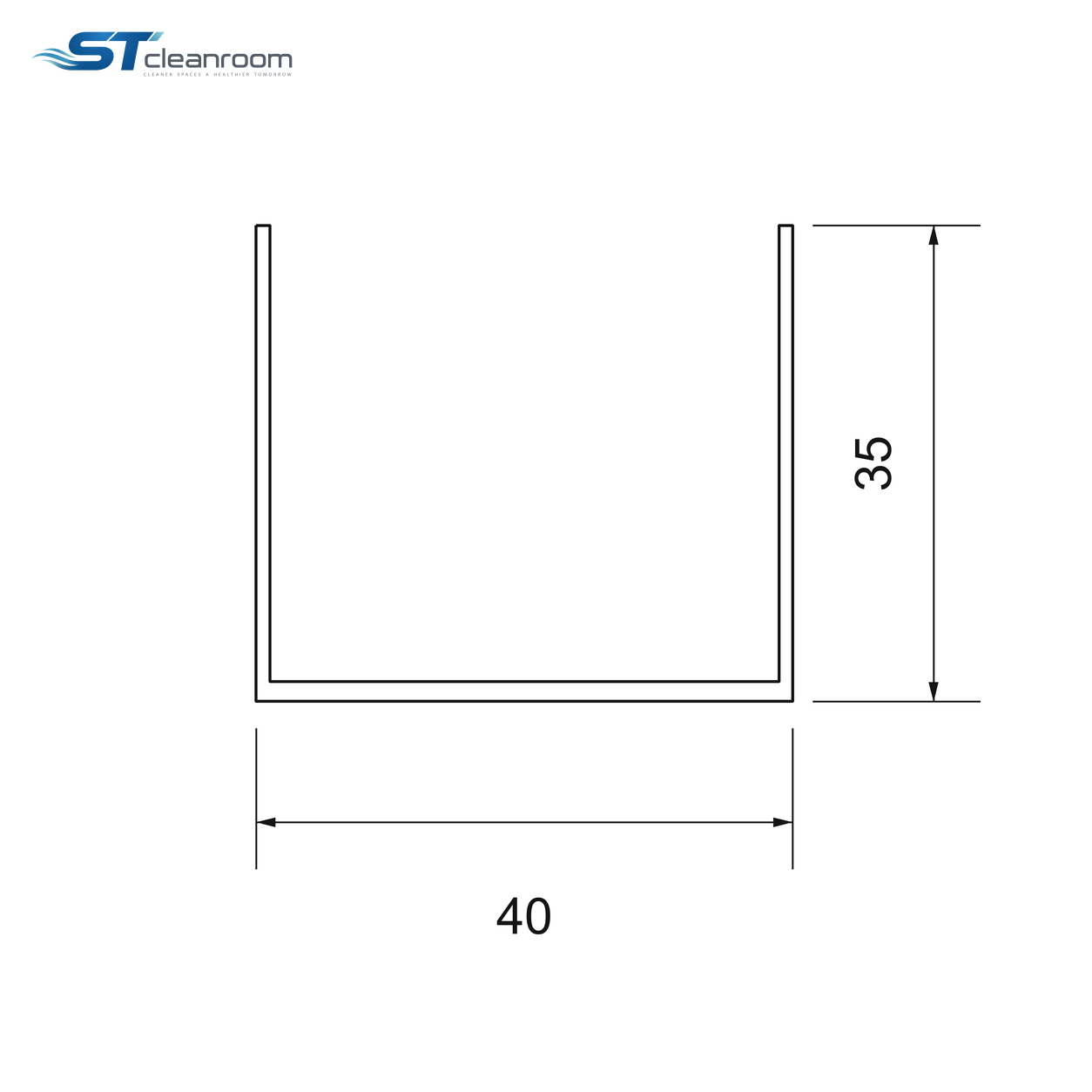

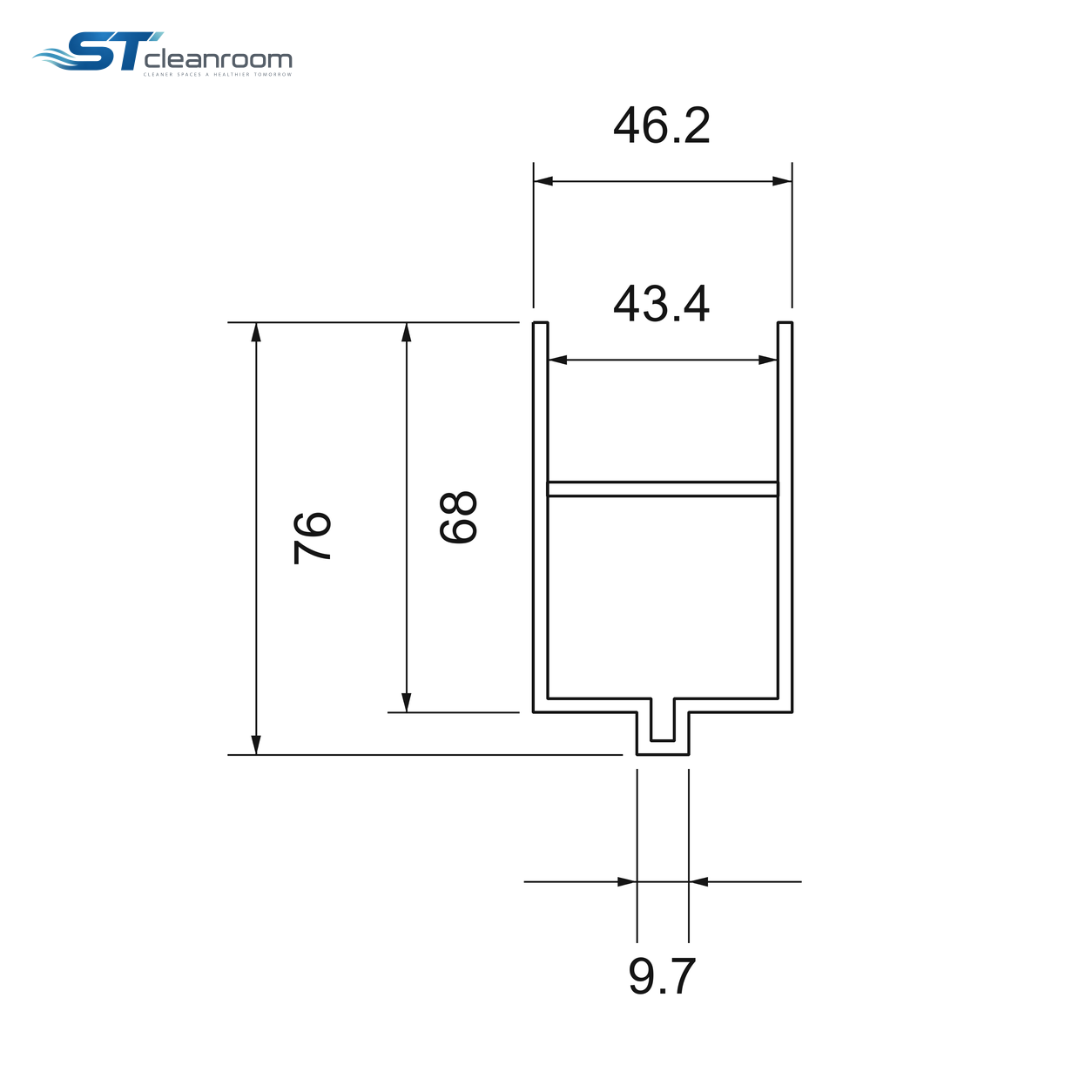

Why are there two section drawings?
They show the hollow profile with its projecting tongue and the separate U-channel used in the base arrangement.
