600 × 400 × 850 mm
The smallest listed trolley has a 350 kg load capacity and 3-inch castors, providing a compact footprint for restricted routes.
PRODUCT GALLERYST
Product view
Cleanroom Metal Products
Stainless Steel Platform Trolleys
Product specifications
| Brand | ST |
|---|---|
| Product type | Manually operated platform trolley |
| Material and finish options | 201 stainless steel; 304 stainless steel; clean-finish 304 stainless steel |
| Platform | Solid stainless steel deck with raised perimeter edges |
| Handle | Tubular push handle with crossbar |
| Caster arrangement | Two swivel casters and two fixed casters |
| Caster feature | Low-noise wheels |
| Customisation | Overall dimensions |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Stainless Steel Platform Trolleys carry cartons, trays and supply containers together between storage and work areas. The open deck is accessible from three sides, while raised edges help keep suitable containers within the platform during movement.
A tubular push handle and two swivel casters make steering easier, while two fixed casters guide straight travel. The stainless steel deck is accessible for wiping down between tasks.
MODELS AND DIMENSIONS
Sizes and load capacities
| Overall dimensions (mm) | Handle diameter (mm) | Platform thickness (mm) | Load capacity (kg) | Caster diameter (in) |
|---|---|---|---|---|
| 600 × 400 × 850 | 25 | 25 | 350 | 3 |
| 700 × 480 × 900 | 25 | 30 | 400 | 4 |
| 850 × 560 × 950 | 32 | 30 | 450 | 4 |
| 1000 × 600 × 1000 | 32 | 40 | 550 | 5 |

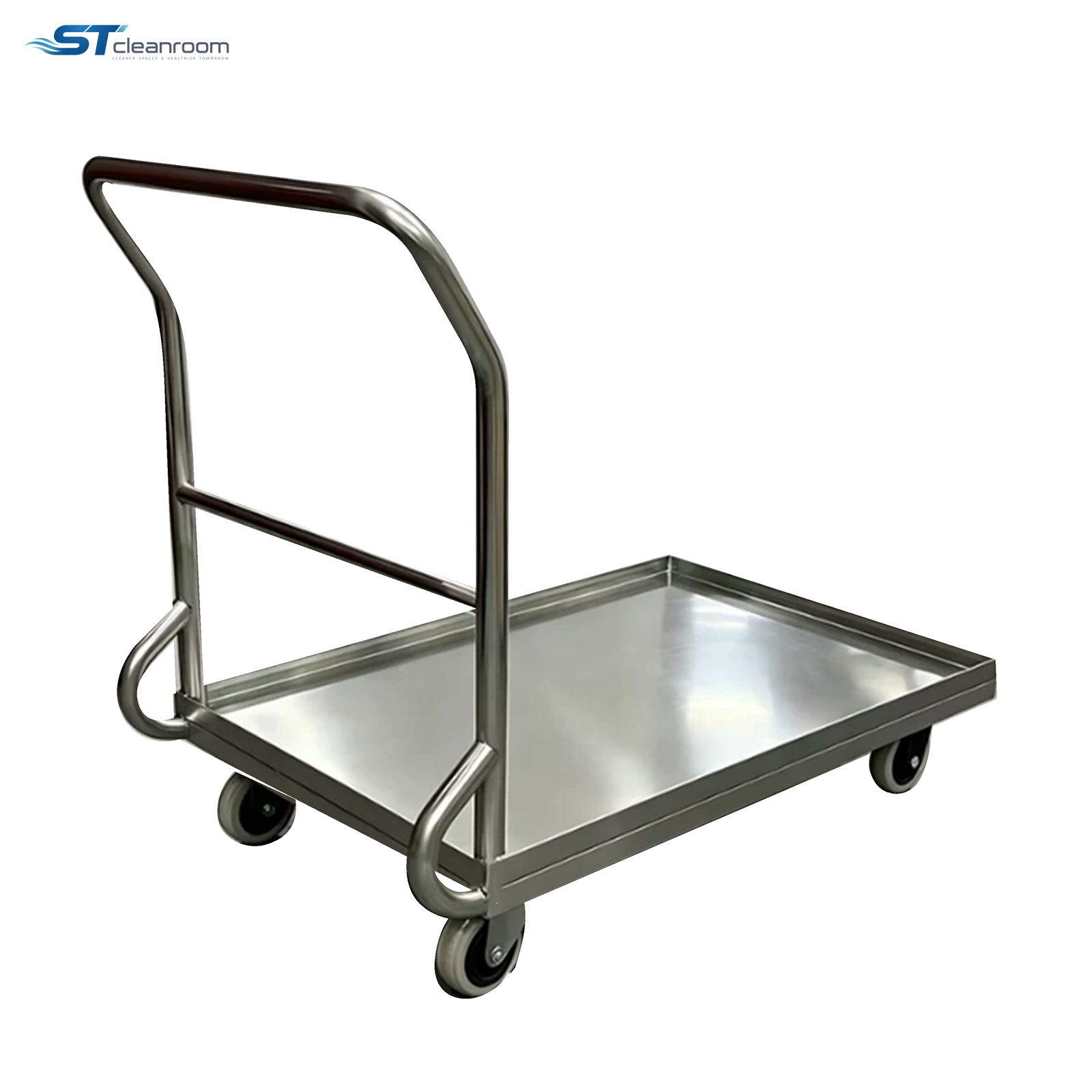

The illustrated trolley has four 4-inch wheels: two swivel and two fixed.
MODEL DIFFERENCES
Which configuration fits the task
700 × 480 × 900 mm
The deck footprint increases with a 400 kg rating and 4-inch castors, offering more container space than the compact version.
850 × 560 × 950 mm
This version provides a wider deck, a 450 kg rating and a 32 mm handle diameter for the larger trolley format.
1000 × 600 × 1000 mm
The largest listed trolley has a 550 kg rating and 5-inch castors. Its greater width and height need corresponding door and turning clearance.
APPLICATIONS
Keep materials moving between work areas
Cleanrooms
Move packaged materials between staging and production areas using a finish and caster configuration matched to the room's cleaning requirements.
Electronics factories
Carry trays and boxed components between stores, assembly stations and packing areas.
Operating rooms
Transfer enclosed supply containers between designated staging and use points under the room's cleaning procedure.
Laboratories
Move boxed equipment, sample-container racks and routine supplies between storage and workbenches.
TROLLEY FEATURES
Load, steer and clean with less handling
Open access to the load
The single platform provides room for larger containers without shelves above restricting access.
Steering and straight travel
Swivel casters help turn the trolley around corners; fixed casters keep it tracking along aisles.
Low-noise movement
Low-noise wheels help limit rolling noise during routine supply runs.
Accessible metal surfaces
The exposed deck and tubular frame can be reached for cleaning after unloading.
SIZE SELECTION
Fit the load and the route
Platform footprint
Choose enough deck space for the containers while keeping clearance through doorways and around workstations.
Load and caster size
Match the total load to the selected model and the wheels to the floors and thresholds along the route.
