1200 mm high panel
The lowest listed height forms a visible low boundary around an assigned area.
PRODUCT GALLERYST

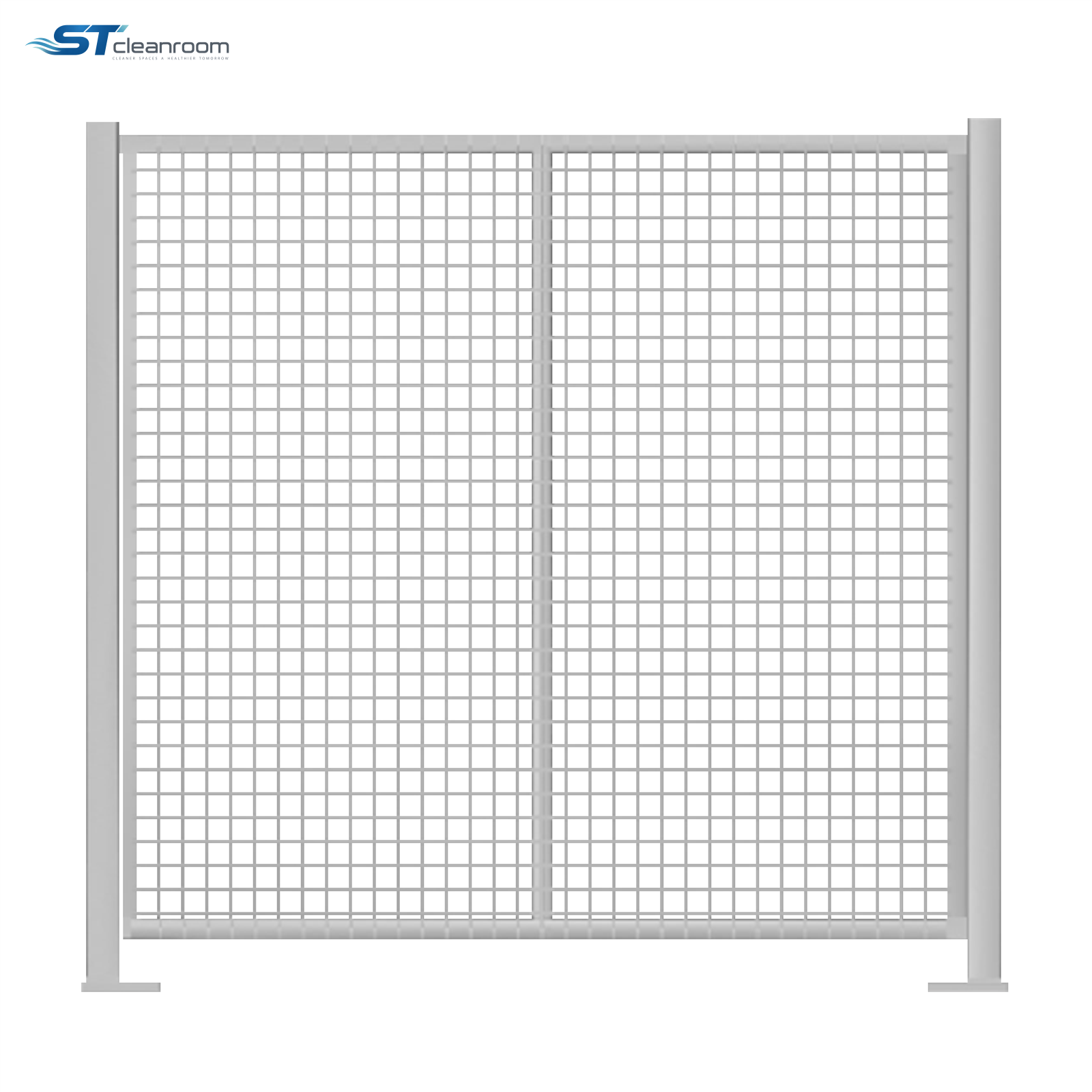

Product view
Cleanroom Metal Products
Stainless Steel Mesh Barriers
Product specifications
| Brand | ST |
|---|---|
| Product type | Mesh partition and isolation barrier |
| Material | Stainless steel |
| Colour | Natural stainless steel |
| Standard mesh options | Square mesh / close mesh |
| Additional custom designs | Bent panels / diamond mesh |
| Frame | Framed mesh panel with upright posts |
| Mesh construction | Reinforced wire with uniform openings and a smooth finish |
| Base plates | Thickened plates with mounting holes |
| Installation | Floor-mounted with base-plate fixings |
| Warranty | 10 years |
| Customisation | Panel dimensions and design |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Stainless Steel Mesh Barriers form a physical boundary around equipment, stored goods or designated work zones while keeping the area visible. The mesh allows staff to see activity beyond the panel and follow the planned route around the enclosure.
A stainless steel frame supports the mesh panel, and reinforced base plates provide mounting points for floor anchoring. Square-mesh and close-mesh panels suit different layouts; bent and diamond-mesh designs are available to order.
MODELS AND DIMENSIONS
Panel sizes and mesh options
| Mesh design | Length (mm) | Height (mm) |
|---|---|---|
| Square mesh | 2000 | 1200 |
| Square mesh | 2000 | 1500 |
| Square mesh | 2000 | 1800 |
| Square mesh | 2000 | 2000 |
| Close mesh | 2000 | 1200 |
| Close mesh | 2000 | 1500 |
| Close mesh | 2000 | 1800 |
| Close mesh | 2000 | 2000 |
Bent panels and diamond-mesh panels are available in custom dimensions.
MODEL DIFFERENCES
Which configuration fits the task
1500 mm high panel
The extra height changes the separation while retaining the same 2000 mm panel length.
1800 mm high panel
A taller boundary can define a fuller enclosure around storage or equipment zones.
2000 mm high panel
The tallest listed height reaches the greatest vertical extent within the standard series.
Square mesh and close mesh
Both patterns are offered at every listed height; select the opening pattern around visibility and the required physical separation, with custom bent panels for corners.
APPLICATIONS
Give each work area a clear boundary
Clean production rooms
Define equipment perimeters and storage zones where open mesh is appropriate and the frame, mesh and fixings suit the room's cleaning routine.
Factory workshops
Separate designated equipment and work areas from neighbouring routes while keeping operations visible.
Warehouses
Enclose assigned storage zones and distinguish them from picking and walking routes.
Industrial roads and walkways
Mark pedestrian paths and restricted areas within industrial sites.
Power facilities
Define equipment and service zones as part of the site's planned access layout.
BARRIER FEATURES
A visible boundary with a secure mounting base
See through the boundary
Open mesh allows staff to see goods and activity beyond the panel during routine checks.
Reinforced floor mounting
Thickened base plates spread the mounting points around each post and provide holes for anchoring the barrier.
Smooth stainless steel mesh
Uniform openings and smooth wire surfaces keep the panel orderly and accessible for routine cleaning.
LAYOUT OPTIONS
Fit the panel to the boundary
Height and mesh design
Choose the panel height and opening pattern around the area being separated and the access it needs.
Corners and changes of direction
Custom bent panels help the barrier follow the planned layout around equipment and storage areas.
Floor fixing positions
Arrange base plates and access openings around the available floor space and service routes.
