0.75 kW configuration
The smallest cartridge cabinet fits a compact local extraction arrangement and uses the listed single operating duty.
PRODUCT GALLERYST

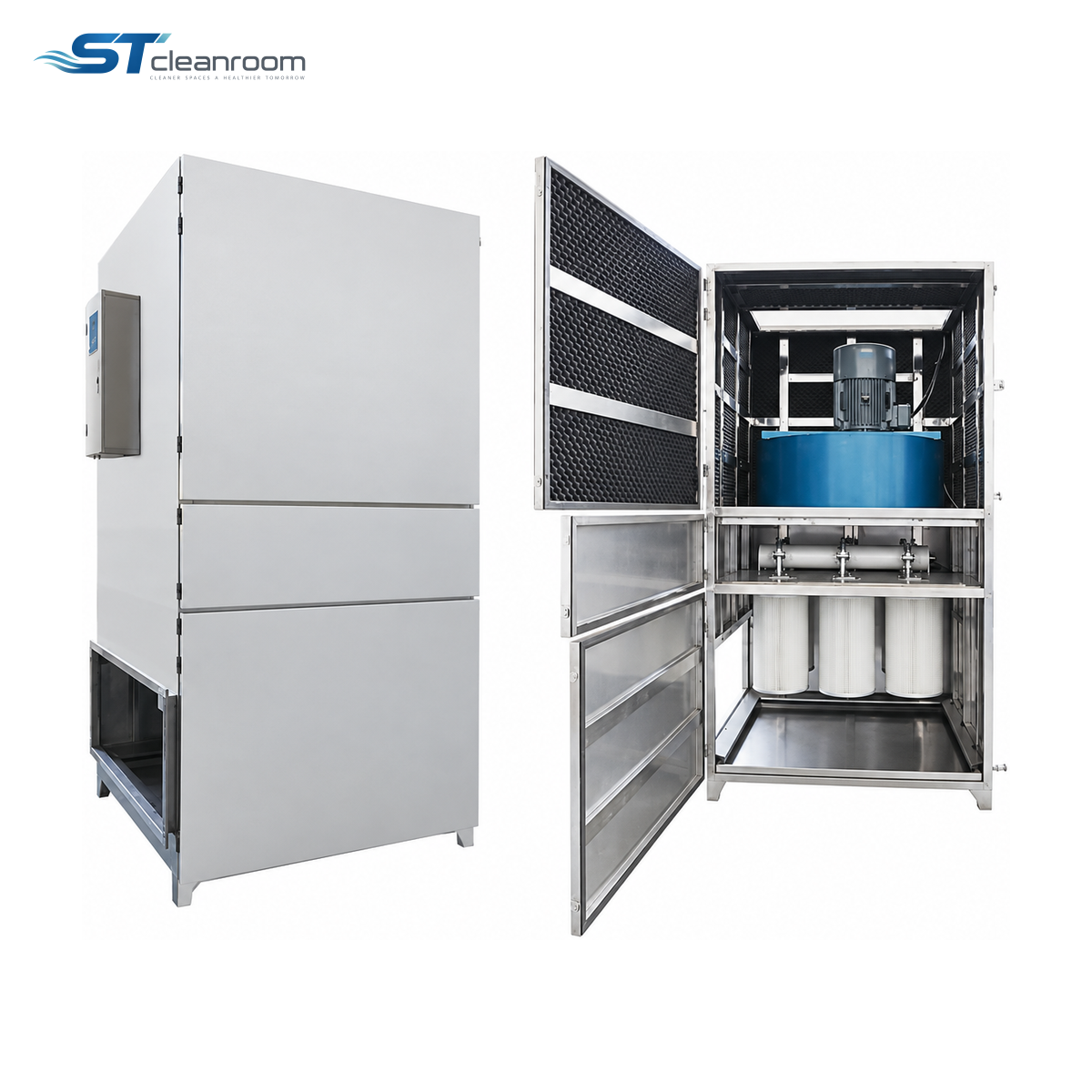

Product view
Cleanroom HVAC Units
Single-Unit Cartridge Dust Collector
Product specifications
| Brand | ST |
|---|---|
| Filter format | Filter cartridges |
| Cleaning | Compressed-air pulse cleaning with reservoir and solenoid valves |
| Power range | 0.75–15 kW |
| Arrangement | Integrated fan, filter and collection cabinet |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Single-Unit Cartridge Dust Collector captures dry process dust on cartridge filters inside an enclosed extraction cabinet. Its pulse-cleaning system releases dust from the media so the collection surfaces can be reused through the operating cycle.
An air reservoir and solenoid valves deliver the cleaning pulses. This configuration is useful where the process calls for pulse cleaning and the site has a suitable compressed-air supply.
MODELS AND DIMENSIONS
Available configurations
| Power (kW) | Filtration velocity | Airflow (m³/h) | Pressure (Pa) | Overall dimensions (mm) | Inlet (mm) | Outlet (mm) |
|---|---|---|---|---|---|---|
| 0.75 | 2.33 | 1200 | 1210 | 600 × 600 × 1500 | Ø200 | 250 × 200 |
| 1.1 | 2.62 | 1600–1800 | 860–520 | 650 × 650 × 1600 | Ø200 | 250 × 200 |
| 1.5 | 2.66 | 1131–2356 | 994–606 | 750 × 750 × 1650 | Ø200 | 320 × 200 |
| 2.2 | 3.05 | 1688–3517 | 1300–792 | 800 × 800 × 1700 | Ø250 | 320 × 250 |
| 3 | 3.3 | 2664–5268 | 1578–989 | 850 × 850 × 1750 | Ø300 | 400 × 320 |
| 4 | 3.48 | 2750–5350 | 1620–1100 | 850 × 850 × 1800 | Ø300 | 400 × 320 |
| 5.5 | 3.49 | 4012–7419 | 2014–1320 | 950 × 950 × 2000 | Ø350 | 500 × 400 |
| 7.5 | 3.53 | 5712–10562 | 2554–1673 | 1050 × 1050 × 2050 | Ø350 | 500 × 400 |
| 11 | 4.8 | 7528–13800 | 3000–1988 | 1250 × 1250 × 2450 | Ø500 | 630 × 400 |
| 15 | 5.1 | 7728–15455 | 3187–2019 | 1250 × 1250 × 2550 | Ø500 | 630 × 400 |
Custom configurations are available.
MODEL DIFFERENCES
Which configuration fits the task
1.1 kW configuration
The taller cabinet keeps the small inlet and outlet arrangement while providing its own airflow/pressure range.
1.5 kW configuration
The outlet becomes larger even though the inlet stays at 200 mm; coordinate both sides of the unit with the duct route.
2.2 kW configuration
This version moves to a 250 mm inlet and larger cabinet, so it suits a different connection layout from the smaller units.
3 kW configuration
The 300 mm inlet and enlarged outlet accommodate a wider branch; select the working point within the listed range.
4 kW configuration
Compared with the 3 kW version, the footprint and connections remain the same but height and pressure duty differ.
5.5 kW configuration
The 350 mm inlet and larger enclosure require extra installation space and room to service the pulse-cleaning equipment.
7.5 kW configuration
The inlet remains 350 mm while the cabinet and operating range increase; choose this only where the process duty calls for that combination.
11 kW configuration
The larger 500 mm inlet and cabinet footprint are intended for a different duct scale from the intermediate units.
15 kW configuration
This is the tallest unit in the table, sharing the large inlet with the 11 kW version but requiring selection against its separate flow/pressure range.
FEATURES AND BENEFITS
How it helps
Cartridge service
Access through the cabinet allows the filter assemblies to be inspected and replaced without dismantling the connected extraction route.
Pulse cleaning
Short bursts from the air reservoir dislodge the collected layer; reliable air supply and valve operation are part of routine upkeep.
APPLICATIONS
Where it is used
Machine and process extraction
Collect compatible dry dust through a connected pickup hood or machine port before it disperses into the room.
SELECTION GUIDANCE
Choosing the configuration
Process and utilities
Match the dust characteristics, airflow and pressure duty together with the pulse-air supply and collection method.
Access space
Allow clearance for cartridge removal, valves and dust collection when positioning the cabinet.
