0.75 kW configuration
The smallest cabinet suits a compact installation with the listed single airflow and pressure duty.
PRODUCT GALLERYST

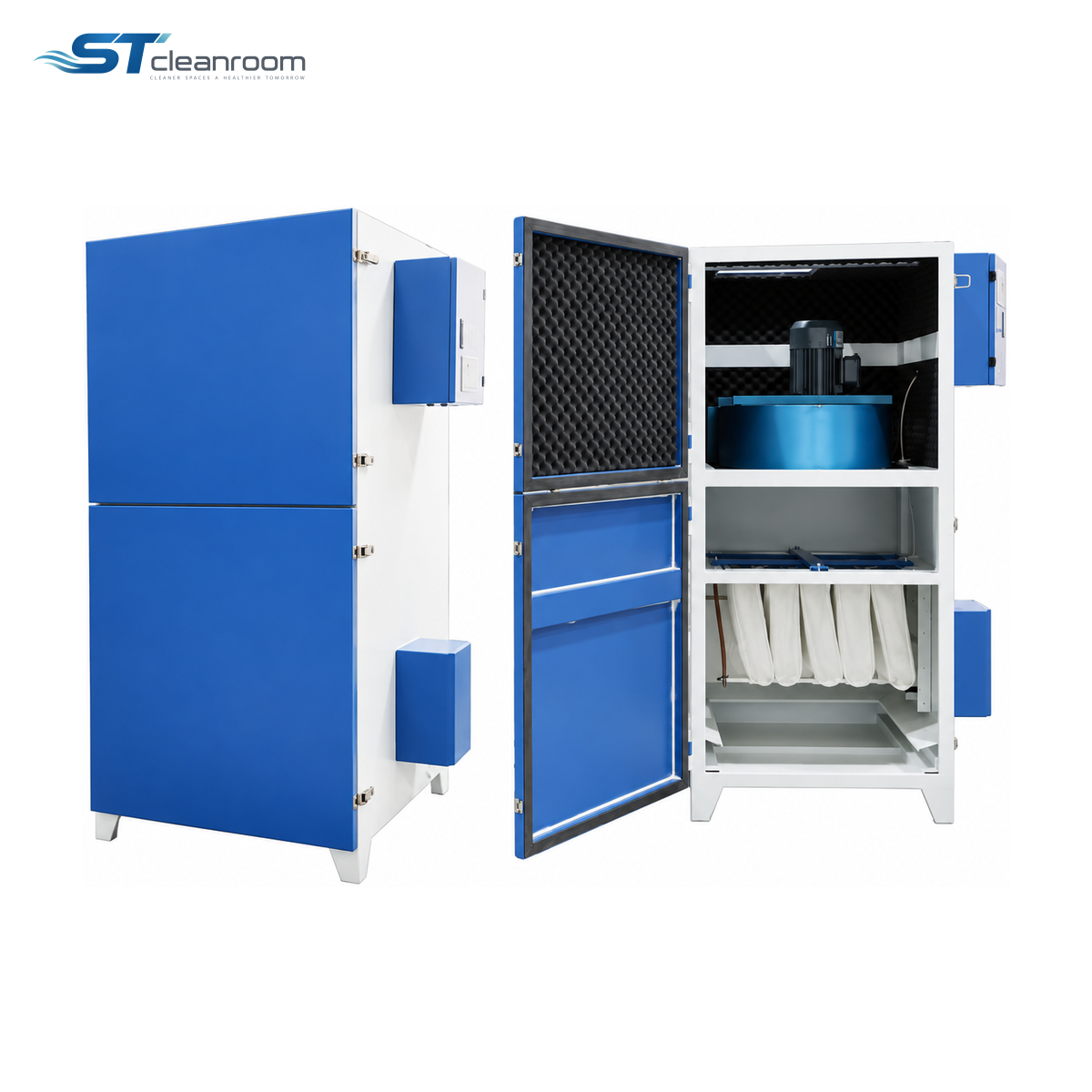

Product view
Cleanroom HVAC Units
Single-Unit Bag Dust Collector
Product specifications
| Brand | ST |
|---|---|
| Filter format | Fabric bags |
| Cleaning | Motor-driven mechanical shaking |
| Power range | 0.75–15 kW |
| Arrangement | Integrated fan, filter and collection cabinet |
Customization availableSpecifications can be customized to your requirements.
Request a quotation
Specify the quantity and configuration in your inquiry.
Single-Unit Bag Dust Collector captures compatible dry process dust in fabric bags close to the extraction task. The integrated fan and cabinet gather the dust into an accessible collection section, limiting its spread around the workstation.
Motor-driven shaking loosens the dust layer from the bags during the cleaning sequence. This arrangement suits a process that can accommodate the required cleaning pauses without relying on a compressed-air pulse circuit.
MODELS AND DIMENSIONS
Available configurations
| Power (kW) | Filtration velocity | Airflow (m³/h) | Pressure (Pa) | Overall dimensions (mm) | Inlet (mm) | Outlet (mm) |
|---|---|---|---|---|---|---|
| 0.75 | 2.33 | 1200 | 1210 | 600 × 600 × 1500 | Ø200 | 250 × 200 |
| 1.1 | 2.62 | 1600–1800 | 860–520 | 650 × 650 × 1600 | Ø200 | 250 × 200 |
| 1.5 | 2.66 | 1131–2356 | 994–606 | 750 × 750 × 1650 | Ø200 | 320 × 200 |
| 2.2 | 3.05 | 1688–3517 | 1300–792 | 800 × 800 × 1700 | Ø250 | 320 × 250 |
| 3 | 3.3 | 2664–5268 | 1578–989 | 850 × 850 × 1750 | Ø300 | 400 × 320 |
| 4 | 3.48 | 2750–5350 | 1620–1100 | 850 × 850 × 1800 | Ø300 | 400 × 320 |
| 5.5 | 3.49 | 4012–7419 | 2014–1320 | 950 × 950 × 2000 | Ø350 | 500 × 400 |
| 7.5 | 3.53 | 5712–10562 | 2554–1673 | 1050 × 1050 × 2050 | Ø350 | 500 × 400 |
| 11 | 4.8 | 7528–13800 | 3000–1988 | 1250 × 1250 × 2450 | Ø500 | 630 × 400 |
| 15 | 5.1 | 7728–15455 | 3187–2019 | 1250 × 1250 × 2550 | Ø500 | 630 × 400 |
Custom configurations are available.
MODEL DIFFERENCES
Which configuration fits the task
1.1 kW configuration
This version retains the 200 mm inlet while using a taller, wider cabinet; its narrower airflow range suits a different duty from the 1.5 kW option.
1.5 kW configuration
The broader listed operating range requires selection against the actual pressure at the pickup point, and the outlet is larger than on the two smallest units.
2.2 kW configuration
The inlet increases to 250 mm, so this version needs a different branch connection as well as more cabinet space.
3 kW configuration
The 300 mm inlet and wider outlet mark a step in duct size for the associated extraction route.
4 kW configuration
This option keeps the preceding footprint and inlet but adds height and a different pressure/airflow pairing; compare the fan duty when floor space is fixed.
5.5 kW configuration
The inlet increases to 350 mm and the larger cabinet calls for more space around bag and dust-collection access.
7.5 kW configuration
The 350 mm inlet is retained while the available duty and cabinet footprint grow, useful to compare where the same inlet size is planned.
11 kW configuration
The 500 mm inlet and largest footprint require a substantially larger branch and installation area.
15 kW configuration
This uses the same inlet and footprint as the 11 kW unit but is taller and has a different operating range; it needs its own complete duty selection.
FEATURES AND BENEFITS
How it helps
Fabric-bag collection
Air passes through the bag surfaces while collected dust remains inside the cabinet for controlled removal.
Mechanical shaking
The motor moves the bags to release accumulated dust, making the cleaning sequence distinct from a pulse-air cartridge collector.
APPLICATIONS
Where it is used
Local dry-process extraction
Connect a suitable hood or machine extraction point so dust is collected near its source.
SELECTION GUIDANCE
Choosing the configuration
Select the working duty
Compare airflow together with available pressure at the required operating point, then match the inlet and outlet to the duct; motor power alone does not size an extraction system.
Collection access
Leave room for bag service and removal of accumulated dust as part of the operating schedule.
